Unjamming a X-ACTO Mighty Mite 19501X

ID: 142128

Description: A helpful guide for anyone that owns an X-ACTO...

Steps:

1. Remove the shavings container.
2. Remove the two 2mm Phillips screws inside with a Phillips #0 screwdriver.

3. Flip the pencil sharpener to expose the bottom.
4. Use a pair of tweezers to remove the two round pads facing the back of the sharpener.
5. Remove the two 1.5 mm Phillips screws with a Phillips #0 screwdriver.

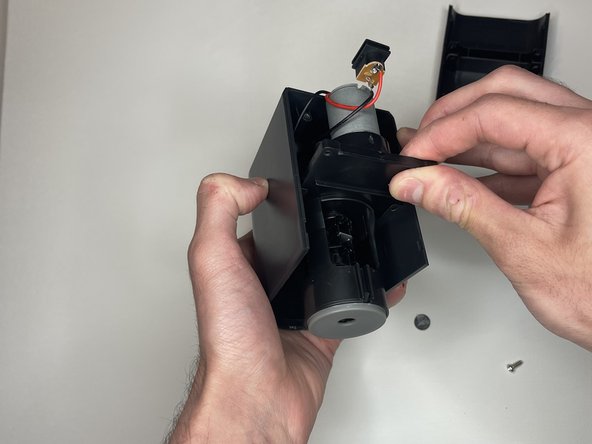

6. Pull the sharpener apart, exposing the internal components.

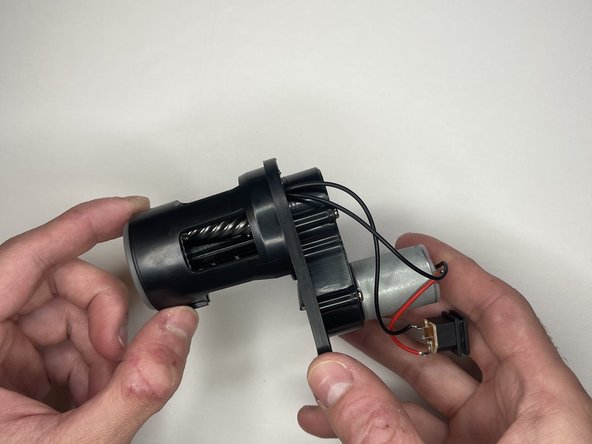

7. Remove the four 1 mm Phillips screws beside the motor with a Phillips #0 screwdriver.

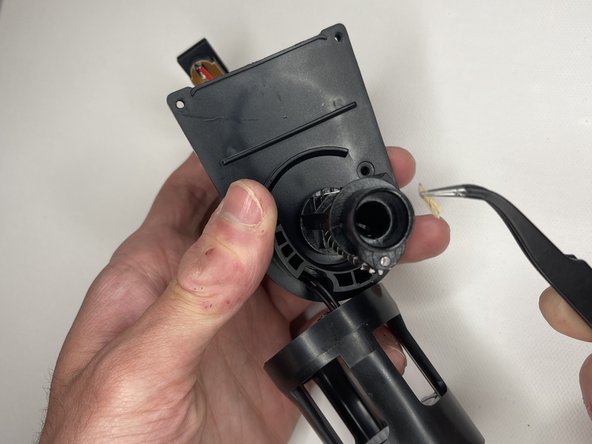

8. Lift the protective case, revealing the sharpener blades.

9. Remove any debris or wood shavings from the blades with your tweezers.
