D-Link dir-645 Disassembly

ID: 142139

Description:

Steps:

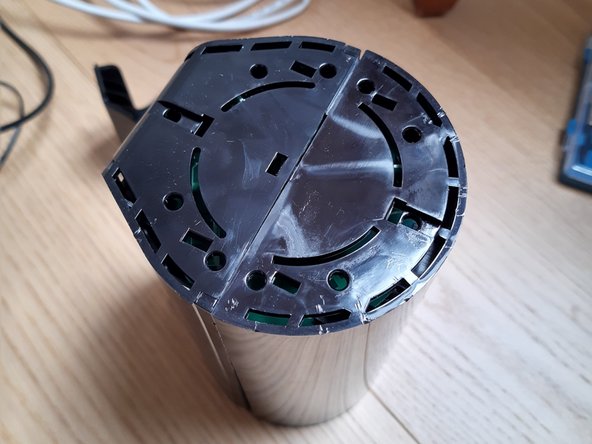

1. Pry off the top using a plastic pryer

2. Bottom: unscrew the two philips screws . Note: this probably voids any warranty

3. Carefully pry off the bottom plastic

4. Start to pry at the bottom.
5. Work your way around until it comes off.

6. The inside consists of the main board ant the antenna, that's it.
7. The 360 deg antenna is connected to the main board with Hirose U.FL connectors and can be easily removed. https://en.wikipedia.org/wiki/Hirose_U.F...
