8BitDo NES30 Pro Gamepad Button Replacement

ID: 142183

Description: Use this guide to take the 8BitDo NES30 Pro...

Steps:

1. Hold the controller with its back facing towards you.
2. Insert an opening pick between the L1 or R1 button and the backplate, and pry the backplate off of the controller.

3. Place the controller face down on a solid surface.
4. Remove the seven screws with the Phillips #00 screwdriver.

5. Lift the body of the controller up and away from the controller's face and buttons.

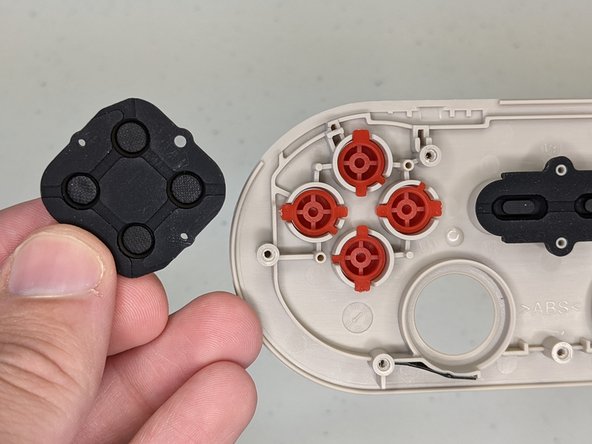

6. Lift away the black rubber pads that sit between the face buttons and body of the controller.

7. Lift the buttons out of the face of the controller.

8. Align the notches of the face buttons to put them back into place.
9. Each button has a unique notch pattern so it can't be replaced incorrectly.
10. Attach the rubber pads by placing their smaller and larger holes around the matching size pegs.
