2005 Mustang GT Serpentine Belt Tensioner Replacement

ID: 142256

Description: This guide will help you to replace a bad...

Steps:

1. To open the hood, pull the hood latch located on the left side of the driver's foot well.

2. Push a lever (located just above the horse in the grill) to the left.
3. Lift the hood up, pull the prop out, and insert it into the hole on the hood labeled "prop."

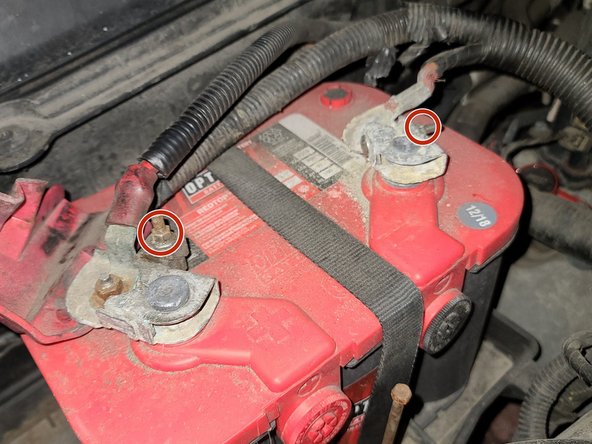

4. Disconnect the battery using an 8 mm socket and 3/8 inch drive ratchet.

5. Loosen the band clamp on the throttle body with a flathead screwdriver.

6. Loosen the band clamp on the air filter or airbox.

7. Pull the intake tube back and to the left to remove it from the throttle body and airbox.
8. Place the intake tube out of the way

9. Make note of the orientation that the serpentine belt runs. If the tensioner is broken, and the belt is no longer on, refer to a diagram for the vehicle. If still attached, release tension on the belt using a 1/2 inch breaker bar turned in the clockwise direction and remove it.

10. Remove the three 10 mm bolts with your 3/8 drive and 10 mm socket.
11. Remove the tensioner.

12. Install the new tensioner and torque the bolts to 20ft lbs. then using the breaker bar turn clockwise to allow the reinstallation of the belt.
13. Using the breaker bar, turn clockwise to allow the reinstallation of the belt.

14. Make sure all the grooves of the pullies are seated in the belt correctly, then release the tensioner to seat the belt.
