Xiaomi Redmi Note 7 Battery Replacement

ID: 142599

Description: Use this guide to replace a worn-out or dead...

Apply a heated iOpener to the rear glass to loosen the adhesive underneath. Apply the iOpener for at least two minutes.

Secure a suction handle to the bottom edge of the rear glass, as close to the edge as possible.
If your rear glass is badly cracked, covering it with a layer of clear packing tape may allow the suction cup to adhere. Alternatively, very strong tape may be used instead of the suction cup. If all else fails, you can superglue the suction cup to the rear glass.
Lift the rear glass with the suction handle to create a small gap between the glass and the frame.
In case you have trouble creating a gap, apply more heat to further soften the adhesive. Follow the iOpener instructions to avoid overheating.
Insert an opening pick into the gap.
Slide the opening pick to the bottom right corner to slice the adhesive.

Insert a second opening pick and slide it to the bottom left corner to slice the adhesive.
Leave the opening picks in place to prevent the adhesive from resealing.

If the adhesive becomes hard to cut, it has most likely cooled down. Use your iOpener to reheat it.
Insert a third opening pick at the bottom left corner.
Slide the opening pick along the left edge of the phone to slice the rear glass adhesive.
Leave the opening pick in its place at the top left corner to prevent the adhesive from resealing.

Insert a fourth opening pick under the top left corner of the rear glass.
Slide the opening pick along the top edge of the phone to slice the rear glass adhesive.
Leave the opening pick in the top right corner to prevent the adhesive from resealing.

Insert a fifth opening pick at the top right corner of the phone.
Slide the opening pick along the right edge to slice the remaining adhesive.
Don't try to remove the rear glass all the way yet. The fingerprint sensor is still connected to the motherboard.

Carefully fold the rear glass to the left side of the phone assembly like you'd open the front cover of a book.
Avoid tensioning the fingerprint flex cable during this process.

Use a Phillips screw driver to remove the three 3.3 mm-long screws securing the connector cover to the midframe.

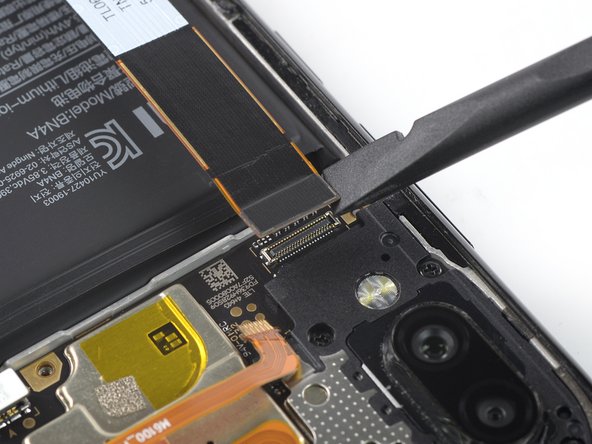

Use the flat end of a spudger to pry up and disconnect the battery flex cable from the motherboard.

For easier handling during repairs we highly recommend to separate the back cover including the fingerprint sensor from the phone assembly.
Use a pair of tweezers to carefully peel the yellow protective foil off the ZIF connector.

Use the pointed end of a spudger to open the ZIF connector by bringing its black flap in an upright position.

Disconnect the fingerprint flex cable by pulling it straight out off the ZIF connector using a pair of tweezers.

Use a Phillips screw driver to remove the eight 3.3 mm-long screws securing the loudspeaker assembly.

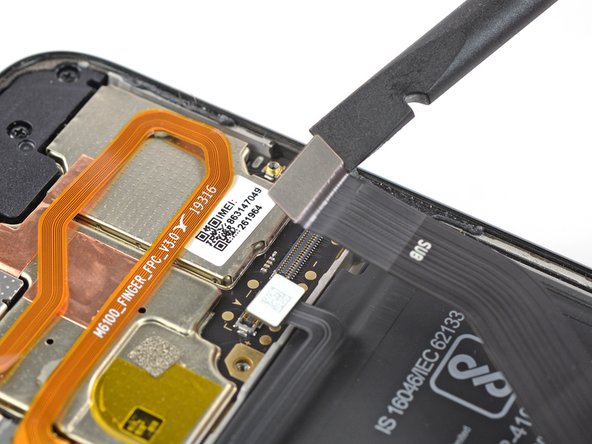

Use a Phillips screw driver to remove the 3.3 mm-long screw securing the display connector cover to the midframe.

Fold the display flex cable towards the bottom edge of the phone and secure it to your working surface with a small piece of tape.
Take care not to puncture or bend the battery with your tool in the following steps —a punctured or bent battery may leak dangerous chemicals or cause a thermal event.

Use a pair of blunt nose tweezers to peel the black colored end of the left pull tab off the battery.
Grab the pull tab with your tweezers and slowly pull it away from the battery, toward the bottom of the Redmi Note 7.
Pull hard enough to maintain tension on the strip, but don't force it. Give it plenty of time to stretch and detach from the battery.
Don't press down on the battery. Hold the Redmi Note 7 firmly by its sides.
Keep the strip flat and unwrinkled. Try to pull evenly on the whole strip, rather than pulling mainly in the middle or on one side.
Pull at a low angle so the strip doesn't snag on the edge of the battery.
A good way to get this done is to pull out the adhesive strip about 3 cm and then roll it up on your tweezers.
If the adhesive strip breaks off, try to retrieve it using your fingers or blunt tweezers, and continue pulling—but do not pry under the battery.

Use a pair of blunt nose tweezers to peel the black colored end of the right pull tab off the battery.
Grab the pull tab with your tweezers and slowly pull it away from the battery, toward the bottom of the Redmi Note 7.
