Free Wheelchair Mission GEN 1 Rear Wheel Axle Replacement

ID: 14303

Description: The rear wheel axle holds the rear wheels to...

Steps:

1. Attach the 19mm socket wrench to the head of the bolt in the middle of the wheel
2. With the other hand use the 19mm crescent wrench to hold the nut in place
3. While holding the 19mm crescent wrench in place, use socket wrench to unscrew the bolt
4. The Free Wheelchair Mission Multi-Purpose Tool can be used in place of the 19mm socket wrench
5. Remove the wheel from the axle

6. Unscrew the nut holding the bolt and wheel together using your hands.
7. It might be necessary to loosen the nut with a 19 mm crescent wrench and the multi purpose tool
8. Repeat step on other wheel
9. Make sure to keep all corresponding nuts and bolts together to prevent mixup when reassembling the axle

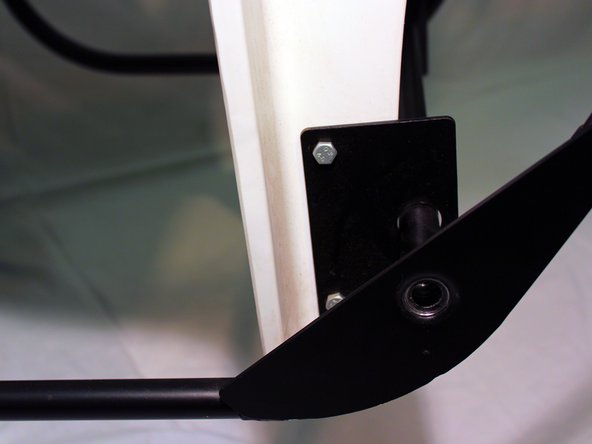

10. Locate the two baseplates on the back of the wheelchair holding the axle in place

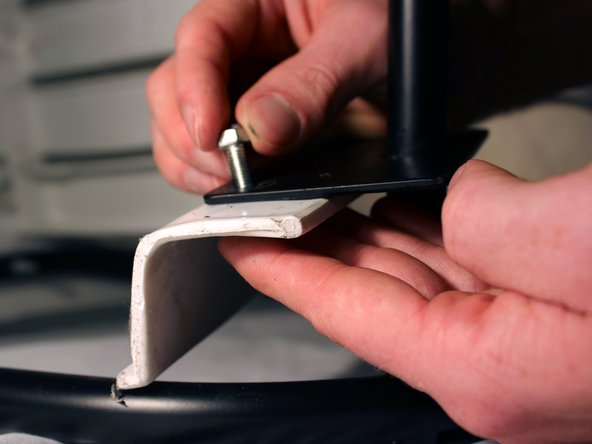

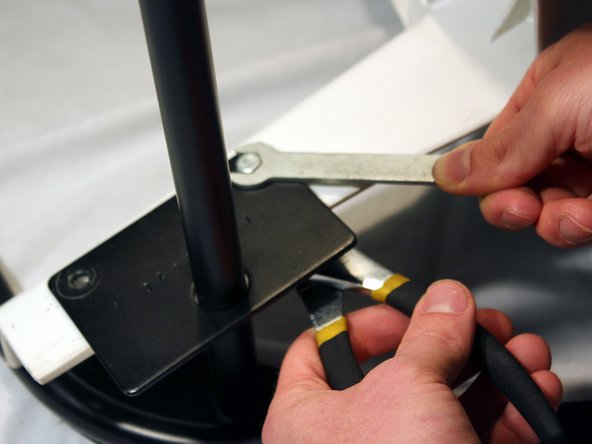

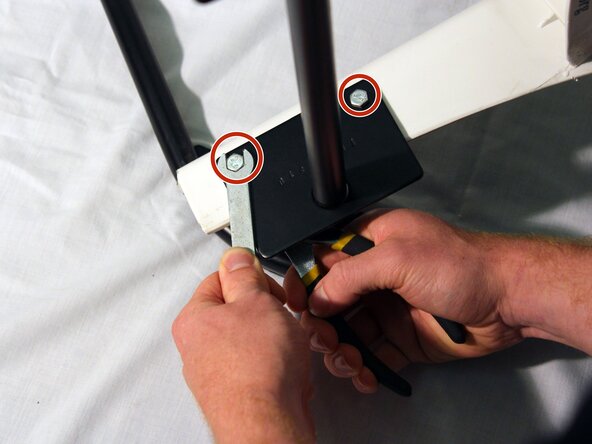

11. Using the pliers to hold the bolt in place, use the 10mm wrench to remove one bolt from the baseplate.
12. Repeat above step on second bolt
13. Repeat the process on the other baseplate, once one baseplate is loose from the chair and frame,

14. Once both baseplates are loosened from the chair, pull the axle off from the wheelchair
15. The axle should come off easily

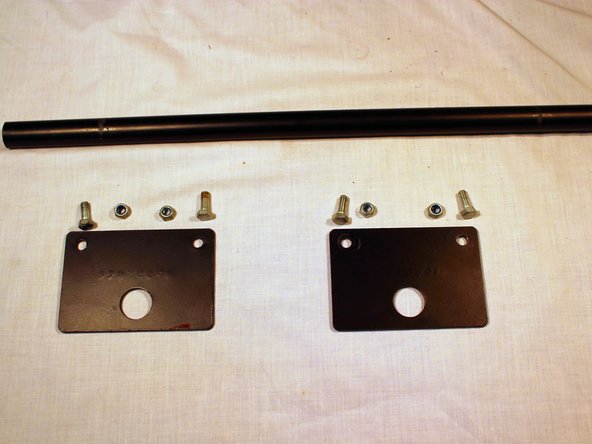

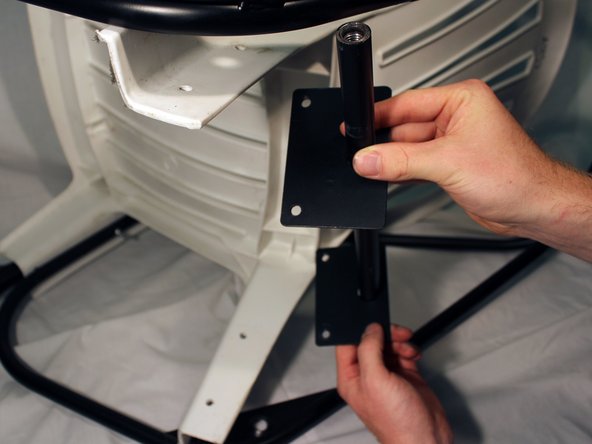

16. Slide the baseplates off of the axle
