Sanyo SCP-8100 Speaker Replacement

ID: 14436

Description: In order to install the speaker for the Sanyo...

Steps:

1. Push and hold the button on the back toward the direction of the arrow to unlock the battery.
2. Lift and remove the battery from the back of the phone.

3. Using a push pin, pull out the plug on the back, located under the antenna.
4. You may try to use a spudger or opening tool, however, you may damage the plug because those tools are too thick.

5. Unscrew the four 6mm long screws with a Tri-Wing Y1 screwdriver.

6. Use a plastic opening tool to pry the back panel along the edges.
7. You may need to apply some force when prying.

8. While removing the back panel, take out the rubber cover on each side.

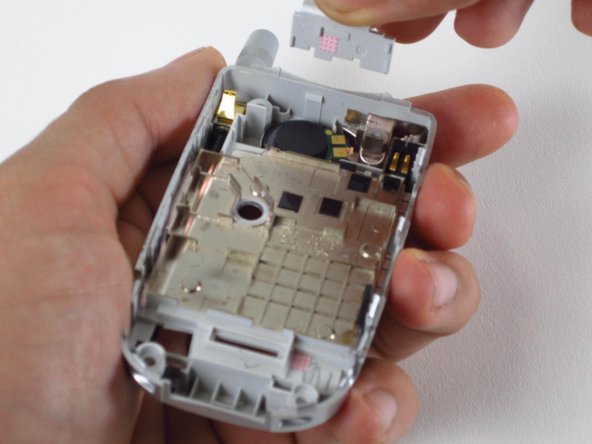

9. Pull the connector at the top of the back panel out.
10. You may need to use some force when pulling.
11. It may still be connected to the phone instead of the back panel.

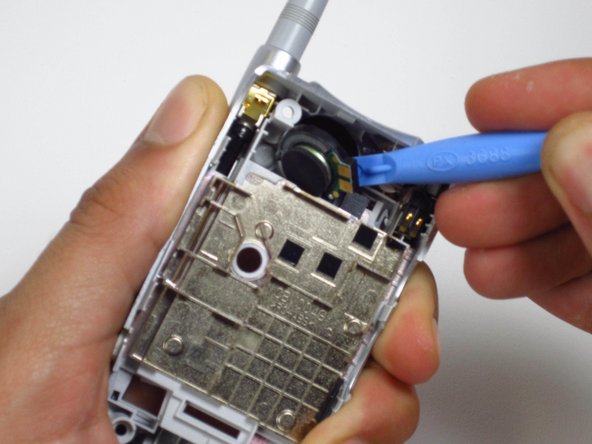

12. Use the opening tool to lift the speaker out from the right side.
