Casio fx-9750GII Screen Replacement

ID: 145065

Description: This guide will walk you through step-by-step...

Steps:

1. Turn off the calculator and flip it over so the backside is facing up.
2. Slide the battery door off and remove all of the batteries.

3. Use a screwdriver to remove the screws from the back of the calculator.

4. Carefully remove the screw from the battery slot.

5. Remove the back case from the calculator.
6. Be careful of the spring that shows in the second picture. The spring is the convertor of the battery.

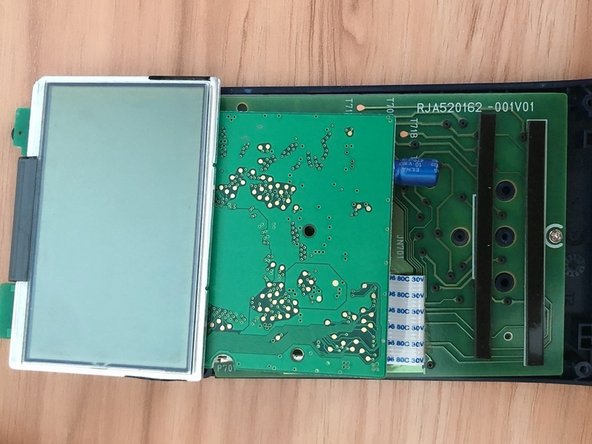

7. Remove the screws from the motherboard.

8. Separate the screen cable from the motherboard using tweezers.
9. Remove the calculator screen.
10. Replace the screen.

11. Replace the board and back cover of the calculator, then install the batteries to test if the new screen works well.
