Ridgid R4021 Blade Replacement

ID: 145090

Description: If the Ridgid R4021 120V 7-inch Table Top Wet...

Steps:

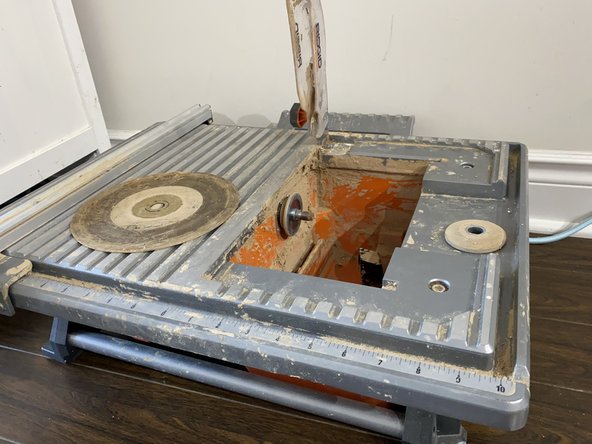

1. Remove the top panel to access the saw blade.
2. Ensure any debris is cleared from the blade area.

3. Remove the two included wrenches located on the right side of the unit.

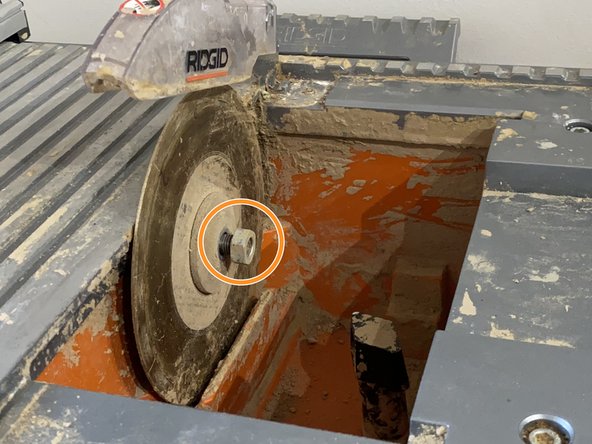

4. Fit the larger wrench around the nut on saw blade.
5. Fasten the smaller wrench to the screw coming through the blade.
6. Twist the bigger lever counter-clockwise while holding the smaller wrench in order to remove the nut.

7. Remove the saw blade by tilting it away from the well wall.
8. Use caution when handling the saw blade.

9. Place the new blade on the screw the same way the other blade was removed.
10. You can put the old blade in the new packaging to ensure safety.
