Fitbit Charge HR Screen Replacement

ID: 145163

Description: The Fitbit Charge HR is a smart watch with an...

Steps:

1. Remove the four 2.9 mm screws from the back of the display using a Torx screwdriver.
2. Remove the back cover from the device.

3. Remove the two 2.9 mm Torx screws holding the circuit board in place.
4. Carefully pry the board out using an opening tool.

5. Remove the motherboard assembly from the device.

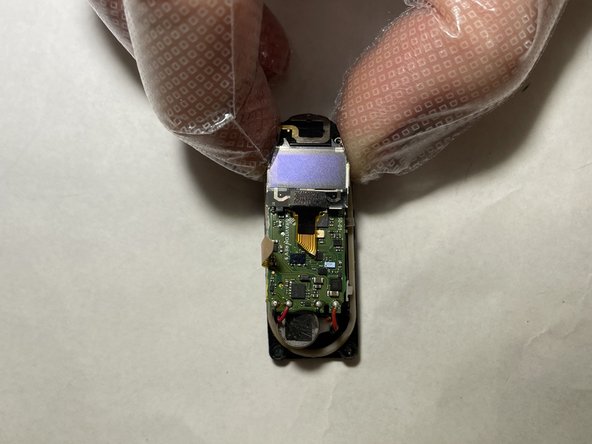

6. Flip the motherboard over so the screen is facing upwards.

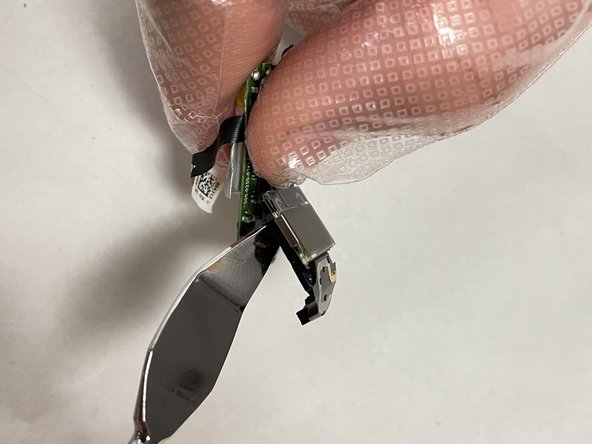

7. Wedge a nylon spudger between the screen and the motherboard.

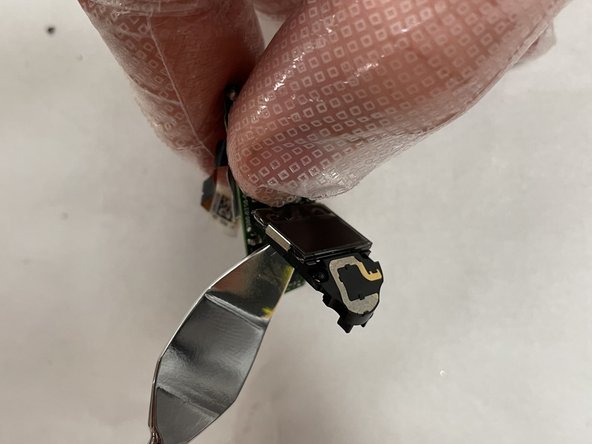

8. Gently pry the screen up and remove it from the motherboard.
9. Metal spudgers can puncture an unprotected battery and damage components like the motherboard. Always choose a tool that's ESD-safe, such as a nylon spudger or plastic opening tool.
