Dell Inspiron 14 5100 Motherboard Replacement

ID: 145209

Description: This is the motherboard replacement guide for...

Steps:

  1. Make sure to disconnect the power source to the device.
  2. Remove nine screws securing the base cover of the laptop's keyboard assembly using the Phillips #0 screwdriver.
  3. There are 2 sets of screws.
  4. Remove the 3 captive screws.
  5. Remove the 6M2*6 screws.
    6. Step image Step image Step image
  6. Pry open the laptop to separate the base cover from the keyboard assembly.
  7. You may use your fingertips or use plastic opening tools.
    8. Step image Step image

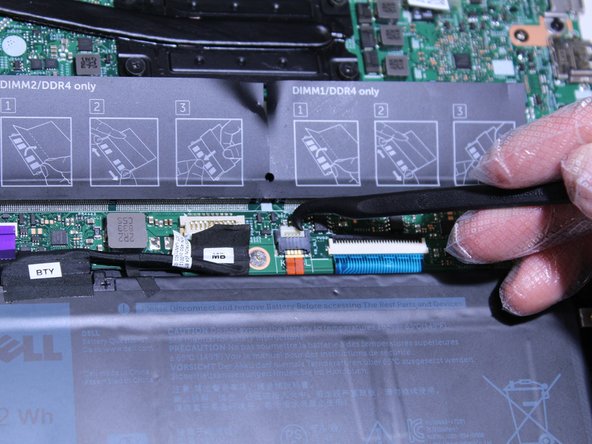

  8. Fold back the thin plastic covers over the RAM slots.
    9. Step image

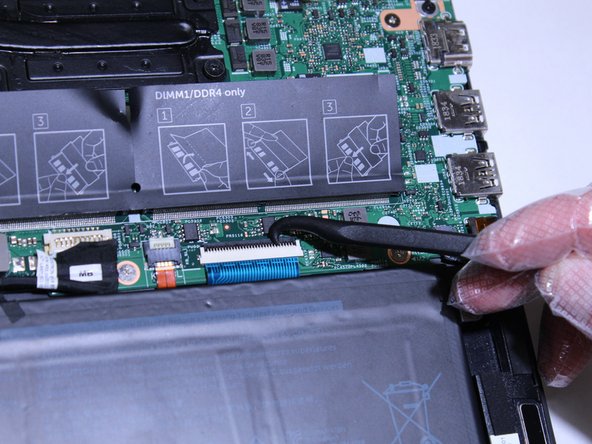

  9. Using the spudger, pull back the pins holding the RAM in place.
  10. The RAM will slightly pop up from the motherboard.
    11. Step image Step image
  11. Remove the RAM card from the RAM slot using your fingers. Pull it gently in the direction of the laptop hinge.
  12. Repeat Steps 3-5 for the other RAM slot.
    13. Step image
  13. Detach the white connector from the motherboard using the spudger.
    14. Step image
  14. Flip up the retaining flap and remove the blue ribbon cable from its connector on the motherboard using a spudger.
    15. Step image Step image
  15. Flip up the retaining flap and remove the orange ribbon cable from its connector on the motherboard using a spudger.
    16. Step image Step image
  16. Detach the CMOS battery connector using the spudger.
    17. Step image Step image

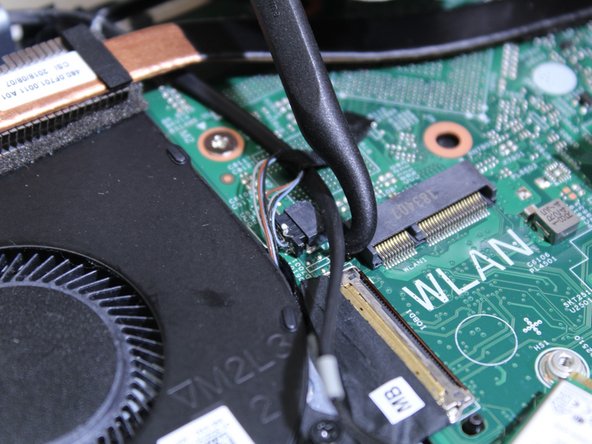

  17. Remove the black connector using the spudger.
    18. Step image Step image

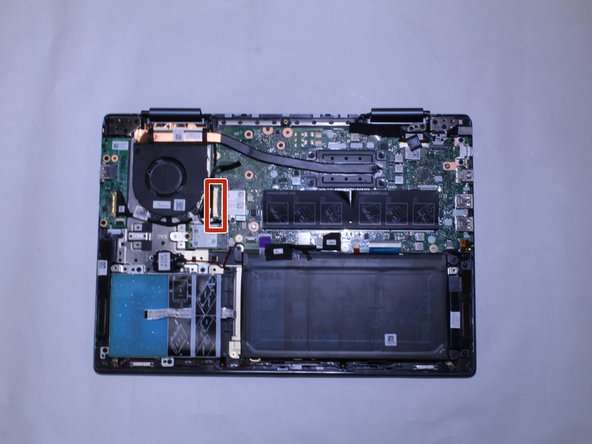

  18. Remove the single 3 mm screw from the Wi-Fi card using the Phillips #0 screwdriver.
  19. Pull the Wi-Fi card out of the slot and set aside.
    20. Step image
  20. Remove the single screw from the SSD using the Phillips #0 screwdriver.
  21. Remove the SSD from the motherboard.
    22. Step image
  22. Remove two 2 mm screws using the Phillips #0 screwdriver.
    23. Step image Step image
  23. Disconnect the cable from its connector on the motherboard using the spudger.
    24. Step image Step image
  24. Lift the metal retaining flap using the opening tool.
  25. Remove the connector from the bracket.
    26. Step image Step image
  26. Detach the cable using the spudger.
    27. Step image Step image

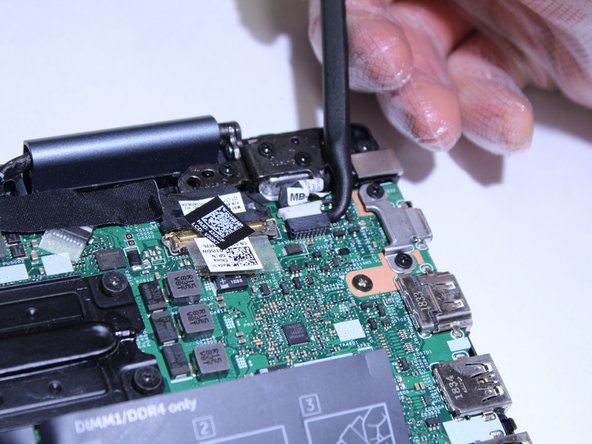

  27. Detach the connector using the spudger.
    28. Step image Step image
  28. Remove six 3 mm screws using the Phillips #0 screwdriver.
    29. Step image
  29. Remove the motherboard by lifting it from the rear and then completely removing it from the laptop.
    30. Step image
