SSD Replacement

ID: 145418

Description:

Steps:

1. remove the feet with a spudger

2. Remove the 11 screw with a PH0 screwdriver.
3. The screws are identical

4. Insert a spudger between the bottom cover and the keyboard module, then go around the whole cover to uncip everything.
5. Remove the bottom cover from the computer.

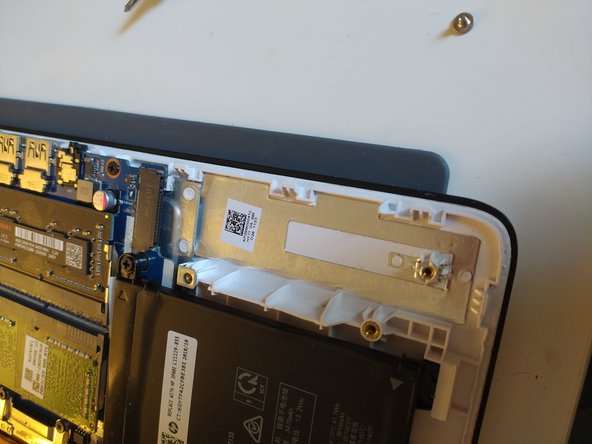

6. You now have acces to the inside of the machine.

7. remove the screw with your PH0 screwdriver

8. slide the SSD out of the m.2 slot
9. It may be necessary to slightly lift up the back of the SSD
10. The SSD is now removed
