Apple DVI to ADC Adapter Teardown

ID: 145431

Description:

Steps:

1. Turn the device upside down so that the information printed on the back is visible.
2. Carefully peel the sticker using a screwdriver from an edge. This will reveal two Phillips screws.

3. Begin to open from the cable side. Carefully lift the side up like you would a hinge. The clips should un-clip themselves.
4. There are plastic clips that hold the casing together on the other side.

5. Remove all four screws on the edges of the PSU.
6. To remove the last screw, remove the shielding tape.
7. Be careful not to pull on the PSU too hard. there is a connection to the logic board.

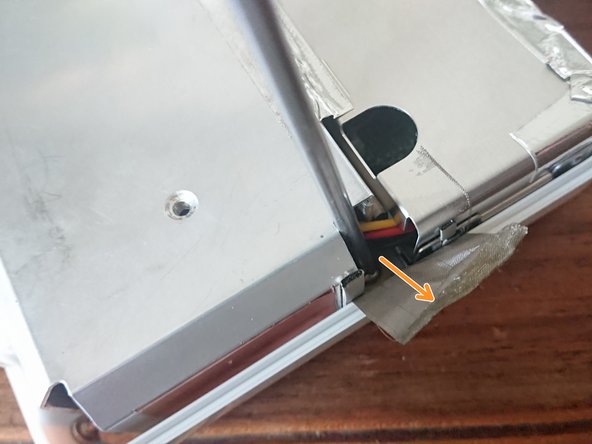

8. Carefully peel the shielding tape to release the PSU from it's place

9. Pull the shield towards the cable side and it should pop open. (Some force is required).
10. Disconnect the PSU connector.
11. PSU is free.

12. Unscrew the logic board and pull it out
