2017 Makita Chain Saw Clutch Drum Replacement

ID: 147112

Description:

Steps:

  1. Remove 2 nuts holding on the cover
    2. Step image Step image
  2. Remove four T27 torx screws, keep note of the different lengths the longer two in the front also hold the bumper spike.
    3. Step image Step image Step image

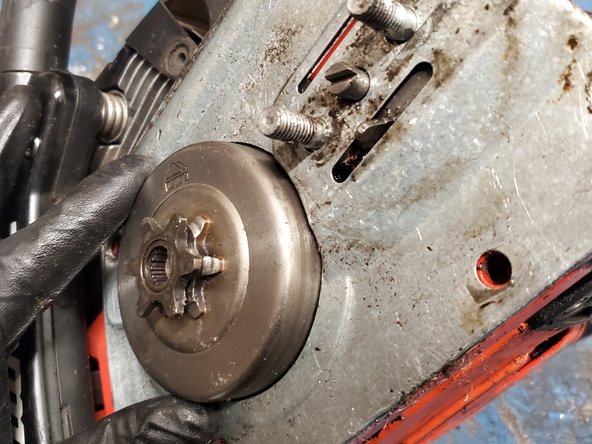

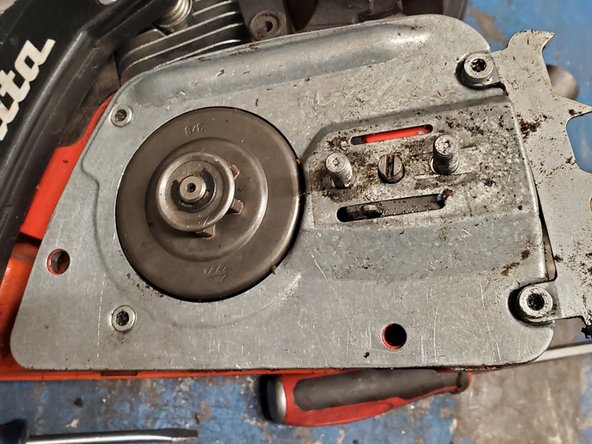

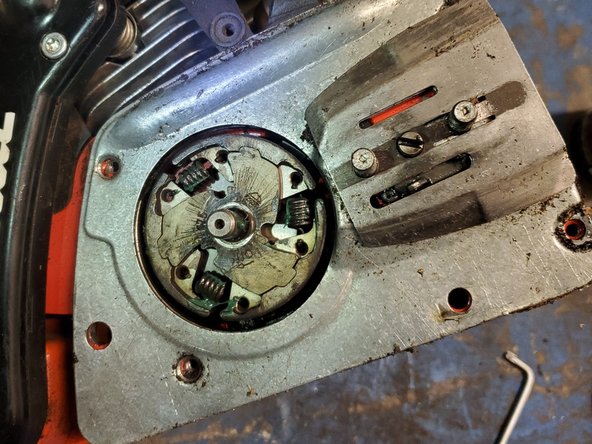

  3. Remove the lock washer with a flathead screwdriver then release the chain brake to remove clutch drum.

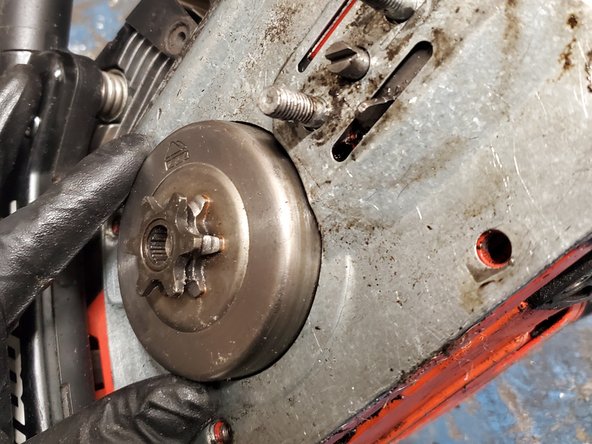

  4. With the chain brake disengaged add your new clutch drum then reinstall the four T27 screws
  5. Add bar and chain then reinstall cover and 1/2 inch* flange nuts
    6. Step image Step image Step image
