Rotor Riot Phone Connector Cable Replacement

ID: 147243

Description: Use this guide to replace a broken phone...

Steps:

1. Use your fingers to remove the screw on the back side of the controller securing the iPhone mount.
2. Remove the iPhone mount.

3. Use a T6 Torx screwdriver to remove the eight 9.2 mm-long screws securing the back cover.

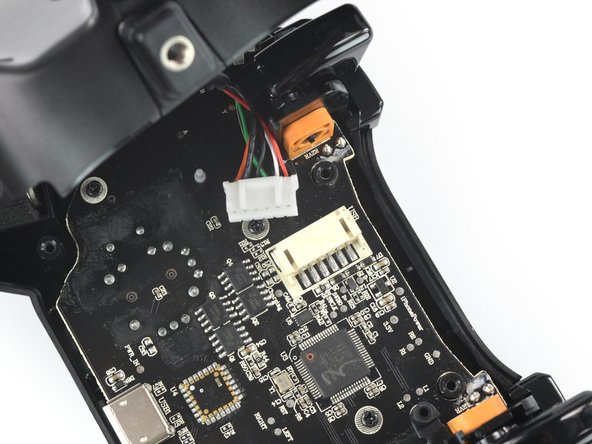

4. Don't try to remove the back cover all the way yet! It's still connected to the mainboard.

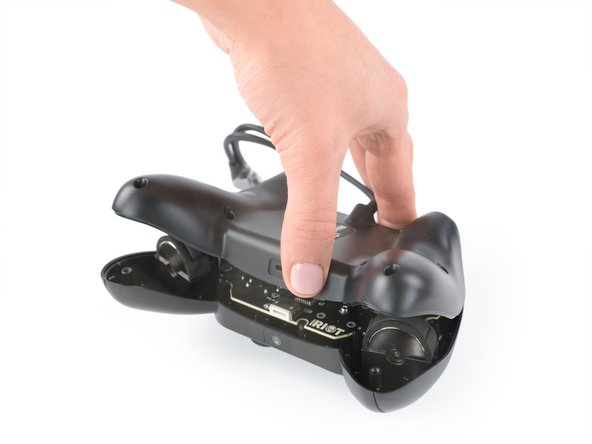

5. Lift up the back cover of the controller.

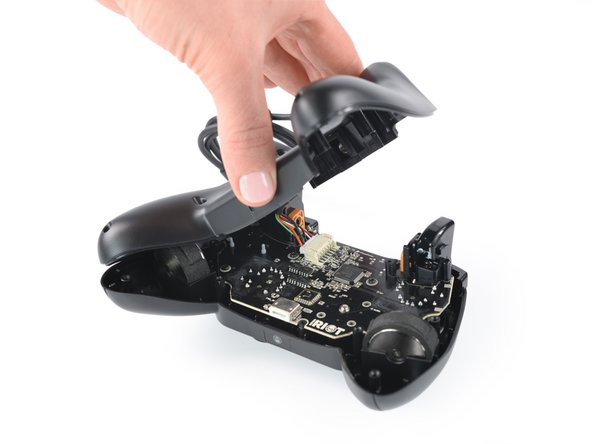

6. Lift the back cover to a 45 degree angle and place it next to the controller.
7. Don't strain the interconnect cable during this procedure.

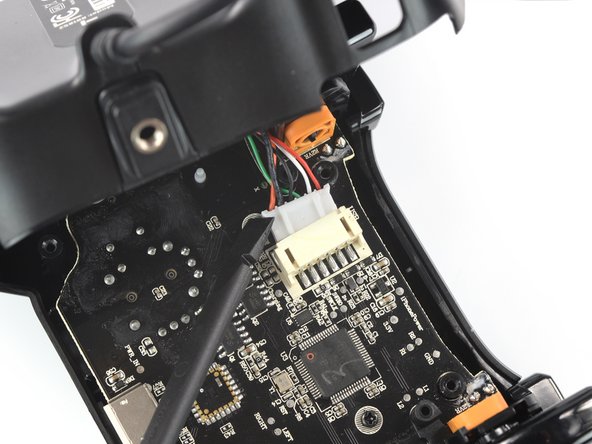

8. Use a spudger to disconnect the phone connector cable from the mainboard.

9. Remove the back cover.

10. Pull the screw thread bracket straight up to slide it off of the rails securing it to the back cover.

11. Remove the phone connector cable.
