Toshiba Satellite Pro L77-14N - basic upgrades

ID: 147567

Description: The instructions include the following upgrades...

Steps:

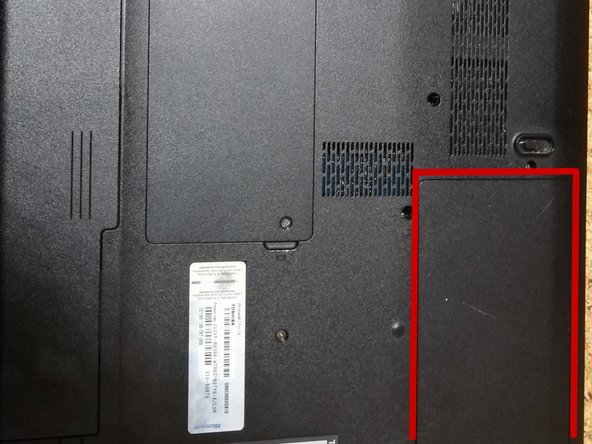

  1. The locking screw for the drive is located next to the opening for the installed hard disk. Once this screw is removed the drive can then be pulled out of the side of the laptop.
  2. The drive can be replaced by a caddy into which a 2.5" hard disk (or SSD) is inserted. SSDs offer an advantage in terms of speed, but are by no means necessary. Suitable caddies are available from specialist retailers or online.
    3. Step image
  3. The laptop's RAM is located under the cover (2). This can be expanded with DDR3 SODIMM sticks.
  4. According to the manufacturer, the laptop can accommodate up to 2 memory sticks of 4 GB each.
    5. Step image
  5. The hard disk is located under this cover. This can be replaced with a SATA3 SSD to increase the speed of the laptop.
  6. As the operating system is located here, please set up the new hard disk accordingly in advance or have the operating system transferred to the new hard disk by experts.
    7. Step image
