Nikon Coolpix L27 Screen Replacement

ID: 147600

Description: If your Nikon COOLPIX L27 screen does not turn...

Steps:

1. Undo the latch at the bottom of the camera by pushing it to the side
2. Remove the batteries (and memory card if applicable)

3. Remove the two 5 mm Phillips #000 screws from the left side.

4. Lift the cover labeled "A/V OUT" to expose a hidden screw.
5. Remove two 5 mm Phillips #000 screws from the bottom of the camera.

6. Remove the two 5 mm Phillips #000 screws from the right side of the camera.

7. Carefully pry the back cover starting from the battery latch.
8. Once all sides are loose, lift the back cover up and off.

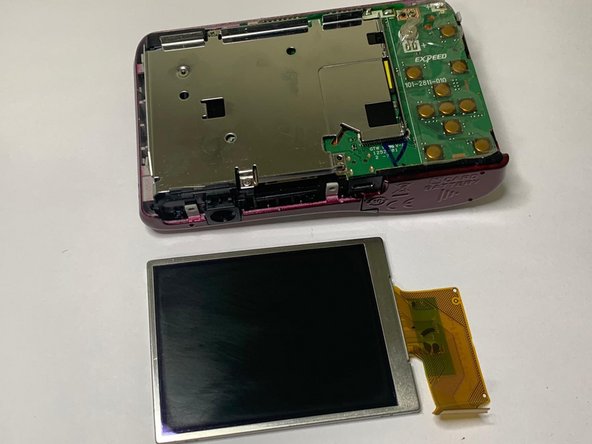

9. Carefully lift the LCD screen up towards the bottom of the camera.
10. The LCD is connected to a cable so don't pull it out yet.

11. Lightly push back the white switch holding in the screen cable

12. Remove the cable from the camera.
13. Lift the screen out.
