2014 Hyundai Santafe 3.3L Electronic Throttle Body Replacement

ID: 147620

Description: If you find your 2014 Hyundai Santa Fe 3.3L V6...

Steps:

1. Open the car hood.

2. Remove the air intake assembly by removing the 2 screws using a Philips #00 screwdriver.

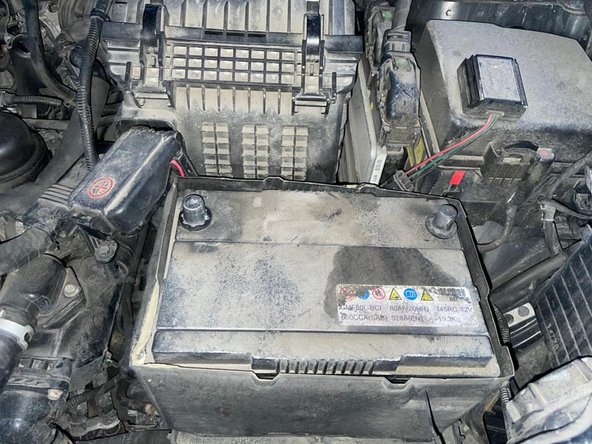

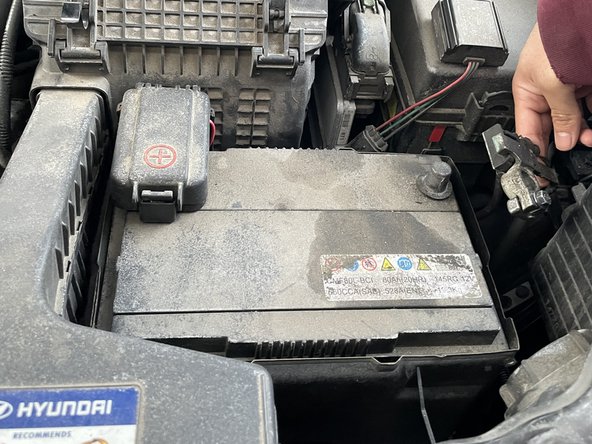

3. Use a 10mm socket to remove the negative terminal first (left) and then the positive terminal (right) of the battery.

4. Use a 10mm socket to remove the air duct.

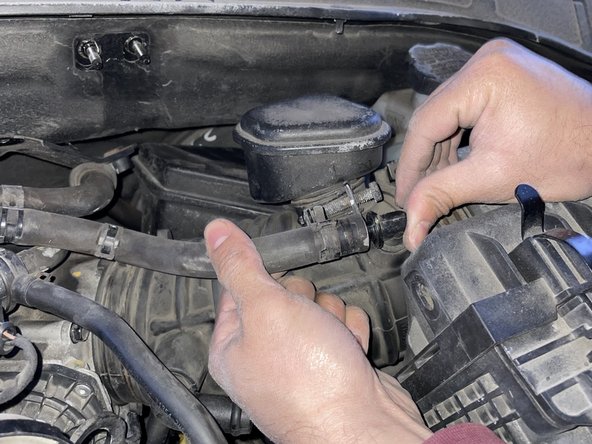

5. Remove the hoses to the duct by squeezing the clamps.

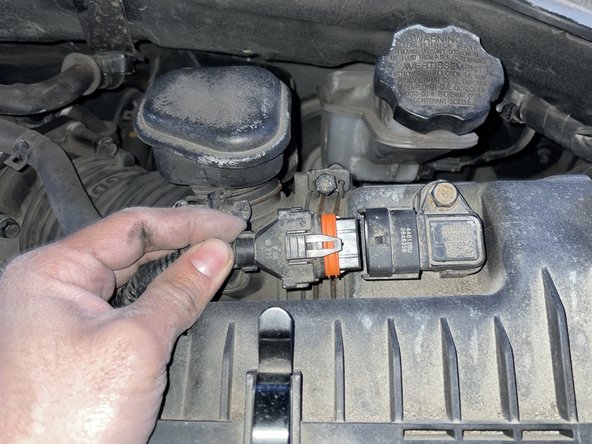

6. Unplug any sensors connecting to the duct.

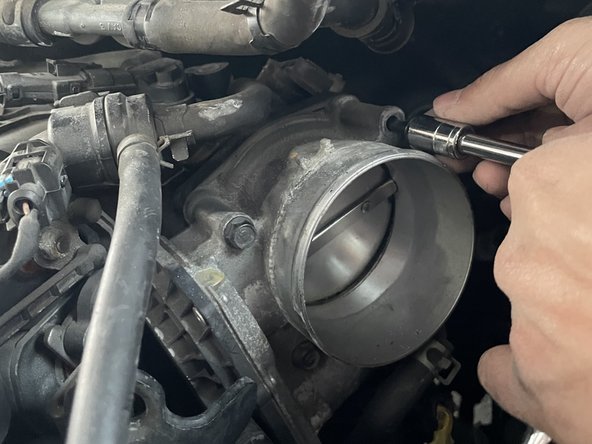

7. Using a 10mm socket, remove the 4 bolts connected to the throttle body.

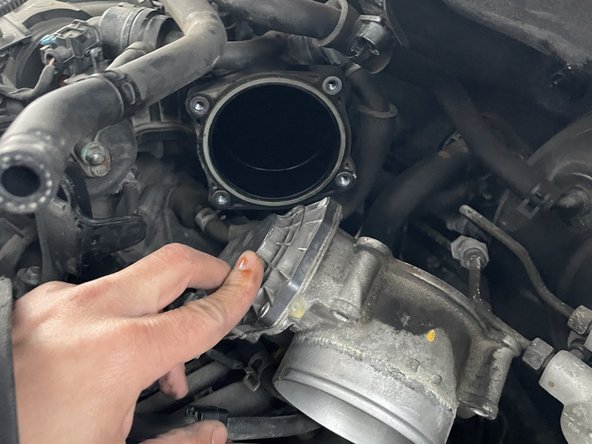

8. Remove the throttle body.
