EZsalt WiFi Salt Monitor Teardown

ID: 152478

Description: Teardown of the IoT salt monitor by EZsalt....

Steps:

  1. Remove the four screws with a #1 phillips driver.
    2. Step image

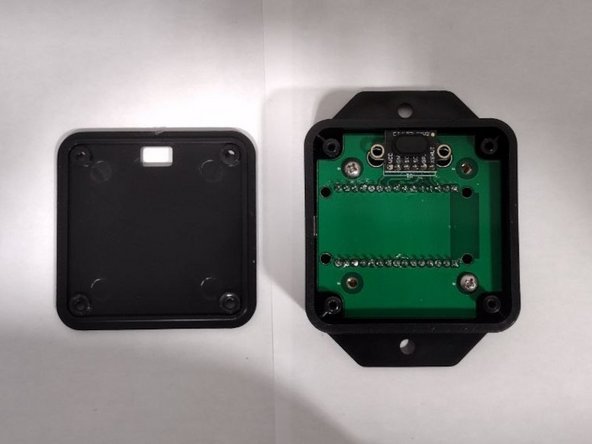

  2. Using an iFixit Jimmy or other similar tool, pry open the casing. It should come off relatively easy.
  3. TAKE CARE TO NOT DAMAGE THE INFRARED SENSOR (Circled here in red)
    4. Step image Step image
  4. Remove the two screws holding the PCB in the casing using a #1 phillips driver.
    5. Step image

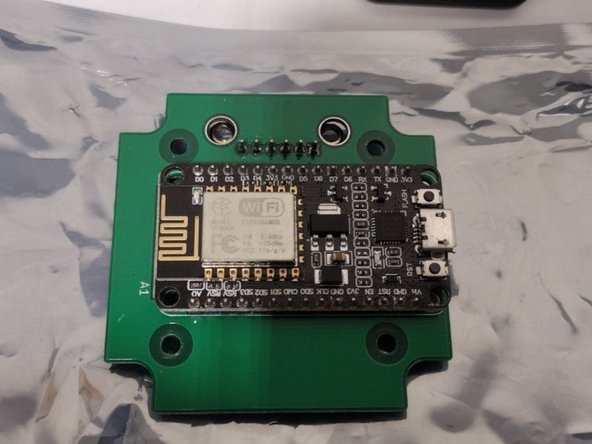

  5. To protect the PCB from damage by static shock, use an ESD safe material whenever the PCB is out of it's casing.
    6. Step image Step image
