Engine air filter replacement

ID: 152631

Description: Applicable to all engines (H4D and H4Bt)....

Steps:

1. Open the trunk.
2. Put aside the trunk carpets.

3. Unscrew the 6 T50 screws by hand or using a wrench and a socket.
4. Lift and put aside the engine hood.

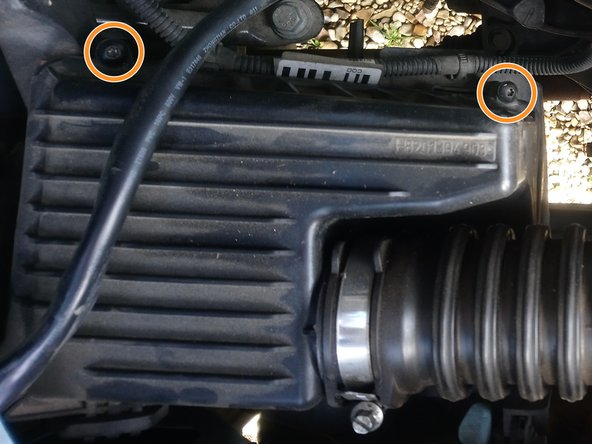

5. Unscrew the 2 Torx T25 screws.
6. Disglog the air filter lig by slightly pushing/pulling it forward then lifting it.

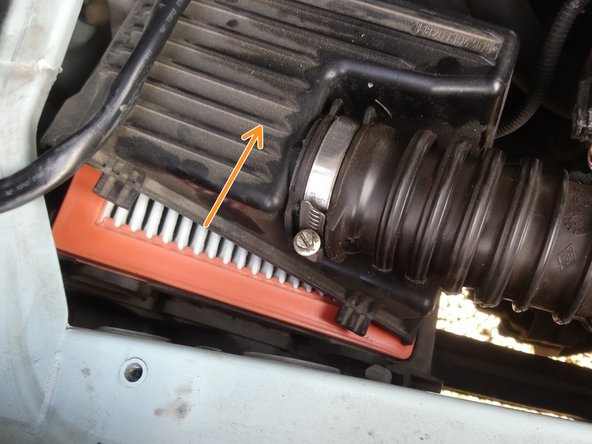

7. Extract the used air filter.
8. Dust off the air box from any debris residing in it.
9. Optionnal but recommended: proceeed to a throttle body, MAP sensor and air manifold thermometer cleaning (see other tutorials).
10. Install the new air filter.
11. Replace the lid by sliding the two notches.
12. Screw back the two T25 Torx screws while maintaining a slight pression on the lid.
