Ring Elite Doorbell Button Replacement
ID: 153114
Description: Replace a broken button on a Ring Doorbell Elite
Steps:
- Button on doorbell is broken. Replacement from Etsy Store - Doorbell Accessories
- https://www.etsy.com/au/listing/87604191...
- The button is very difficult to replace by disassembly. The seller recommends to pull out the button slightly with your fingers and slide a screwdriver around the seam. I found this didnt work for me
- The old button is clipped around the housing with three clips. Cutting the centre of the button out allows easier access to the clips from the inside
- Be careful with the cutters to not go too deep and damage the inner circuitry of the button, try to cut parallel to the front of the button

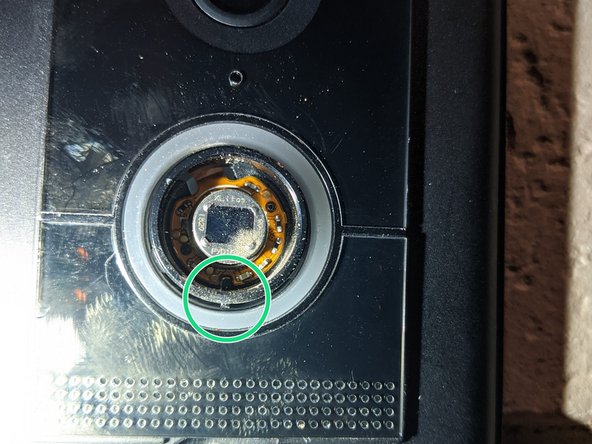

- The green ring represents the remains of the old button and the red ring represents the button housing which the button is clipped to
- Carefully insert the pointed end of a metal spudger into the gap between the button and the button housing and rotate to seperate the clips from the housing
- Then pull back on the button remains as you unclip the clips
- The clips are located at 12 oclock , 4 oclock and 8 oclock
- Insert the new button with the notch at 6 oclock. It should line up with a tab inside the button ring
- Push the button in firmly once lined up. It should not take too much force.
- Done!
