Samsung Galaxy Tab S7 Plus Daughterboard Replacement

ID: 155622

Description: This is a prerequisite-only guide! This guide...

Steps:

1. Use a Phillips #00 screwdriver to remove the two 2 mm screws securing the charging daughterboard to the frame.
2. If you're reassembling with the Samsung Self-Repair kit, be sure to replace the screws with new ones labeled #3298.

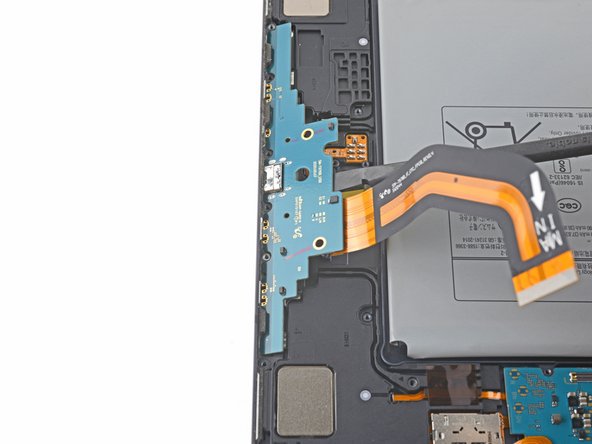

3. Insert a spudger between the charging daughterboard and the frame.
4. Pry up with the spudger to release the clips securing the charging daughterboard.

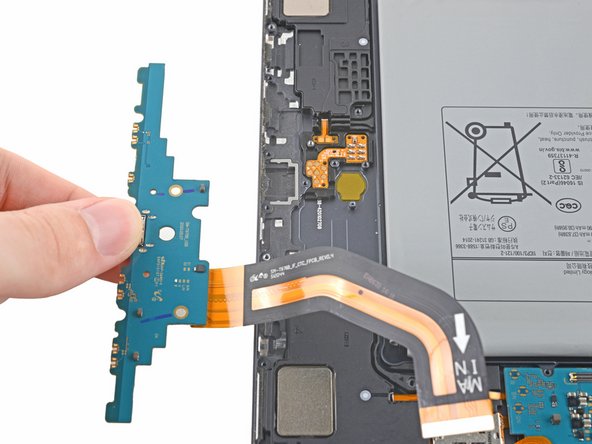

5. Use your fingers to remove the charging daughterboard.
6. During reassembly, refasten the charging daughterboard screws first to properly align it into place, then reconnect the interconnect cable.
