How to fix wobbling Steering wheel on the Logitech G29 Driving Force

ID: 155669

Description: This guide is for tightening and correcting a...

Steps:

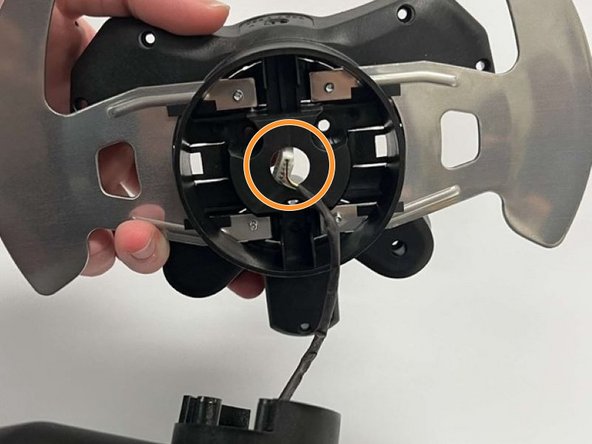

1. Undo the screws on the back of the steering wheel that connect it to the device hub.

2. Remove the 6 bolts on the faceplate of the steering wheel.

3. CAREFULLY separate the steering wheel from the base of the device.
4. Take great care not to damage the wire as you separate them.
5. Gently remove the wire connector from the steering wheel and remove the steering wheel completely.

6. Remove the three screws from the locations circled.
7. Remove the paddle shifter from the device.

8. After removing the steering wheel and paddle shifter, flip the device hub over and remove the 8 screws highlighted in red.
9. Depending on your model, you may also need to remove 2 screws on the outside of the feet.
10. After the screws are removed, flip the hub back over and remove the black casing to reveal the inside.

11. Ensure that the black plastic and the metal frame of the device are as close together as possible.
12. Tighten the 4 screws highlighted in orange. This should fix the wobbling issue on your device.
