Arlo Ultra 2 Spotlight Replacement

ID: 158574

Description: If the spotlight on your Arlo Ultra 2 is no...

Steps:

1. Press the button on the bottom of the camera to release the case.
2. Pull the white case off of camera.

3. Pull the white cube shaped battery from the back to remove it from camera.

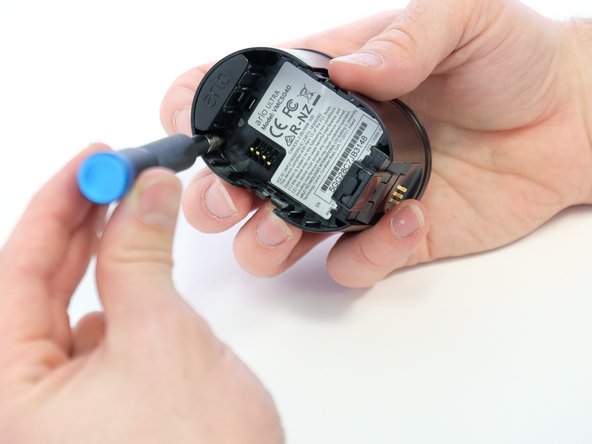

4. Use a Phillips #0 screwdriver to remove the four 20.0 mm screws from the battery cavity.

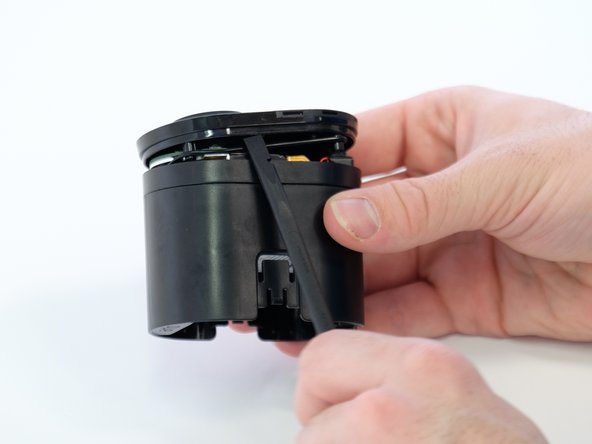

5. Use a spudger to loosen and remove the camera faceplate.

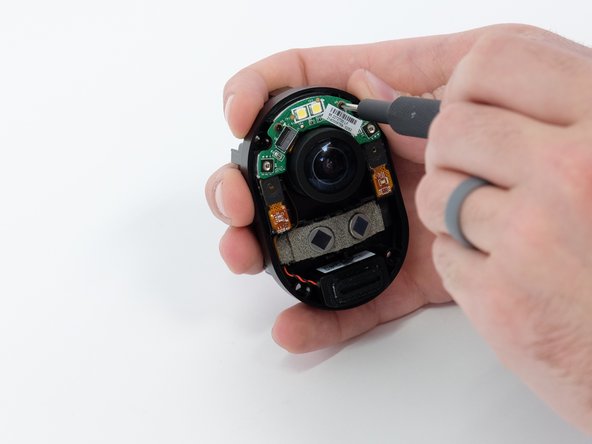

6. Use a Phillips #00 screwdriver to remove the two 4.00 mm black screws located across from each other above the camera lens.

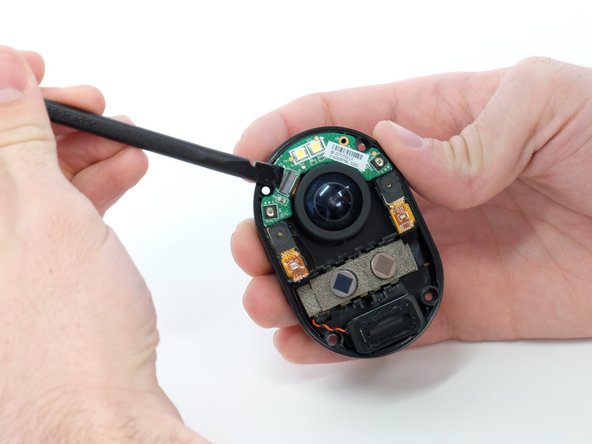

7. Use a spudger or your fingernail to flip up the small locking flap on the ZIF connector. Then, you can safely pull the cable out.
8. The cable is very short and you will see it when removing the circuit board.

9. Use a spudger to gently pry the green circuit board away from the case.

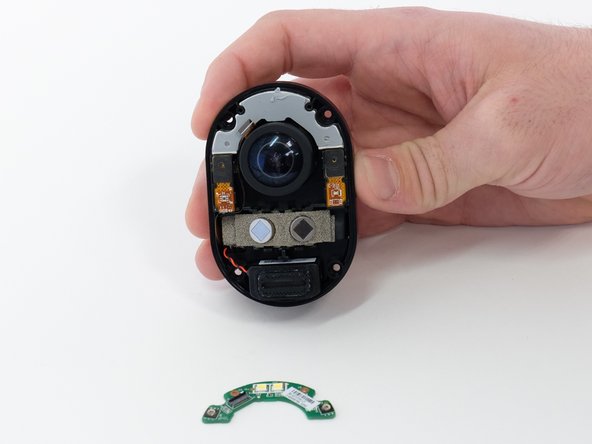

10. Remove the green circuit board. This is your spotlight.
