Arlo Ultra 2 Motion Sensor Replacement

ID: 158581

Description: The motion sensor component signals to start...

Steps:

1. Press the button on the bottom of the camera to release the case.
2. Pull the white case off of camera.

3. Pull the white cube shaped battery from the back to remove it from camera.

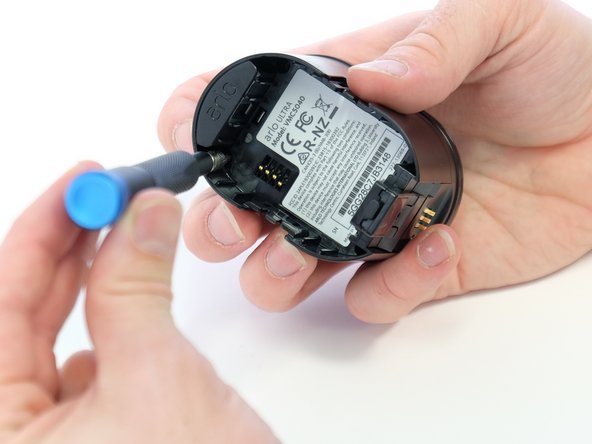

4. Use a Phillips #0 screwdriver to remove the four 20.0 mm screws from the battery cavity. They are found in each corner.

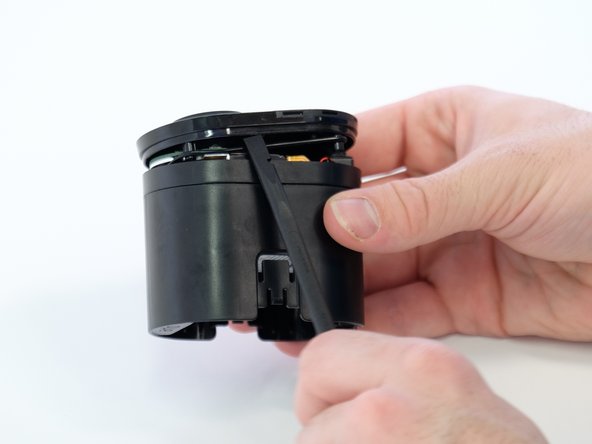

5. Using the spudger, loosen and remove the camera faceplate.

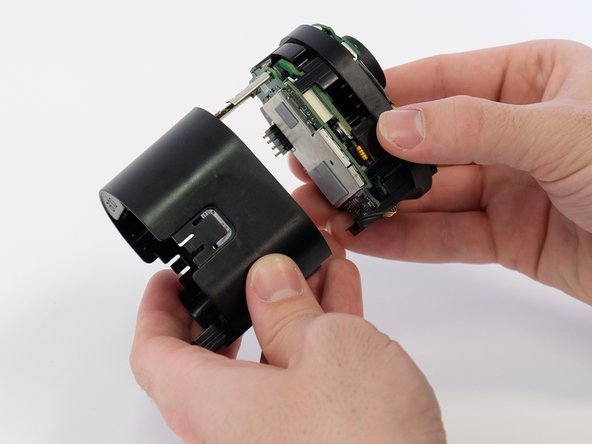

6. Using the spudger, loosen and remove the back casing to expose the camera hardware.

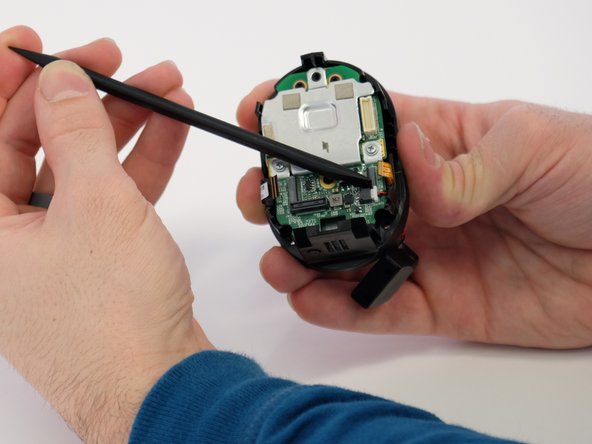

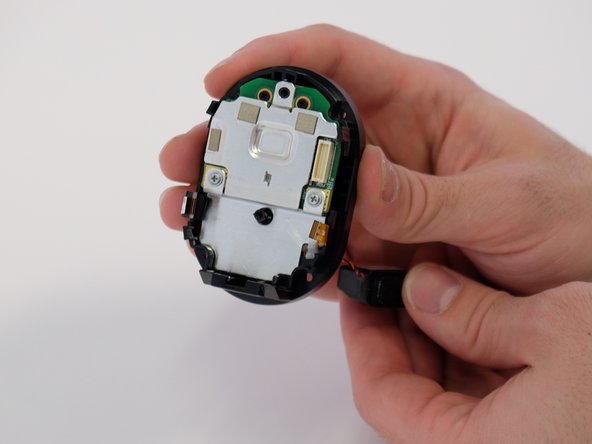

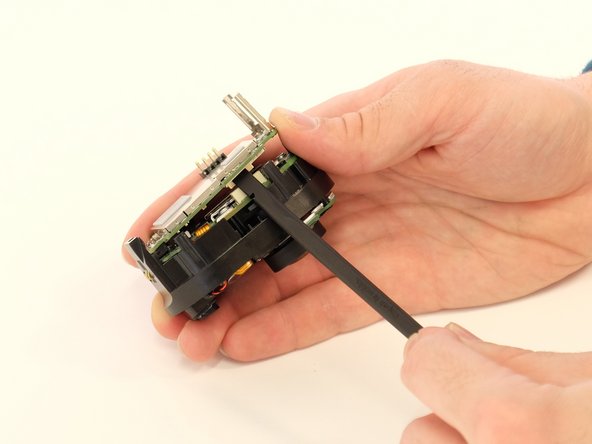

7. Very gently, pry the circuit boards apart from the white connector, removing the upper circuit board.

8. Use a Phillips #00 screwdriver to remove two 5.0 mm screws from the metal bracket.

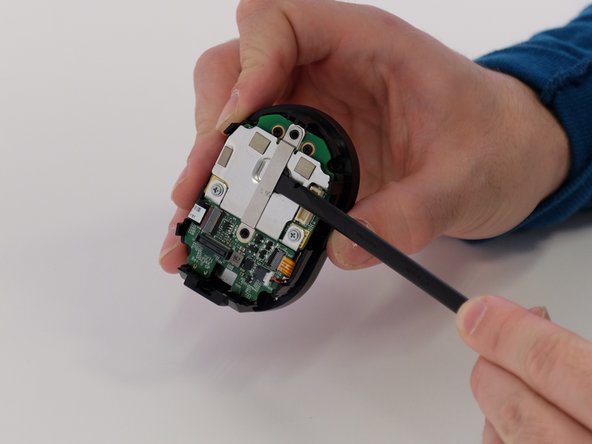

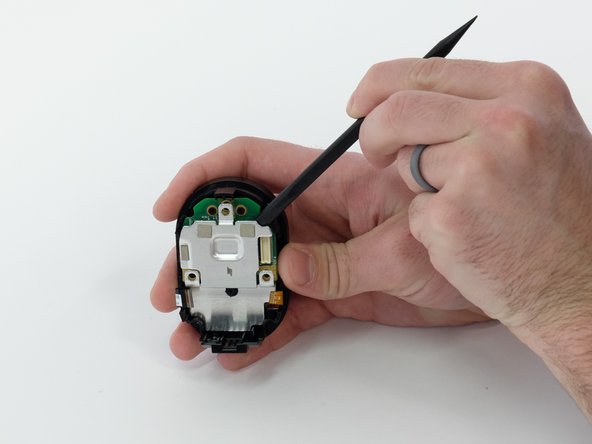

9. Use a spudger to separate the long metal bracket.
10. There is an arrow etched into the bracket. It points towards the top of the camera. This is important when reassembling the camera.

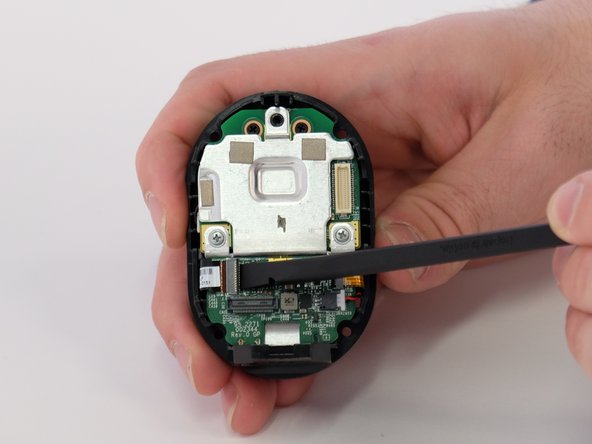

11. Use the tip of a spudger or your fingernail to flip up the small locking flap on each ZIF connector. Then, you can safely pull the cables out.

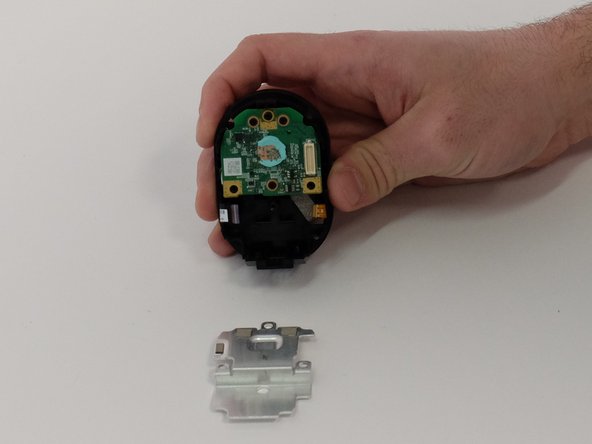

12. Be sure to pry up on the hinged flap, not the connector socket.

13. Use a spudger to carefully push on each side of the speaker cable connector until it's out of its socket.

14. Remove the small green circuit board.

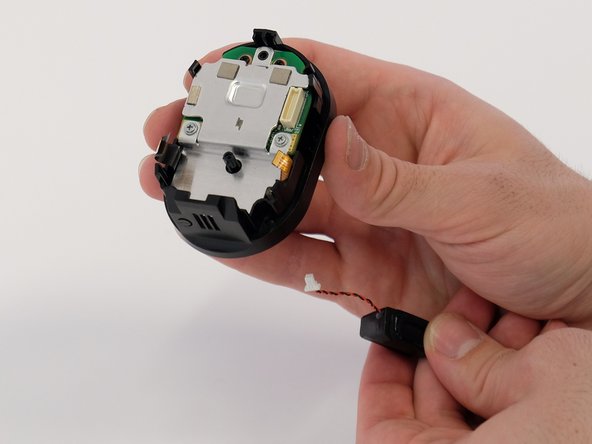

15. Feed the speaker cable through the opening to remove the speaker.

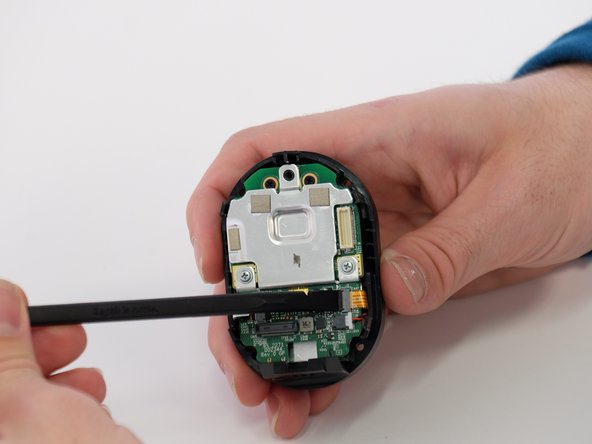

16. Use a Phillips #00 screwdriver to remove the two 5.0 mm screws from the metal plate.
17. Pry the plate away from the circuit board underneath.

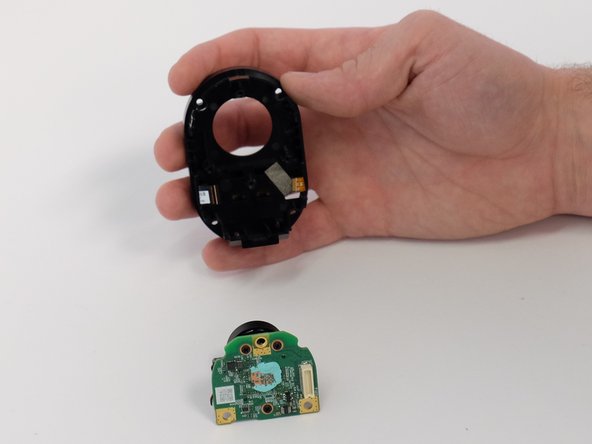

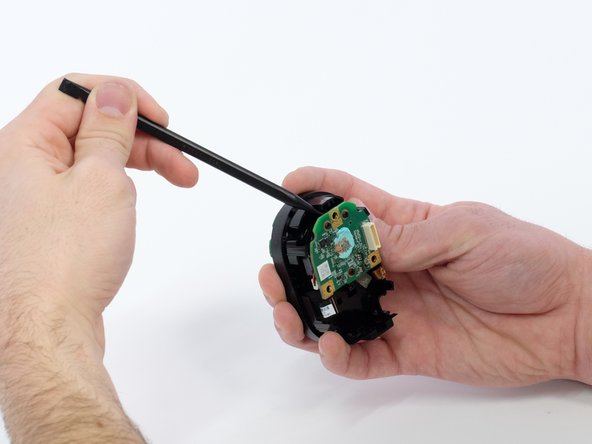

18. Use a spudger to remove the circuit board with the lens attached.

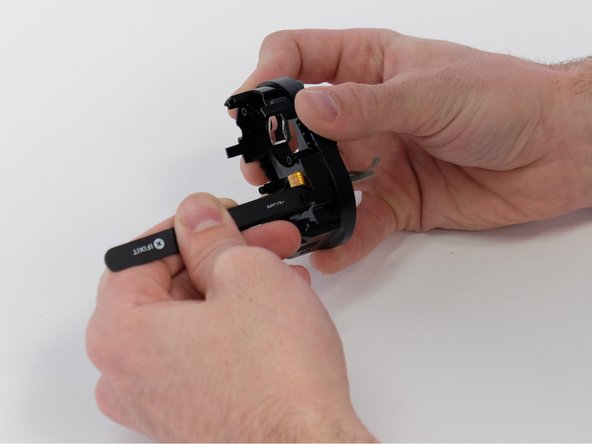

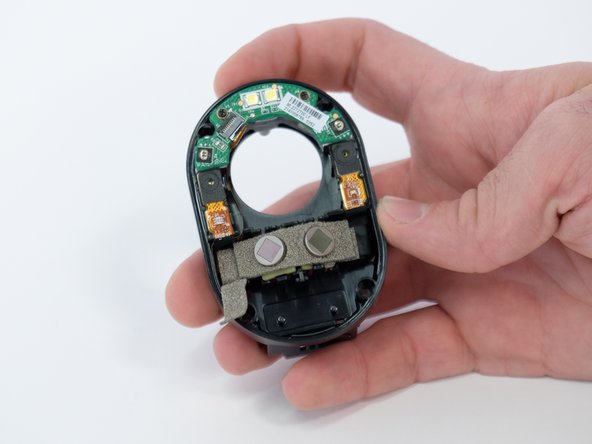

19. Use blunt tweezers to pull up the heat-resistant tape.
20. Pull the heat-resistant tape through to the front of the camera.

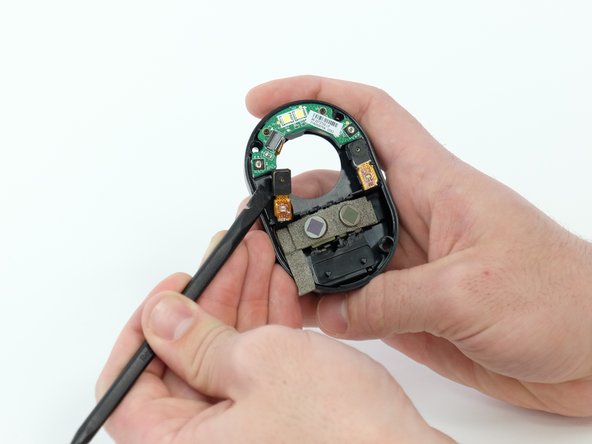

21. Place the tip of your spudger under the edge of the motion sensor connector, and pry the connector straight up from its socket.

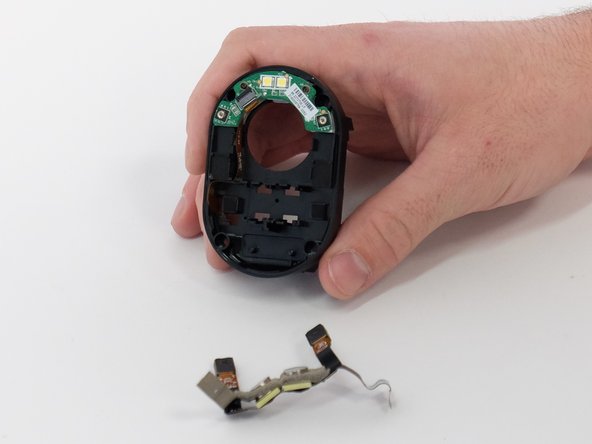

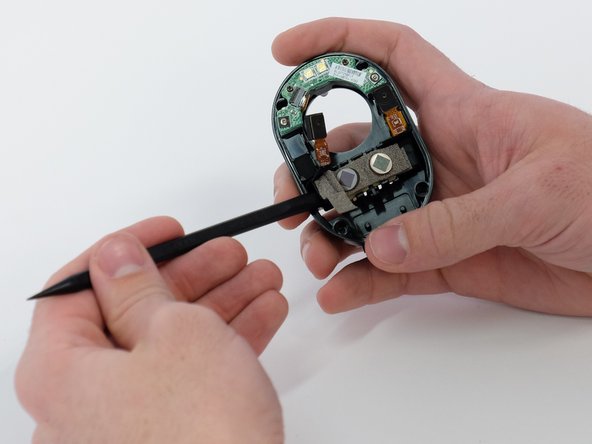

22. Use a spudger to remove the motion sensors from the housing.
23. Finish removing the entire motion sensor and microphone electric tape.
