LG WM3050CW Detergent Dispenser Replacement

ID: 158617

Description: Use this guide to replace the detergent...

Steps:

1. Before you begin your repair, perform the following:
2. Turn off the main water supply
3. Unplug your washer
4. Disconnect all water connections at the rear of your washer

5. Use a Phillips driver to remove the two bottom 16.5 mm-long screws securing the top panel brackets.

6. Slide the top panel 1-2 inches towards the rear of the device to disconnect its clips.

7. Tilt the top panel upward to completely disconnect it from the chassis.
8. Remove the top panel.

9. Pull the detergent drawer away from the chassis as far as it will go.

10. Press down on the "Push" button to disengage the clips securing the detergent drawer.
11. Pull the drawer out of its slot on the chassis and remove it.

12. Disconnect the three harness connectors for the control panel.
13. Always grip cables by their connectors and not the wires themselves.

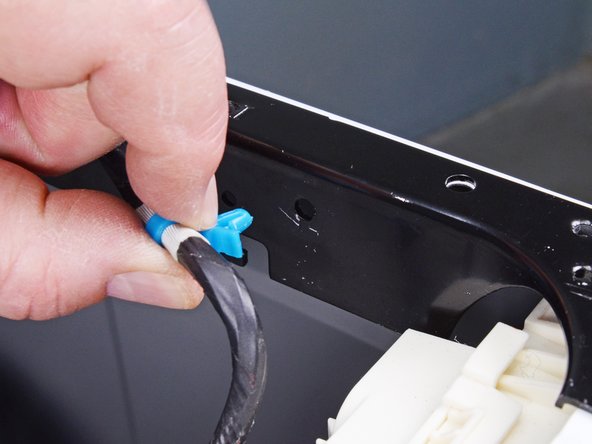

14. Use your hands to unclip the control panel cable from the detergent dispenser.

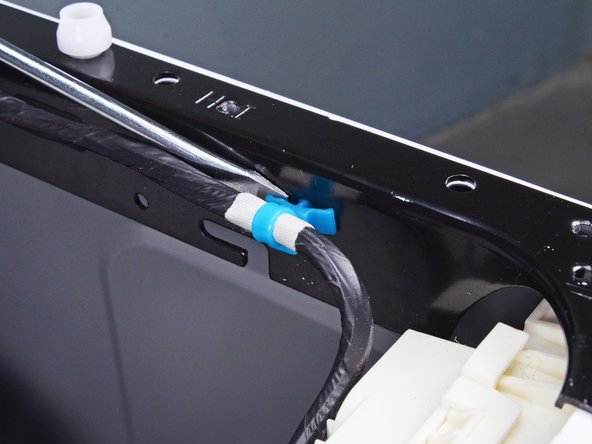

15. Insert a flathead screwdriver between the chassis and the plastic clip securing the control panel cable.
16. Compress the clip and slide it out of the chassis to remove it.
17. Move the cables out of the way of the detergent dispenser hoses before you continue.

18. To prevent confusion, label each hose and its corresponding dispenser connection.
19. You can use masking tape or mark the components themselves.

20. Use slip joint pliers to pinch the detergent dispenser hose clamp and pull it away from the assembly.

21. Use slip joint pliers to gently rotate the detergent dispenser hose back and forth around its connection and loosen it.

22. Pull the detergent dispenser hose straight off its connection on the assembly.
23. Repeat the loosening and removal procedure for each hose.

24. Use a Phillips driver to loosen the screw securing the bellows to the detergent dispenser.
25. Pull the bellows straight off its connection on the dispenser to disconnect it.

26. Use a Phillips driver to remove the two 26.3 mm‑long screws securing the detergent dispenser.

27. Slide the detergent dispenser toward the back of the device to unclip it from the chassis.
28. Pull the dispenser toward the left edge of the device to completely separate it from the chassis.

29. Remove the detergent dispenser.
