LG WM3050CW Electrical Noise Filter Replacement

ID: 158850

Description: Use this guide to replace the electrical noise...

Steps:

1. Before you begin your repair, perform the following:
2. Turn off the main water supply
3. Unplug your washer
4. Disconnect all water connections at the rear of your washer

5. Use a Phillips driver to remove the two bottom 16.5 mm-long screws securing the top panel brackets.

6. Slide the top panel 1-2 inches towards the rear of the device to disconnect its clips.

7. Tilt the top panel upward to completely disconnect it from the chassis.
8. Remove the top panel.

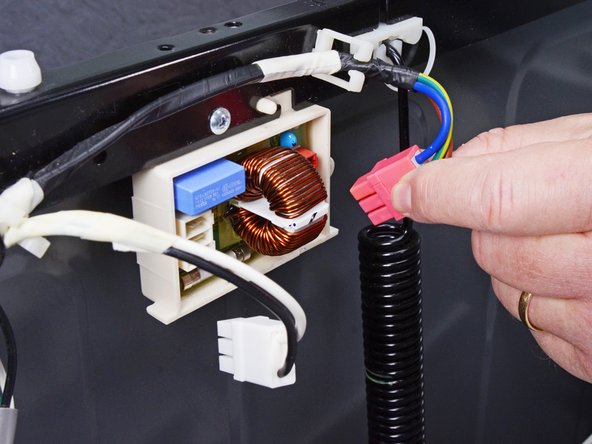

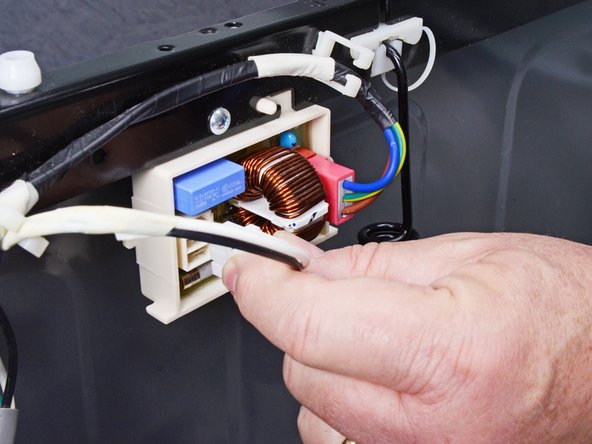

9. Disconnect the two spade connectors attached to the noise filter.
10. Always grip cables by their connectors and not the wires themselves.

11. Use a Phillips driver to remove the 12.5 mm-long screw securing the noise filter.

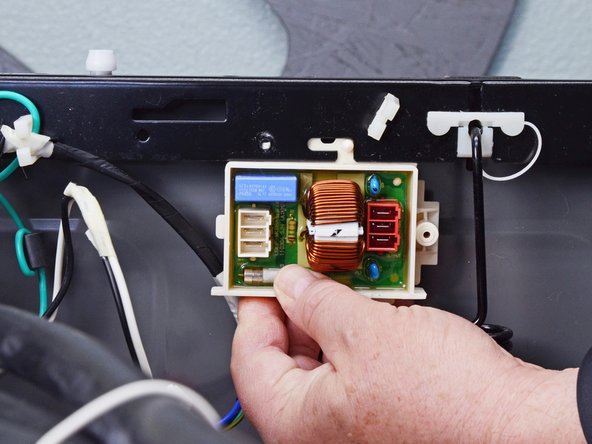

12. Slide the noise filter towards the front of the device to unclip it from the chassis.
13. Pull the filter downward to completely separate it from the device.
14. Remove the filter.
