Classic Ripstik Caster Board Wheels Replacement

ID: 160991

Description: When you have been riding a RipStik (also known...

Steps:

1. Use 2 5mm Allen Wrenches on both sides of the wheels and rotate both wrenches counterclockwise to take out the wheel, axle bolt, screw bolt, and 2 washers.

2. Take off the screw bolt on one end and the axle bolt on the other end.
3. Once you disassemble, make sure to save the bolts and washers in a safe place. You will use them for the new wheels.

4. Slide the axle bolt through the hole on the outside and place the washer on the inside.

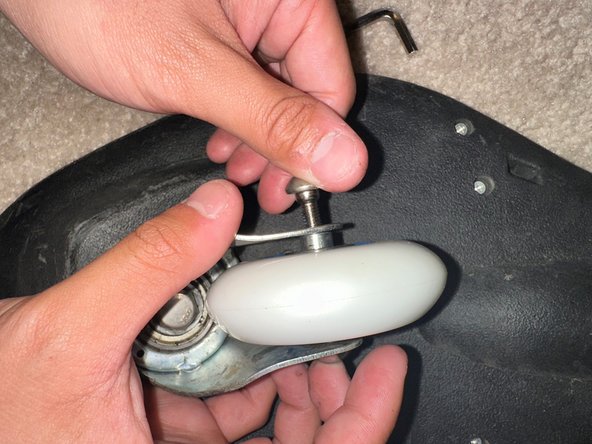

5. Slide the axle bolt out just enough to place the wheel in the middle.
6. Slide the axle bolt through the middle of the wheel to hold the wheel in place.
7. It is easier to slide the bolt through the wheel if the wheel is being placed sideways.

8. Place the second washer in between the wheel and the caster wall.

9. Insert the screw bolt through the outside of the caster wall to go through the washer and the wheel.

10. Much like step 1, use 2 allen wrenches to screw in the wheel and secure it in place.
11. When screwing it, it is easier to hold one hand firm while rotating the other wrench clockwise to tighten.
