2001-2006 Toyota Tundra Tailgate Replacement

ID: 161025

Description: If the tailgate on your 1st Generation...

Steps:

1. Use a Torx T30 screwdriver to remove the eight 27.0 mm screws on the inside of the tailgate securing the bed-liner panel to the tailgate.

2. With the screws removed, lift and remove the bed-liner panel on the inside of the tailgate.
3. Do not touch the top of the tailgate. It's made from fiberglass that could cause splinters due to age or deterioration.

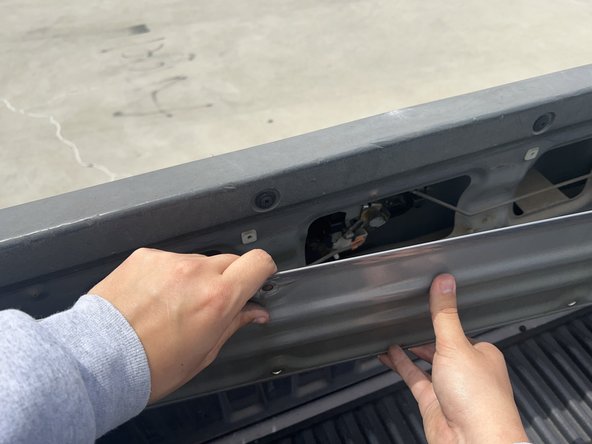

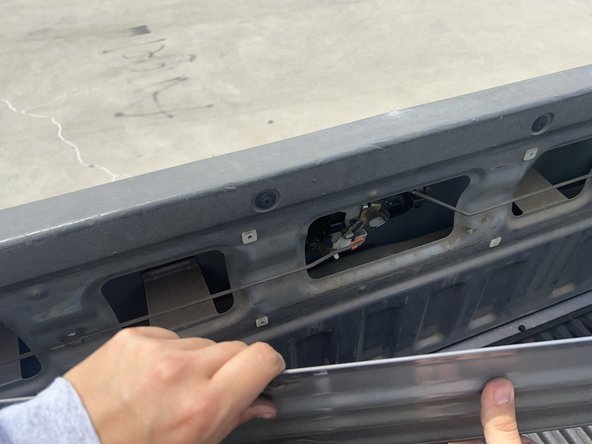

4. Remove the metal panel beneath the bed-liner panel.
5. The metal panel uses the same screws as the bed-liner panel and can be removed at the same time.

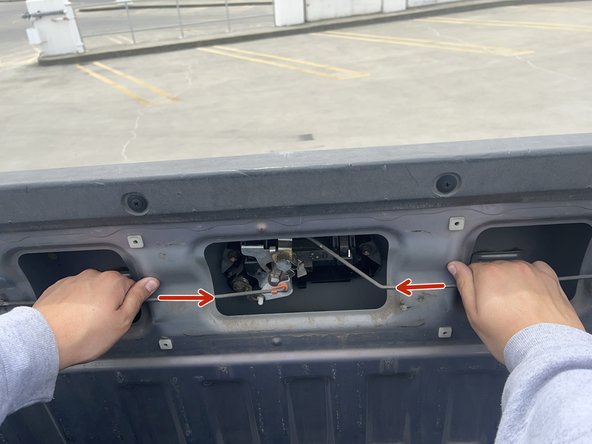

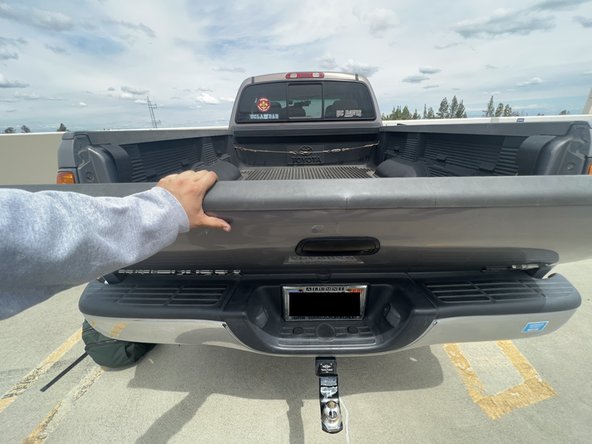

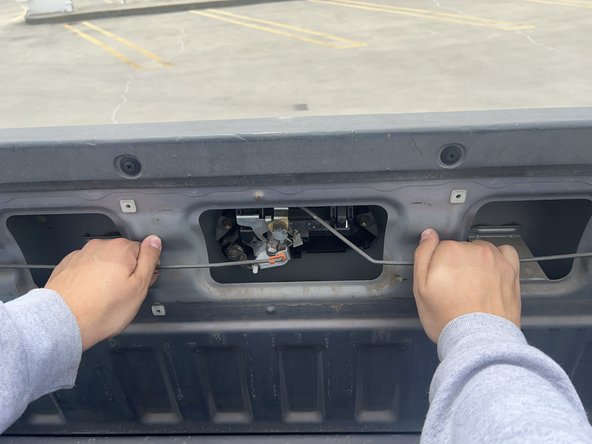

6. Grasp the cables and push inwards with both hands until the tailgate is released from the truck bed.

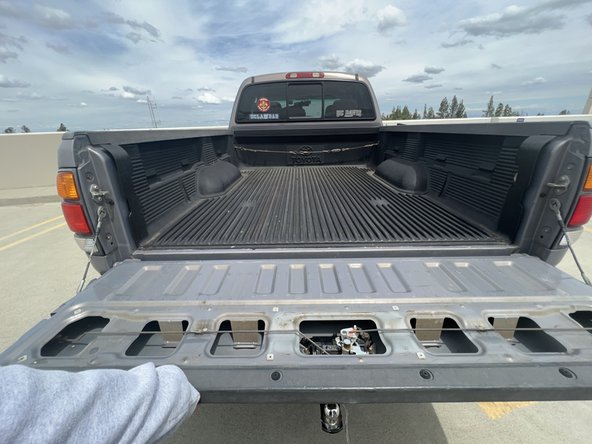

7. Open the tailgate until it is flat or parallel with the ground.

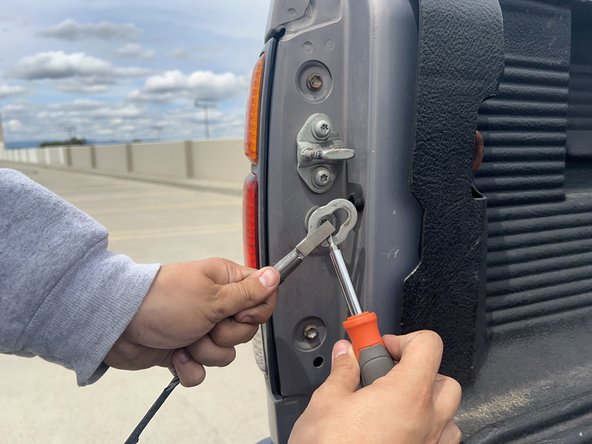

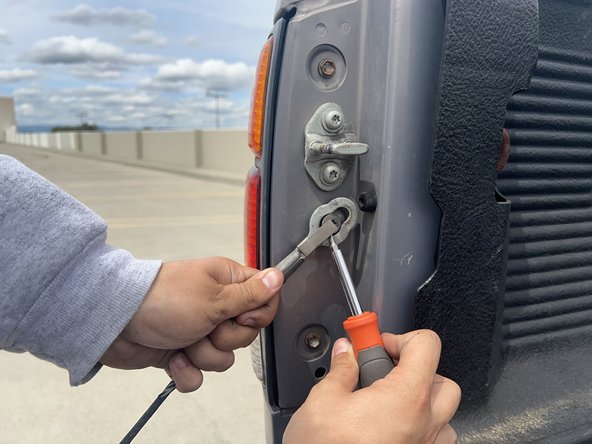

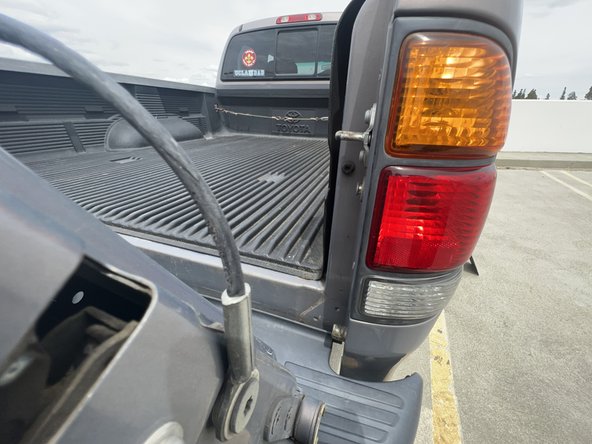

8. Remove the cables that connect the tailgate to the truck bed by prying the metal tab towards you using the flat head bit on the screwdriver.
9. Pry the tab up until the cable can be removed from the tailgate cable bolt.
10. The tailgate may need to be lifted up slightly to remove the cable from the tailgate cable bolt.
11. Repeat for both sides of the tailgate.

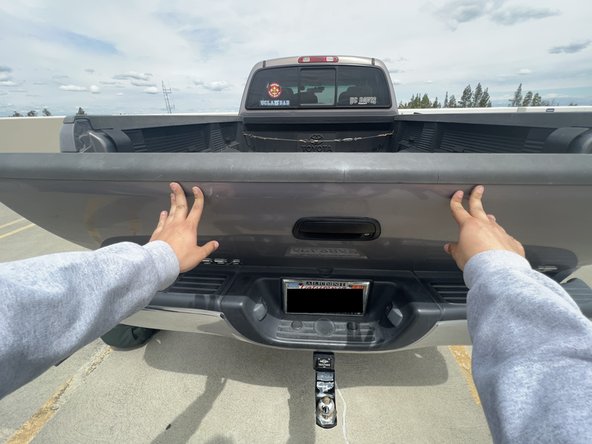

12. Lift the tailgate until it forms a 45° angle with the horizontal.

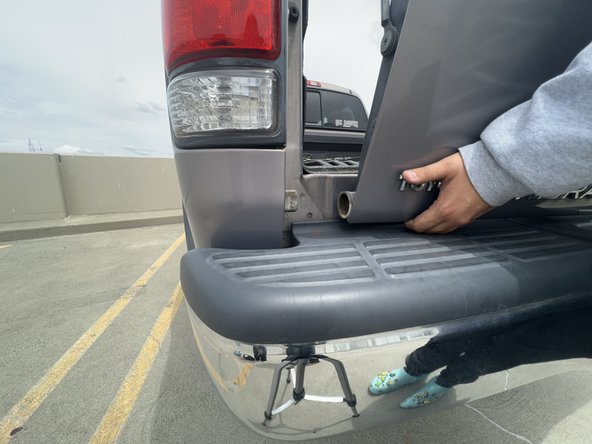

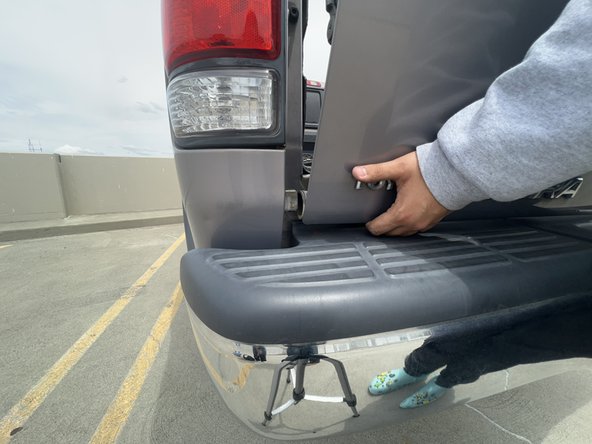

13. Detach the right side of the tailgate by lifting it away from the truck at a 45° angle.

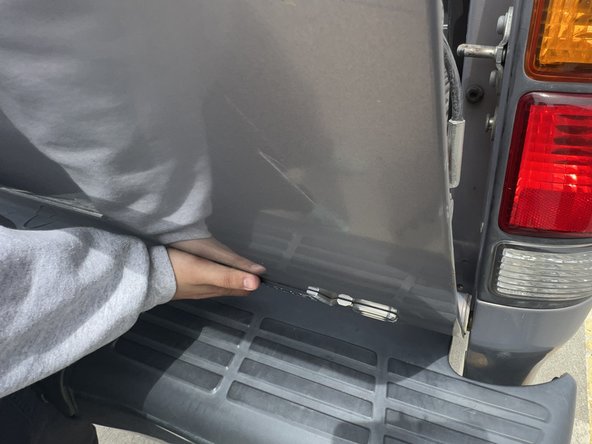

14. Pull the left side of the tailgate away from the left side of the truck to detach it.
