Whirlpool WED87HED Dryer Moisture Sensor Testing and Replacement

ID: 161056

Description: Use this guide to test the moisture sensor on...

Steps:

1. Before you begin your repair, unplug your dryer.
2. Your power cord may have four prongs rather than three. The additional prong is a ground connection.

3. Throughout this guide, keep track of each screw and reinstall it exactly where it came from.
4. Use a 5/16 inch nut driver to remove the two 15.7 mm-long screws securing the top panel to the rear panel bracket.

5. Grasp the top and slide it 1/2 to 1 inch toward the rear of the machine.

6. Lift the top panel upward to separate it from the chassis.
7. Remove the top panel from the machine.

8. Disconnect the control panel cable from the main board.

9. Disconnect the drum light connector.

10. Use a 1/4 inch nut driver to remove the two 16.3 mm‑long sheet metal screws located at each end of the control panel.

11. Lift the control panel up and tilt it away from the chassis to remove it.
12. Make sure to thread the cable through the hole in the chassis.
13. During reassembly, thread the cable through its proper hole before reinstalling the control panel.

14. Use a small flat blade screwdriver or a spudger to unlatch both sides of the door switch connector.
15. Unplug the connector.

16. Use a 1/4 inch nut driver to remove the three upper front panel 16.4 mm-long sheet metal screws.
17. Tilt the machine backwards and prop it securely, or have a friend hold it.
18. Use a 1/4 inch nut driver to remove the four sheet metal screws on the bottom edge of the panel:
19. Two 16.4 mm screws
20. Two 13 mm screws

21. Use a Phillips driver to remove the two 15.8 mm‑long screws inside the door area below the drum opening.

22. The panel is heavy and awkward. You may want to have a friend help you with this step.
23. Pull the bottom of the panel away from the chassis about two to three inches.
24. Lift the front panel off the small tabs on the chassis near the top of the panel and remove it.
25. Make sure you don't snag the door switch wire harness as you remove the panel.

26. Use a 5/16 inch nut driver to remove the 16.2 mm-long cover plate screw.

27. Remove the cover plate.

28. Mark the cables with a permanent marker if needed and take a picture or draw a diagram.
29. Use a Phillips driver or a 1/4 inch nut driver to remove the three 21.4 mm-long screws.
30. If your plug has 4 prongs, there will be a ground connection from the cord as well. Use a 5/16 inch nut driver to remove this connection.

31. Pull the cord carefully down through the round hole.
32. Make sure you replace the connections correctly when you reassemble.

33. Use a 5/16 inch hex driver to remove the 16.5 mm-long green ground screw.
34. Use a Phillips driver to remove the two 15.3 mm‑long cord terminal block screws.

35. Move the cord terminal block behind the rear panel.

36. Use a 1/4 inch nut driver to remove the eleven rear panel screws.
37. Ten 20 mm-long screws
38. One 12.9 mm-long screw under the water inlet.
39. Throughout this guide, keep track of each screw and reinstall it exactly where it came from.

40. Use a 1/4 inch nut driver to remove the 16.4 mm-length screw holding the main board bracket to the chassis.
41. Use a 1/4 inch nut driver to remove the two 20 mm-long screws from the top rear of the machine.

42. Put on gloves before continuing, as the rear panel is sharp.
43. Lift the panel about 1/2 inch and tilt it to the rear to release it from the vent pipe.
44. Slide the panel off the vent pipe and remove it.

45. During reassembly, perform the following:
46. Make sure that the vent pipe is fitted into the collar on the panel.
47. Make sure the tabs at the bottom are aligned to the bottom rim of the chassis.
48. Position the panel so its screw holes match with the chassis.

49. Pull the lint filter up out of the lint filter slot to remove it.
50. These photos show the front panel in place, but the procedure is the same if the front panel is already removed.

51. Use a 1/4 inch nut driver to remove the 16.4 mm‑long mounting screws securing the lint filter housing.

52. Pull the filter housing outward from the chassis and down to remove it.

53. Squeeze the locking tabs on the moisture sensor connector.
54. Disconnect the connector.

55. Label, photograph or make a sketch of the connector locations and of the main board bracket position on your machine.
56. Disconnect all of the connectors on the main board front half.

57. Label, photograph or make a sketch of the connector locations and of the main board bracket position on your machine.
58. Disconnect all the connectors from the rear half of the main board.

59. Use a 1/4 inch nut driver to remove the 12.8 mm‑long sheet metal screw that retains the main board to the main board bracket.

60. Lift the rear corner of the main board nearest to the side walls of the chassis.
61. You want to release the locking tab on the side of the main board.
62. Slide the main board toward the front of the dryer to release the tabs securing it to the main board bracket.

63. Remove the main board from the main board bracket.

64. Use a 1/4 inch nut driver to unfasten the 16.4 mm‑long sheet metal screw holding the main board bracket.

65. Lift off the main board bracket from the chassis and turn it so the bottom is exposed.
66. Using long nose or slip joint pliers, pinch the locking wings of the harness retainer clamp.
67. Separate the harness from the main board bracket and remove the main board bracket.

68. Use a 1/4 inch nut driver to remove the two screws securing the upper front bulkhead to the front of the chassis.
69. One 16.4 mm-long sheet metal screw
70. One 19.8 mm-long sheet metal screw
71. Use a 1/4 inch nut driver to remove the two 16.5 mm‑long sheet metal screws securing the top plastic portion to the upper front bulkhead.

72. Remove the upper front bulkhead and set it aside.

73. Take careful note of the belt path before proceeding.
74. Be very careful during this step! The idler arm is under spring tension and may pinch you, or it could damage the belt switch if the arm is allowed to snap down.
75. Push the idler arm (the metal upside-down "L") up to relieve the tension on the drive belt.
76. Remove the belt from the motor pulley.
77. Gently lower the idler arm until it rests parallel to the dryer floor.
78. During reassembly, refer to your notes or the belt path link to rethread the drive belt.

79. Use a 1/4 inch nut driver to remove the four screws securing the lower front bulkhead.
80. Two 16.1 mm-long sheet metal screws on the left side of the lower front bulkhead.
81. Two 13.2 mm-long sheet metal screws on the right side of the lower front bulkhead.

82. While supporting the drum, lift the lower front bulkhead off of the hooks on the chassis.

83. Lower the bulkhead about 2 inches to free the drum rollers tucked under the drum.

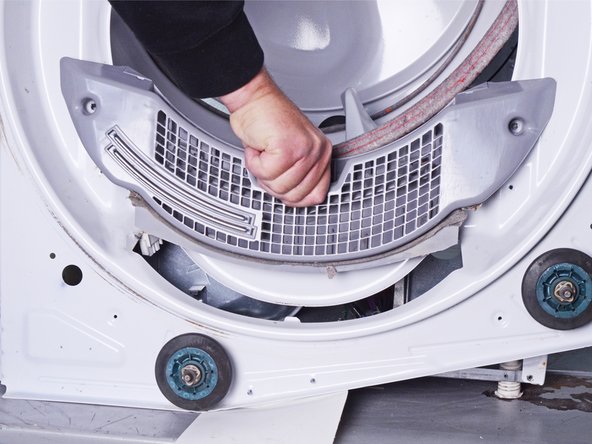

84. While supporting the drum, remove the lower front bulkhead.
85. During reassembly, tilt the bulkhead to the right to get the rollers under the lip on the front of the drum. Once the drum is on the rollers, you can move the bulkhead to the upright position.

86. Use a Phillips screwdriver to remove the two 23 mm‑long screws on the filter holder.

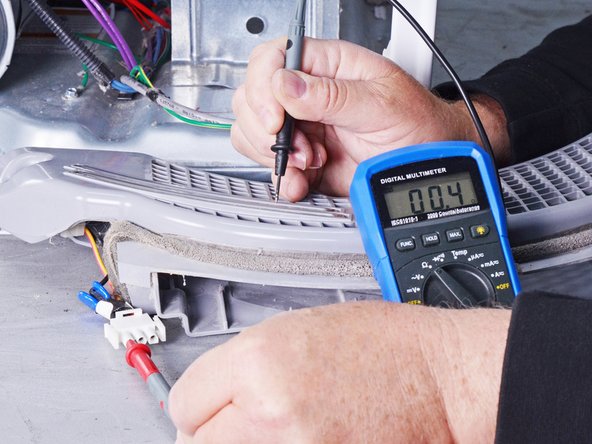

87. The two metal strips on the filter holder are the moisture sensor contacts.

88. Grab the filter holder and pull it straight up out of the lower front bulkhead.
89. Remove the filter holder.

90. The next two steps will require a multimeter. If you aren't familiar with how to use one, here is a guide that will help you.
91. Set the multimeter to resistance (Ω) and check the continuity between the two metal strips and their respective ports located on the outside edges of the connector.
92. Trace the connector wires on the back of the module to match each port to a metal strip.
93. If the strips show continuity (less than 1 Ω) to the connector, go to the next step.
94. If either strip shows an open circuit (OL) to its connector, skip the next step.

95. Use your multimeter to test that there's no contact between the two strips. Your meter should read OL.
96. If there's some resistance value between the strips, check for physical contact between the strips.
97. If there's physical contact like a bent strip or a cracked holder, replace the holder.
98. If there's some resistance value, and there's no physical contact between the strips, go to the next step to replace the connector module.

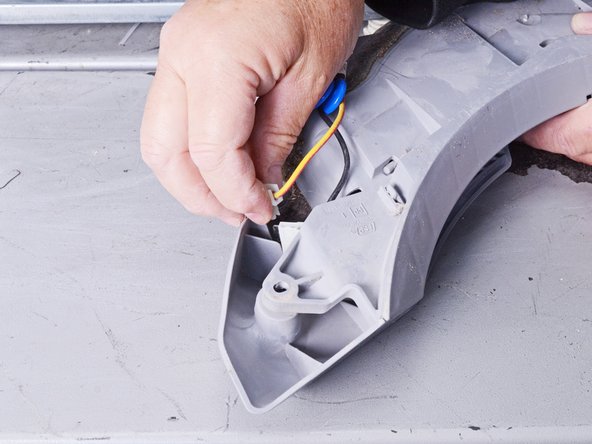

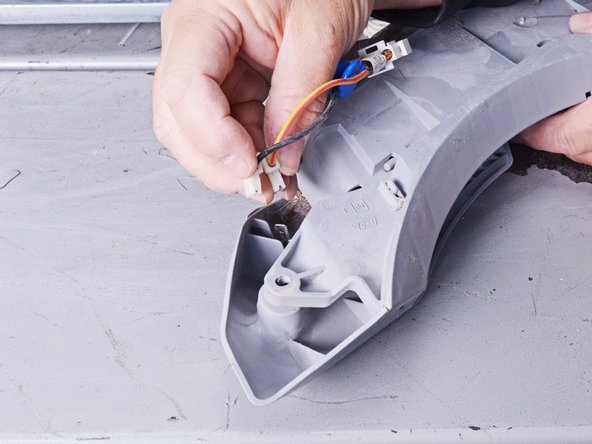

99. If the connector module is bad, pull the two moisture sensor connectors straight out of the sockets on the module wiring, to disconnect the module.
