How to Remove The Soleniod Valve Whirlpool WED87HED Prereq

ID: 161083

Description: For Shell guide filer

Steps:

  1. Use a 1/4 inch nut driver to remove the 12.9 mm‑long sheet metal screw securing the solenoid valve.
    2. Step image

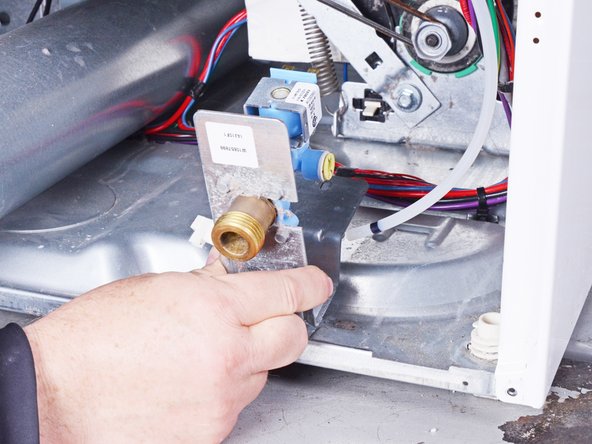

  2. Tilt the solenoid valve toward you to disengage the tab from under the rim of the dryer frame.

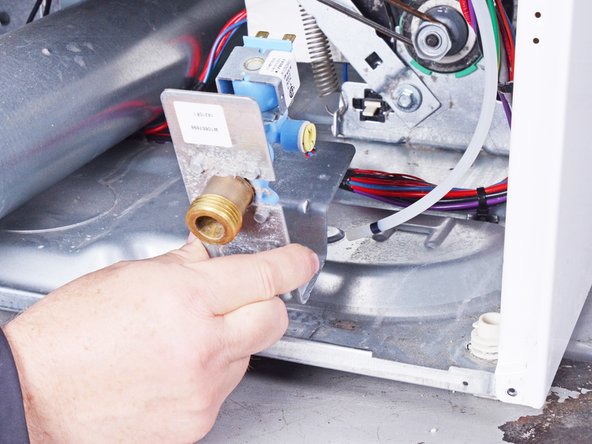

  3. Lift the solenoid valve upward and remove it.
    4. Step image Step image Step image
