NuWave Brio 37001 Basket Handle Replacement

ID: 161125

Description: This guide demonstrates how to replace the...

Steps:

  1. Unplug your NuWave appliance and ensure it has not been used within the last 20 minutes so that it is properly cooled down. Following this guide with an appliance that is still hot or powered on may result in injury.
  2. Remove the basket from the NuWave's tray.
  3. After removing the basket, push forward on the handle tab and pull upwards to release the basket from its casing.
    4. Step image

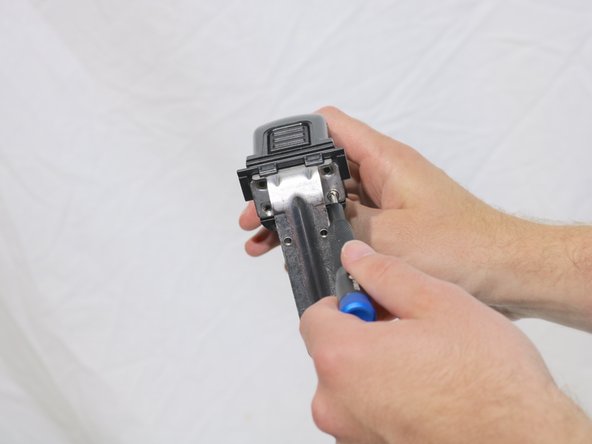

  4. Remove the four 10 mm screws connecting the handle to the basket using a Phillips #1 screwdriver.
    5. Step image
  5. Remove the four 6 mm screws arranged in a rectangle around the handle using a Phillips #1 screwdriver.
  6. Remove two 12 mm screws just below the previous four using a Phillips #1 screwdriver.
  7. The two 12 mm Phillips #1 screws are in a tight spot and may be tricky to remove.
    8. Step image Step image
  8. Separate the metal bracket from the handle.
    9. Step image
