LG Optimus L7 II P710 motherboard removal

ID: 161258

Description: In this disassembly, the motherboard of the LG...

Steps:

1. Carefully remove the back cover with a fingernail or similar.

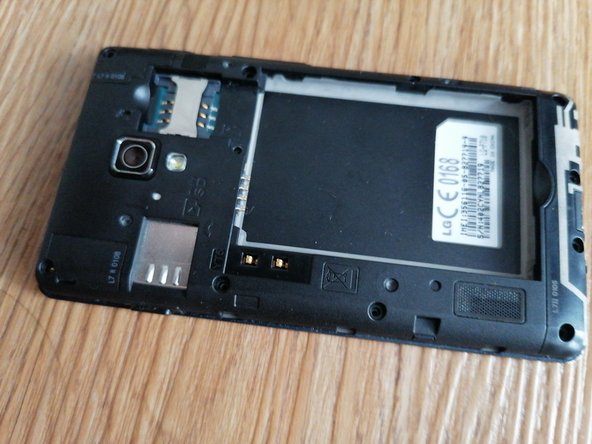

2. Carefully remove the battery with a fingernail or similar.

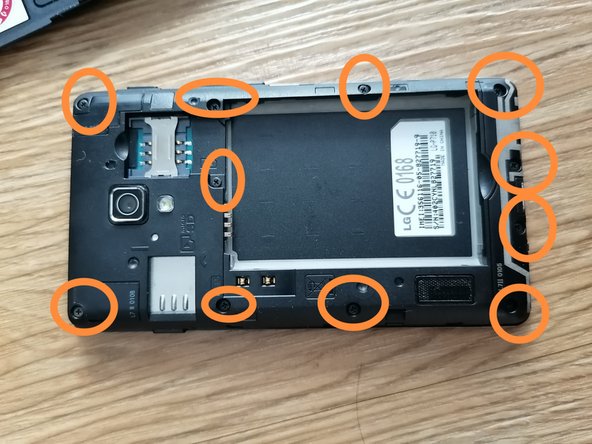

3. Remove all the screws with a PH00 screwdriver.

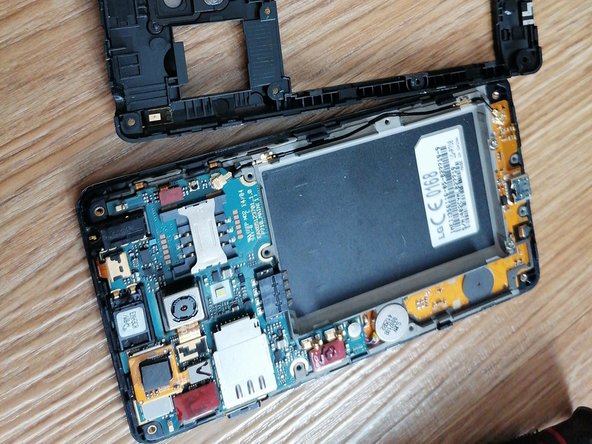

4. Carefully lever the midframe upwards with an EIE 0.3X1.2 screwdriver, starting at the bottom right and then levering upwards to the top right until the entire device has been levered up on all sides. The on/off and volume buttons fall out, those will have to be replaced later.

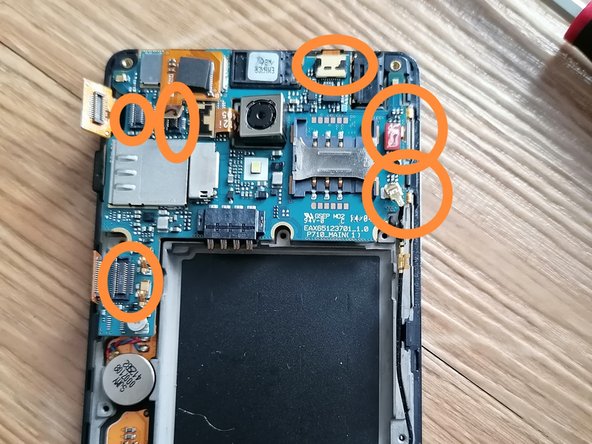

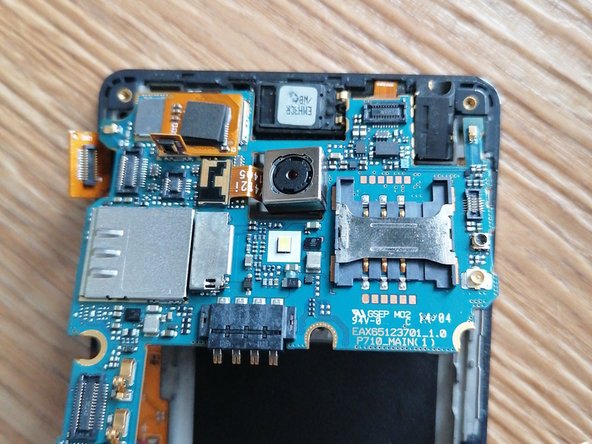

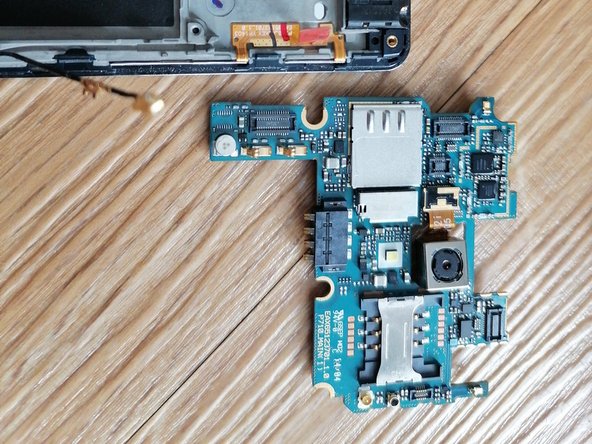

5. Now carefully disconnect all marked cables. Then carefully lever the motherboard upwards with an EIE 0.3×1.2 screwdriver. You will notice that a microchip is stuck to the motherboard, which must be released carefully without destroying it.
