2004-2008 Ford F-150 Windshield Wiper Replacement

ID: 165202

Description: Windshield wipers keep rain, sleet, and snow...

Steps:

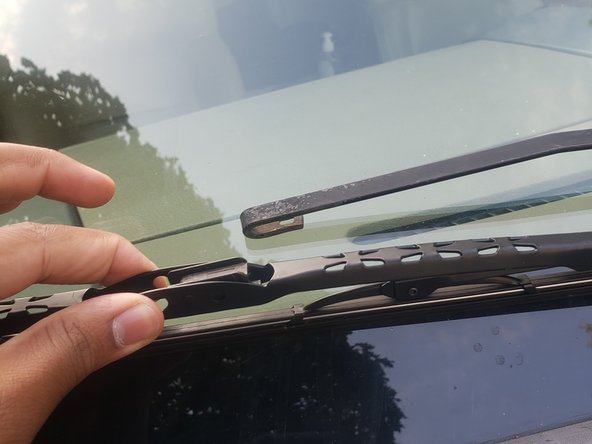

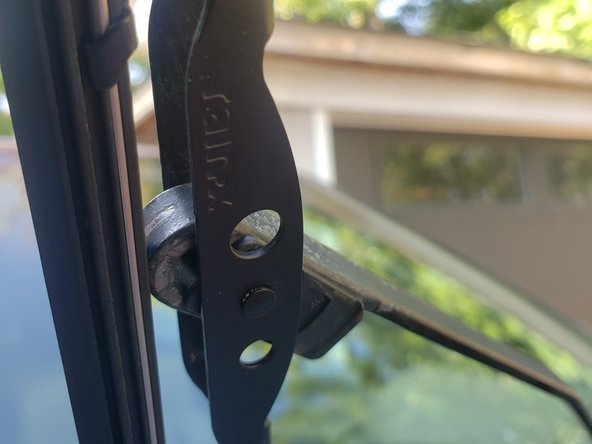

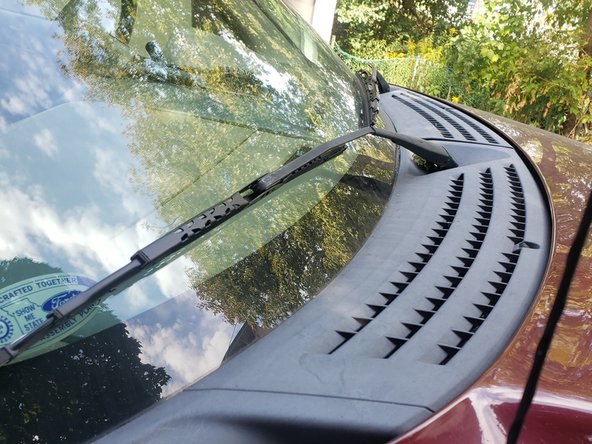

  1. Lift the wiper blade off the windshield.
  2. Step image Step image

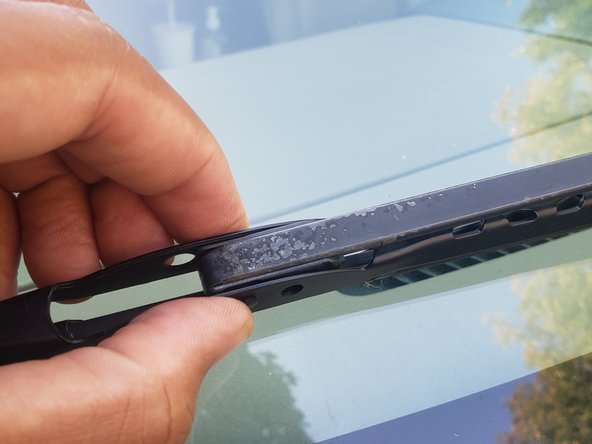

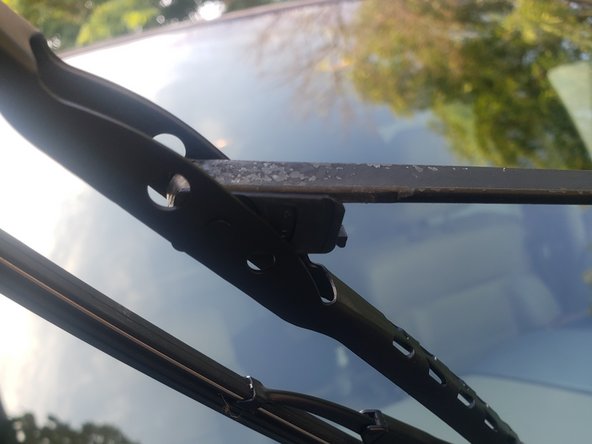

  3. Squeeze and push the clip holding the wiper in place towards the wiper arm.
  4. This step does not require a lot of force, and should be done without forcing the wiper.
  5. Step image Step image

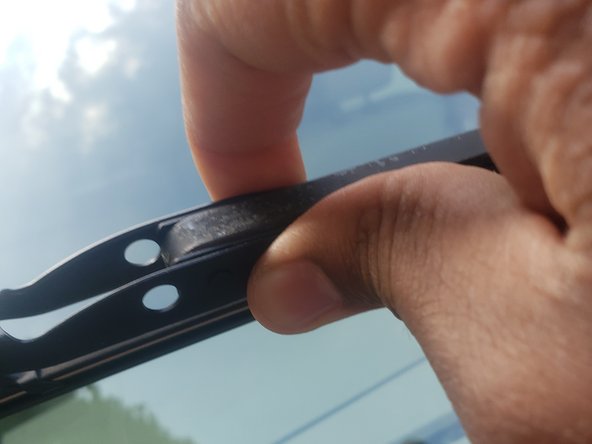

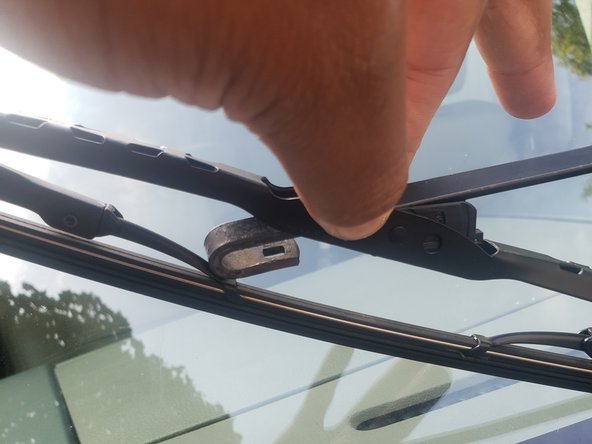

  6. Push the old blade down and away from the wiper arm to disconnect it.
  7. Step image Step image

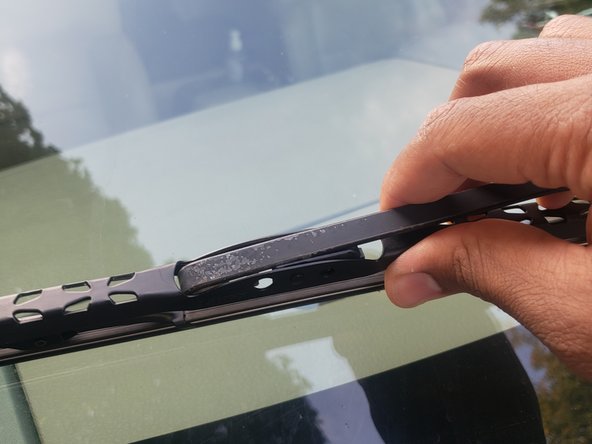

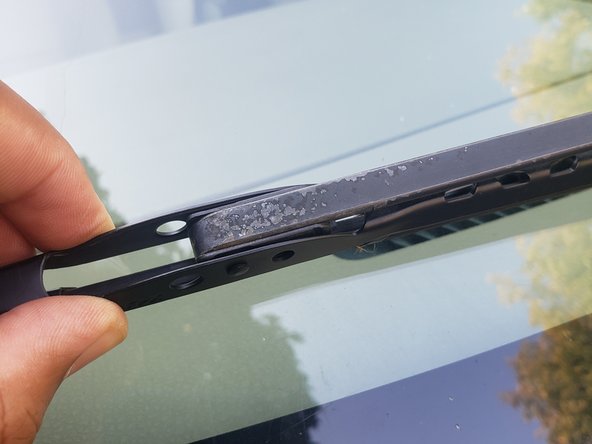

  8. Position the new blade so the hook is pointed towards the blade attachment.
  9. Put the hook over the top of the blade attachment.
  10. Step image Step image Step image
  11. Pull the blade to the end of the arm.
  12. Step image Step image
  13. Pull until you hear a click.
  14. Do not pull too hard because the clip can break in this process.
  15. You are finished!
  16. Step image Step image
