2011 Toyota Sienna Headlight Bulb Replacement

ID: 165245

Description: If you need to replace a headlight bulb on your...

Steps:

  1. Pull out the hood release latch located towards the lower left of the steering wheel.
  2. Step image Step image Step image
  3. Hold up the hood safety latch with one hand and lift the hood of the car with the other hand.
  4. Pull the hood all the way up to ensure it engages and stays up.
  5. Step image Step image Step image

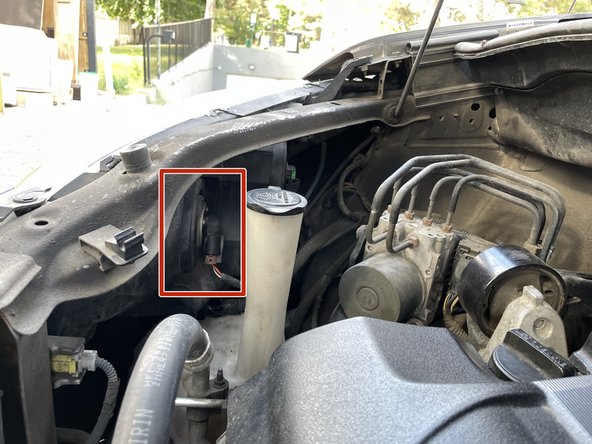

  6. Locate the headlight bulb housings on each side if the hood.
  7. It's advisable to replace both headlights even if only one is burned out. The other light is likely to go out soon, and replacing both now can help avoid additional repairs.
  8. Step image Step image

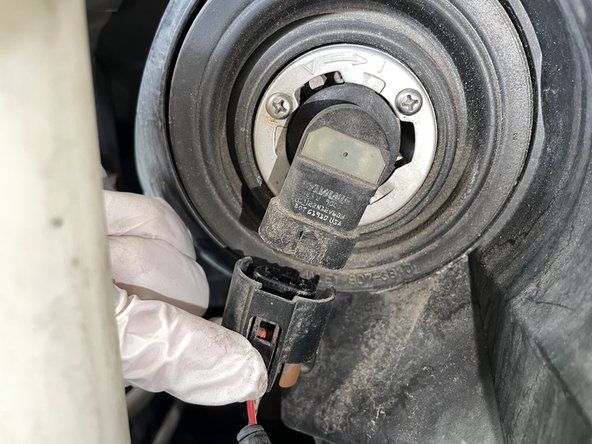

  9. Push the button on the electrical connector until you hear a click.

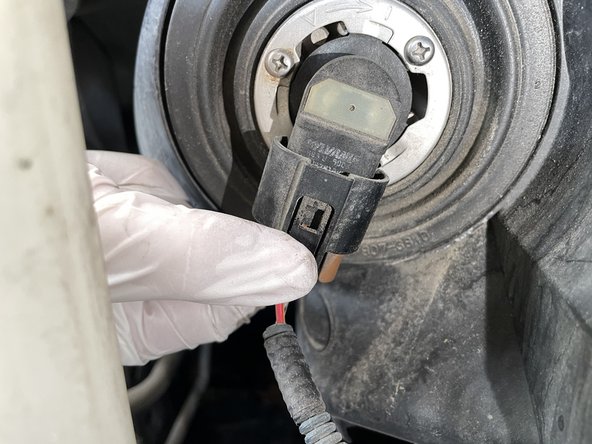

  10. Pull down to remove the electrical connector.
  11. Step image Step image Step image

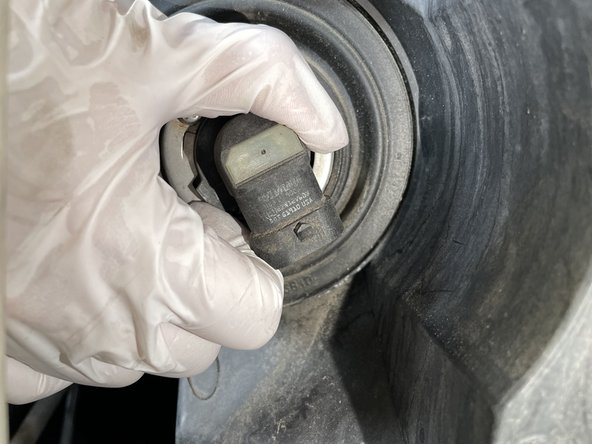

  12. Twist the bulb counter clockwise.
  13. Step image Step image
  14. Pull out the bulb.
  15. Insert your new light bulb.
  16. If you are not wearing gloves, avoid touching the glass part of the bulb since the oils from your skin will damage the bulb.
  17. Step image
