2017-2022 Honda CRV Cabin Air Filter Replacement

ID: 165270

Description: If it's time to change the cabin air filter on...

Steps:

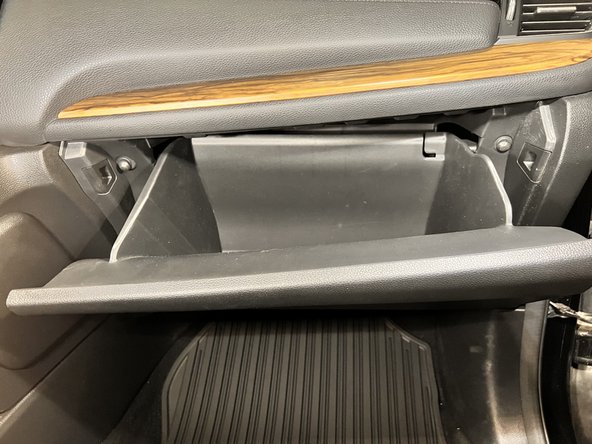

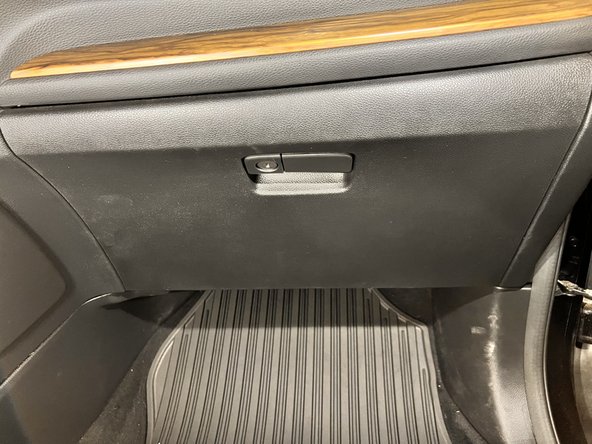

1. Locate the glovebox and empty everything inside.
2. The glovebox is on the right side of the vehicle, in front of the passenger seat.
3. The glovebox can be opened by pulling on the handle.

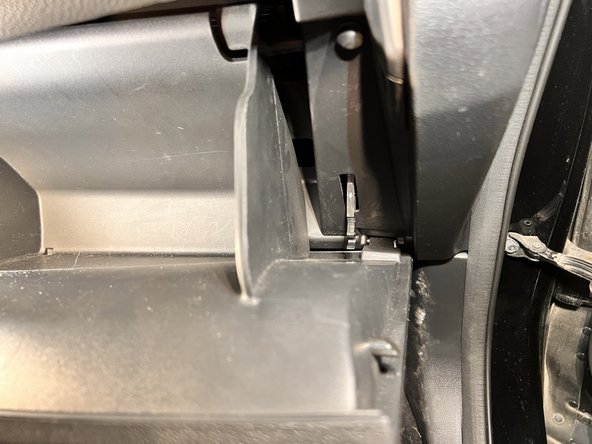

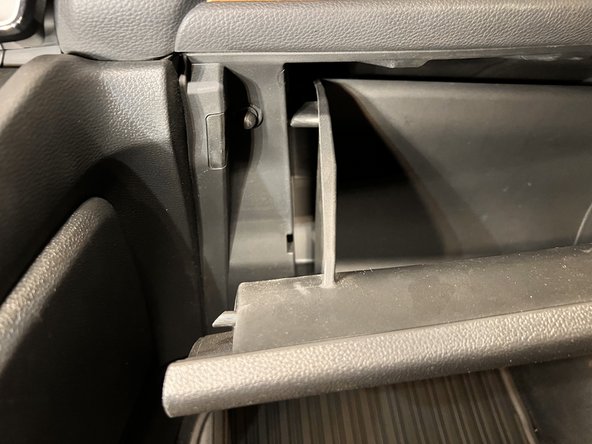

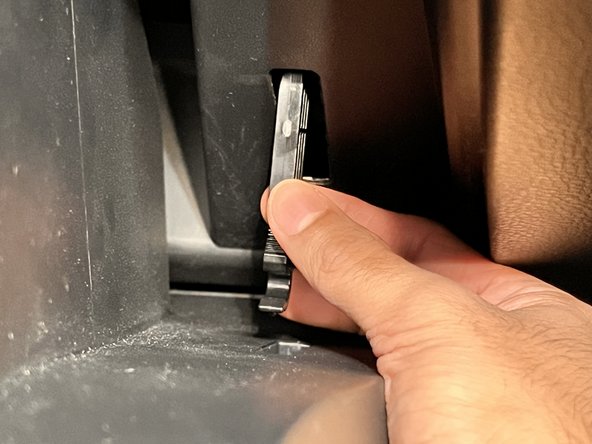

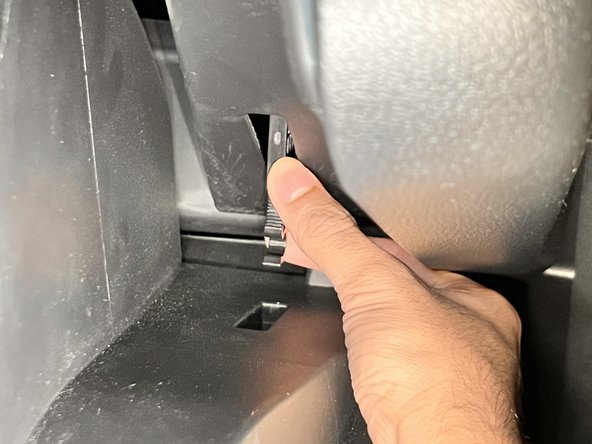

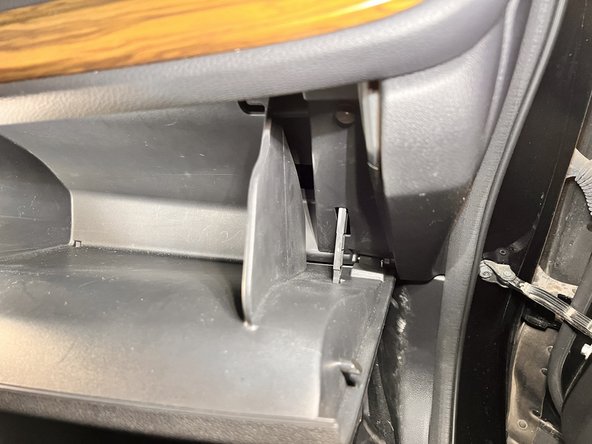

4. On the right side of the glovebox, push the lever back.

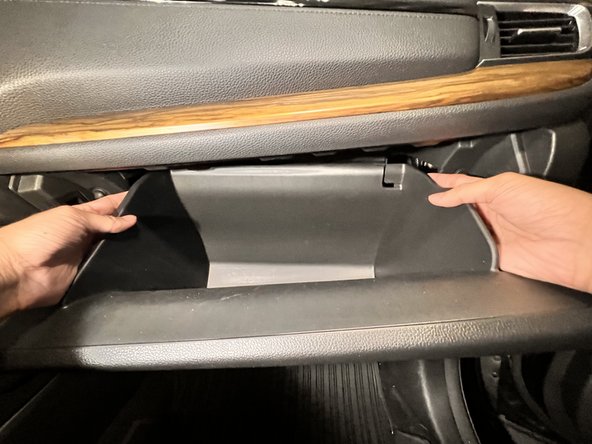

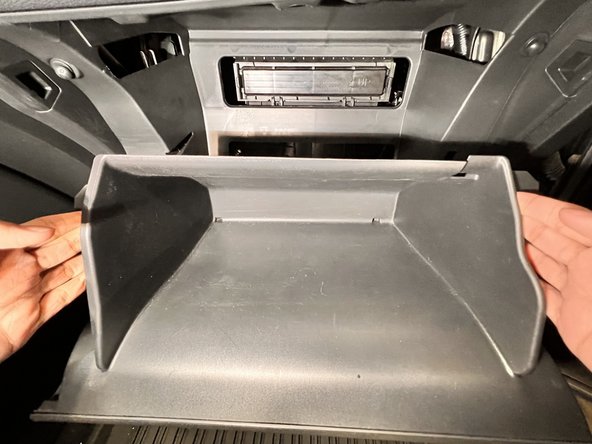

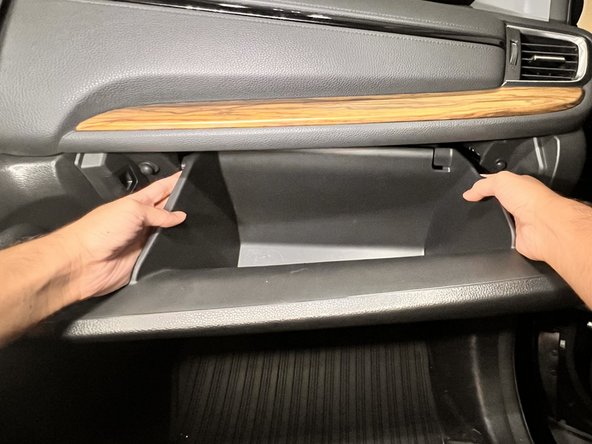

5. Push in on each side of the glovebox and lower it down.

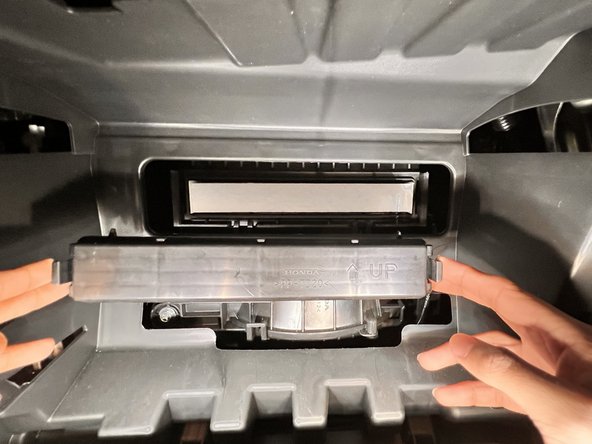

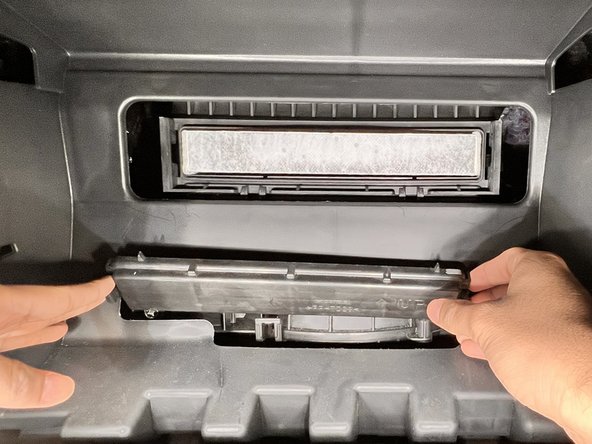

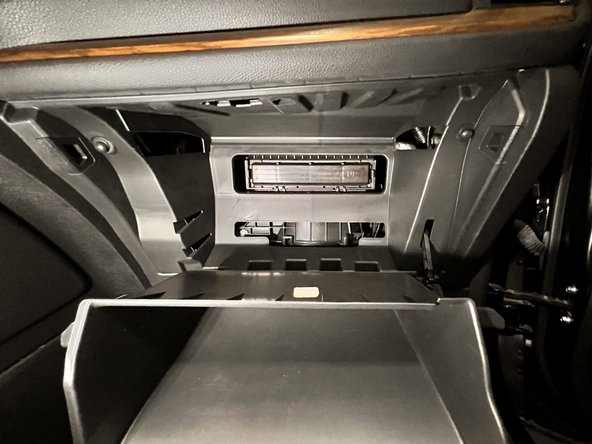

6. Remove the cover on the air filter by pushing in on the tabs on the sides.

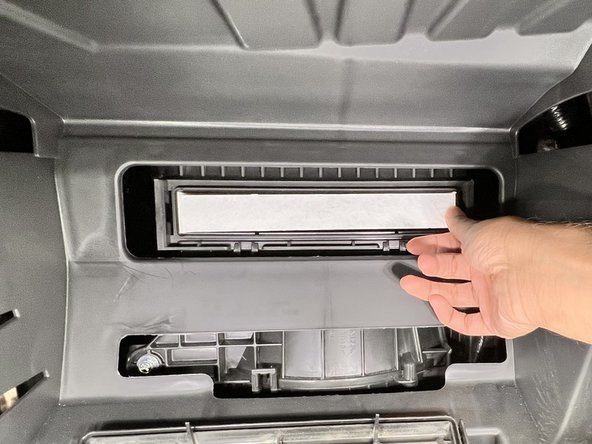

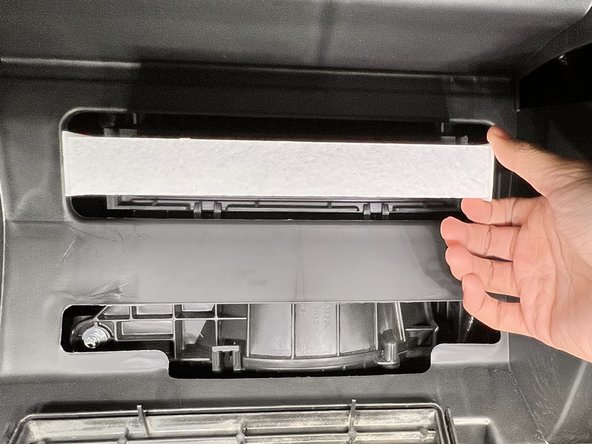

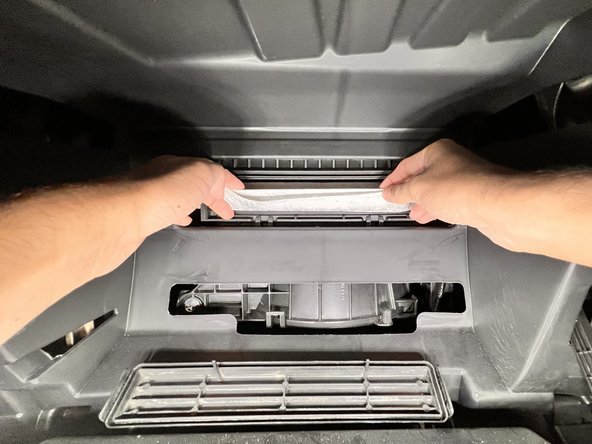

7. Gently pull the old cabin air filter out.

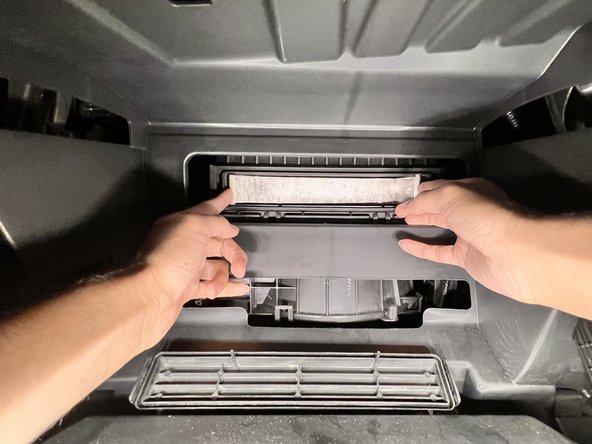

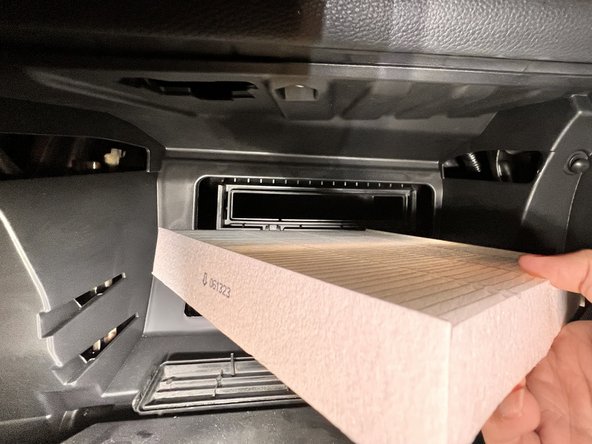

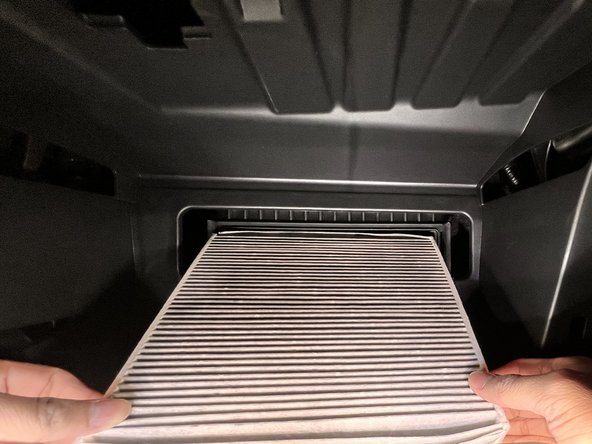

8. Insert the new cabin air filter in.
9. The arrows should be pointing down when you insert the new filter .

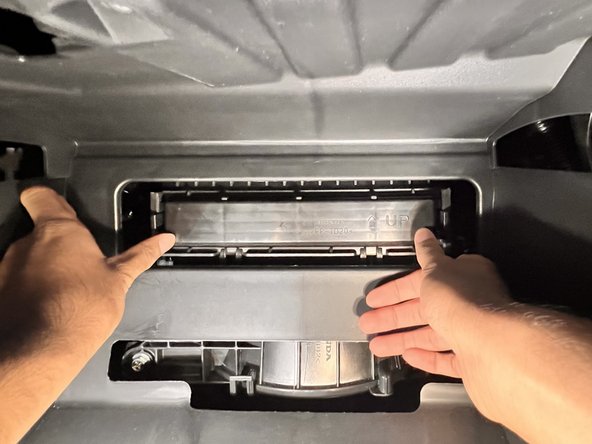

10. Put the cover back on the filter.

11. Push in on both sides of the glovebox while lifting it up.

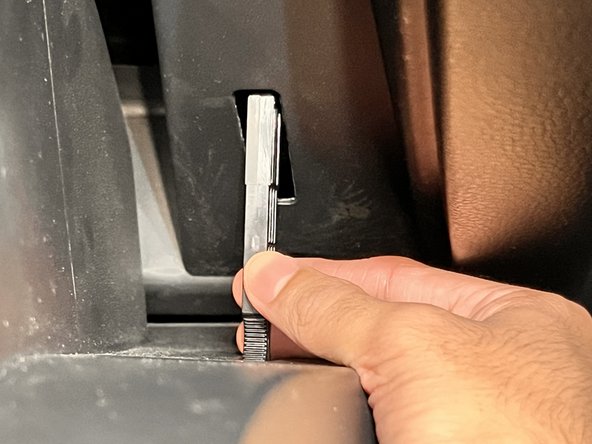

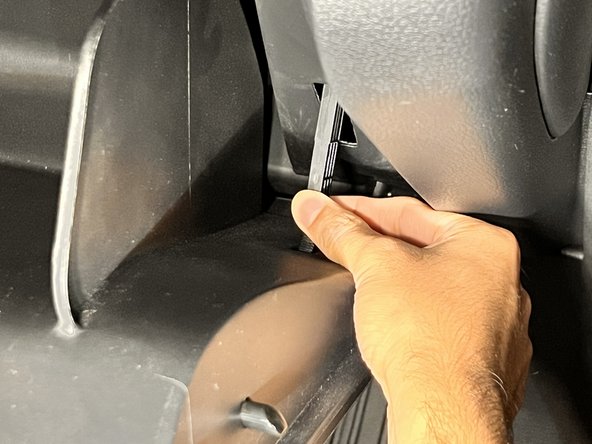

12. Clip the lever back onto the glovebox.

13. Close the glovebox.
