Toyota Sienna 2009 Lightbulb Replacement Replacement

ID: 165332

Description: This is a guide on how to replace a 2009 Toyota...

Steps:

1. Locate the latch on the bottom left of steering wheel.
2. Once found, pull in your direction.

3. Now that you have unlocked the hood, locate the latch on top of the logo to fully release the hood.
4. Once found, lift the latch upwards and you have now freed the hood.

5. Locate the lightbulb by locating the access compartment.

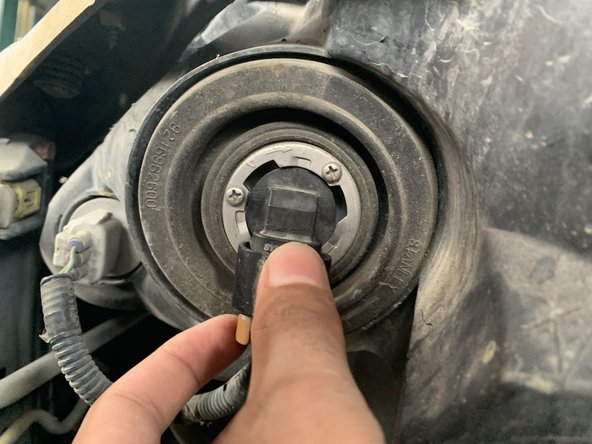

6. Once located, twist the compartment counter-clockwise and pull to free the lighbulb.

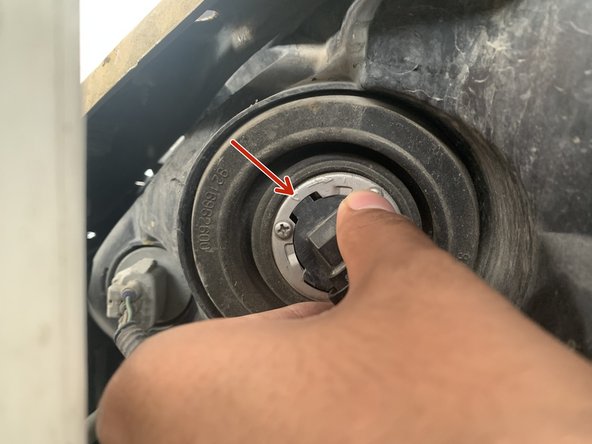

7. The plastic holding the compartment in place should appear in the gap shown in the picture.

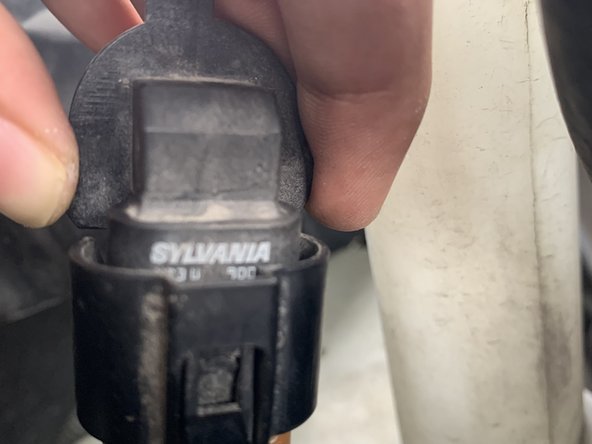

8. Turn the back of the bulb connector towards yourself, and prepare to remove the clasp, freeing the bulb.

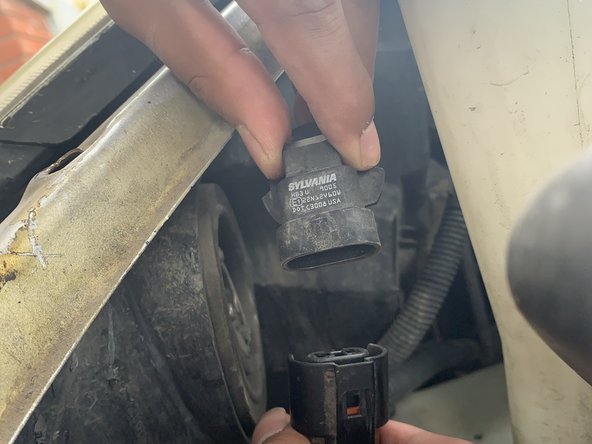

9. In order to free the bulb, press firmly on the clasp, and pull with enough force to pull it out, but not enough to break it.

10. Once you have the new lightbulb ready, it is time to put everything back together.

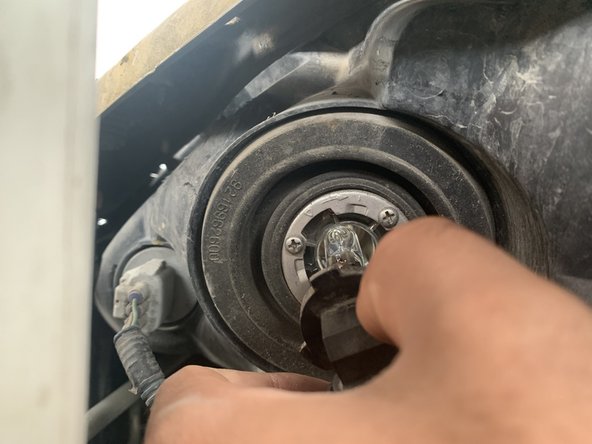

11. Simply press the new bulb into where the old one was, making sure it is locked into the clasp.

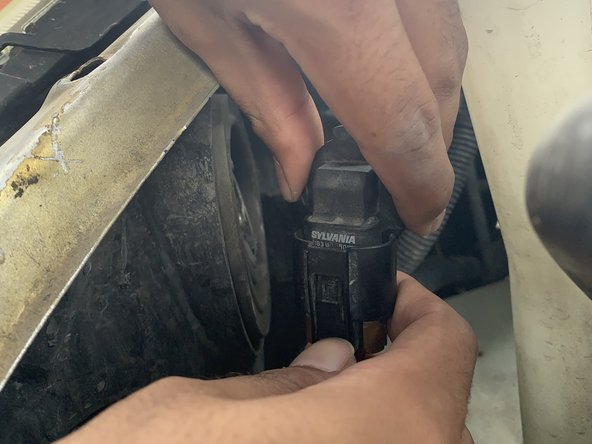

12. Line the connector with the empty point of where it is supposed to be locked in.

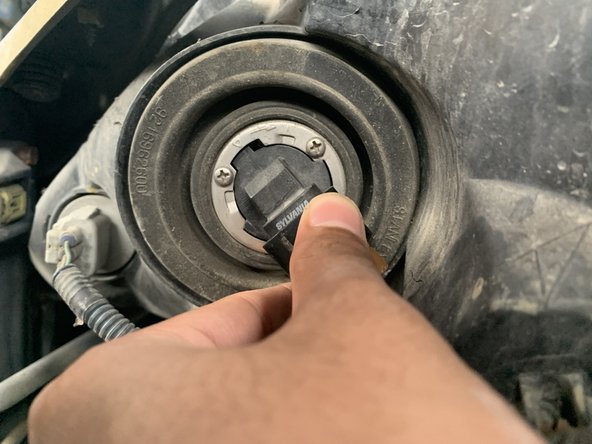

13. And this time, twist it clockwise to lock it into place.

14. That's it! You are all done! Congratulations on accomplishing this easy and simple fix.
