1990-1993 Honda Accord EX Engine Air Filter Replacement

ID: 167832

Description: To make sure the engine of your 1991 Honda...

Steps:

  1. Flip the switch underneath the steering wheel to open the hood.
  2. Step image Step image Step image
  3. Open the hood, and keep it in place using the prop rod.
  4. Step image Step image Step image

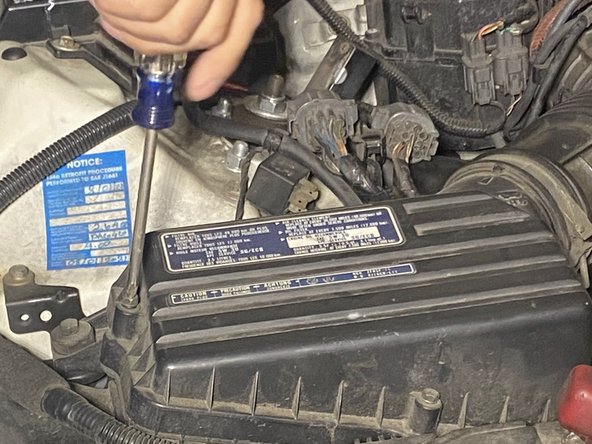

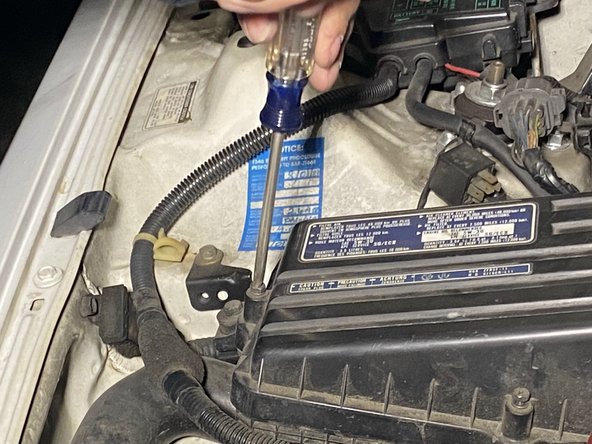

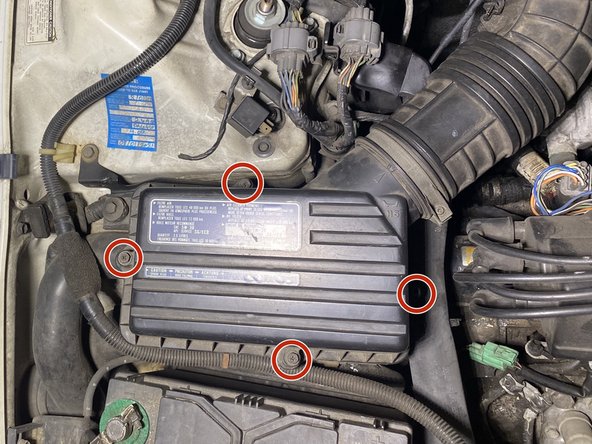

  5. Remove the four 1.3 cm Phillips screws from the cover of the case.
  6. Step image Step image

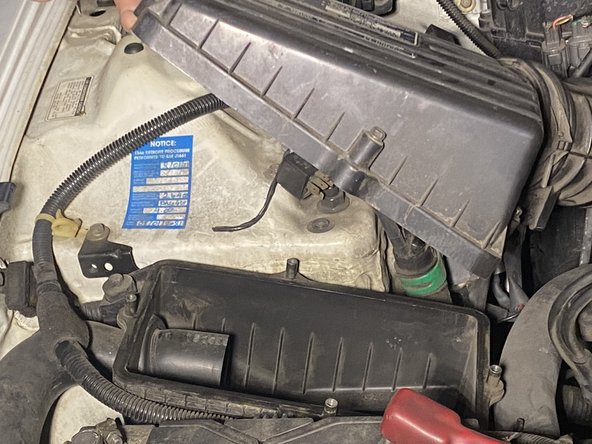

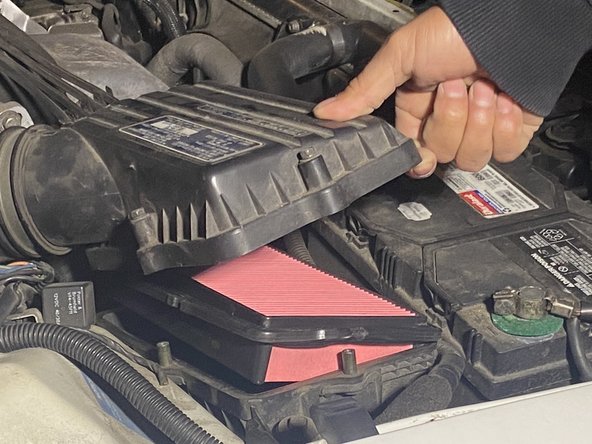

  7. Remove the cover of the casing.
  8. Step image Step image

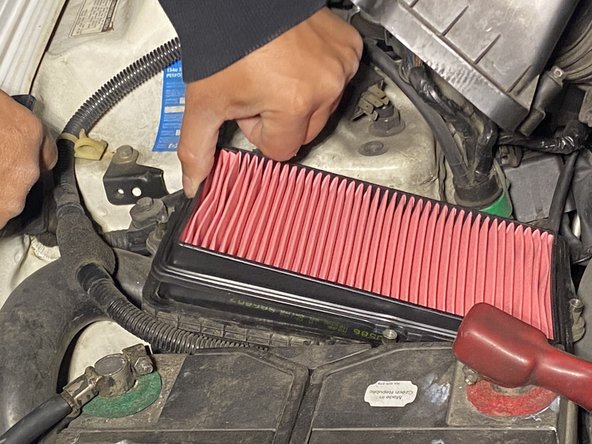

  9. Remove the old air filter and replace it with a brand-new one.

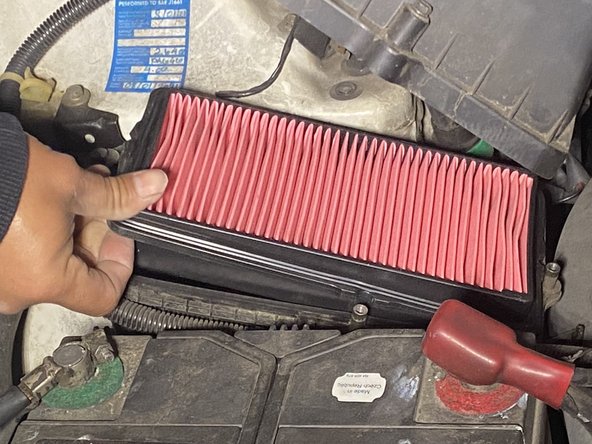

  10. Place the new air filter in the same position as the old one otherwise, you will not be able to screw the cover back on.
  11. Step image Step image Step image

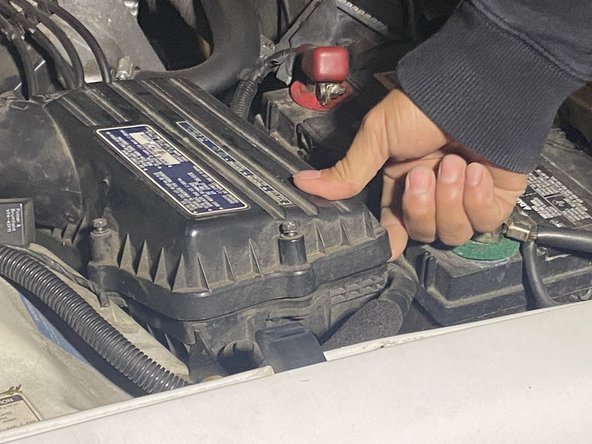

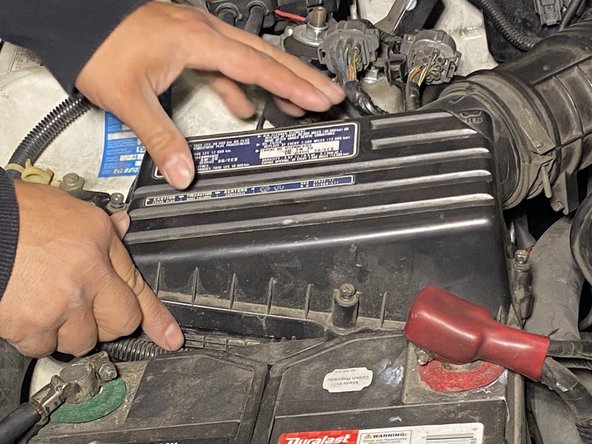

  12. Place the cover back on the casing and screw it back in place.
  13. Do not tighten the screws too hard or you risk the chance of breaking the screws.
  14. Step image Step image
