MSI PE70 6QE-035US Fan Replacement

ID: 167850

Description:

Steps:

1. Start by flipping the device over to the backside.
2. Using the Phillips #0 screwdriver bit, unscrew all screws on the back panel.

3. after the back of the laptop is off, unscrew all the black and silver screws holding in the heat sink and fan covers.
4. There should be 8 silver, 6 black, and 14 screws in total.

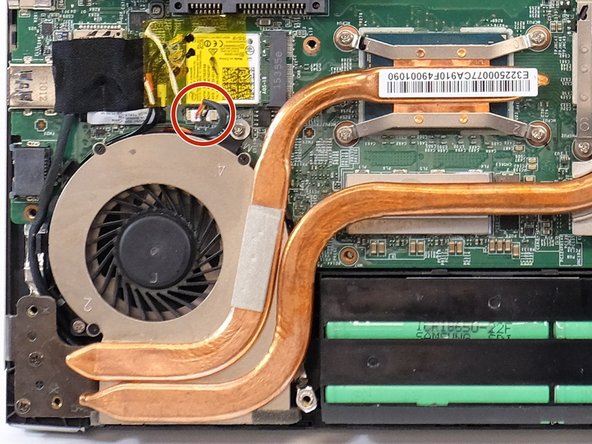

5. disconnect the wires that go from the fans to the motherboard.
6. then remove the fans from the mother board.
