How to Clean PDP Afterglow Deluxe+ Button Contacts

ID: 168131

Description:

Steps:

1. Use a screwdriver to remove the six screws from the back of the controller.

2. Open up the shell and remove the weights in the grips.

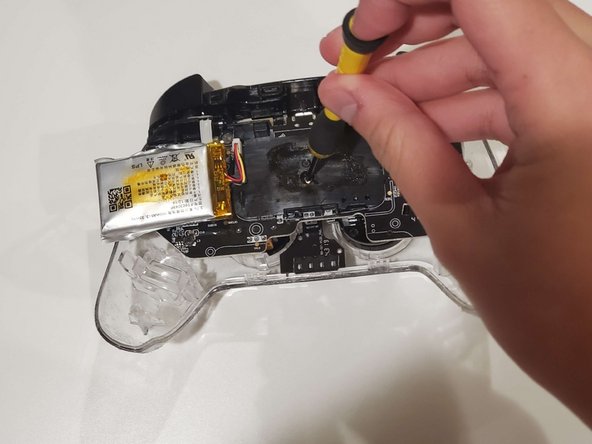

3. Pull out the battery and remove the screws underneath.

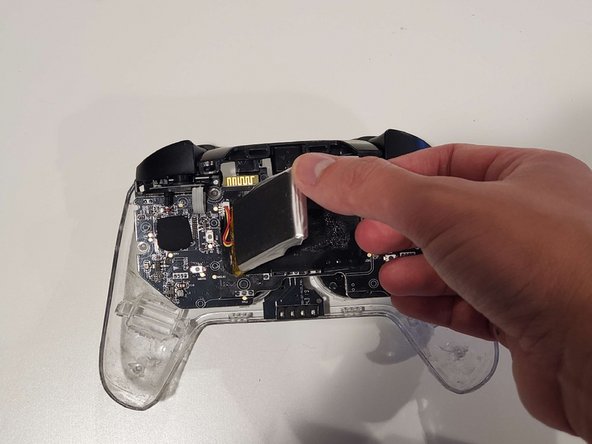

4. This component is glued to the controller, so it may take some force to remove.
5. Remove the two screws on the circuit board.

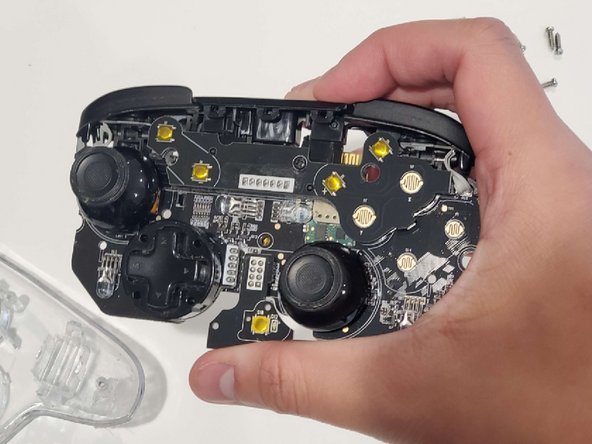

6. Remove the circuit board from the shell.

7. Use a cotton swab to clean up the areas the buttons come in contact with.
