2015-2023 Ford Mustang Taillight Assembly Replacement

ID: 168153

Description: If the brake light or turn signal of your...

Steps:

1. Locate the two knobs inside the car's trunk.
2. Unscrew both knobs using your hand.

3. Locate the highlighted plastic rivet inside the car's trunk.
4. Place your trim removal tool under the rivet.
5. Pop the rivet out using the trim removal tool.

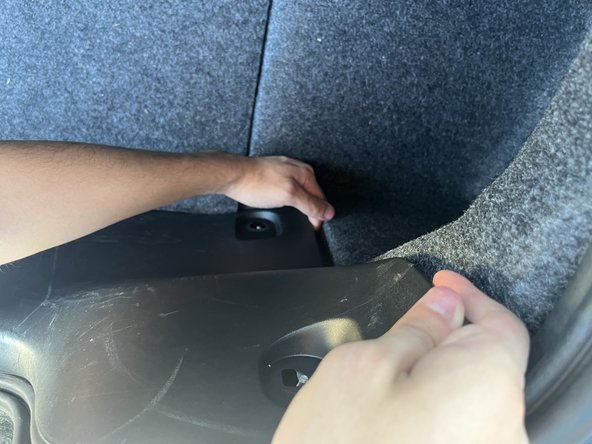

6. Grab the plastic trim and move it out over the bolts sticking out.

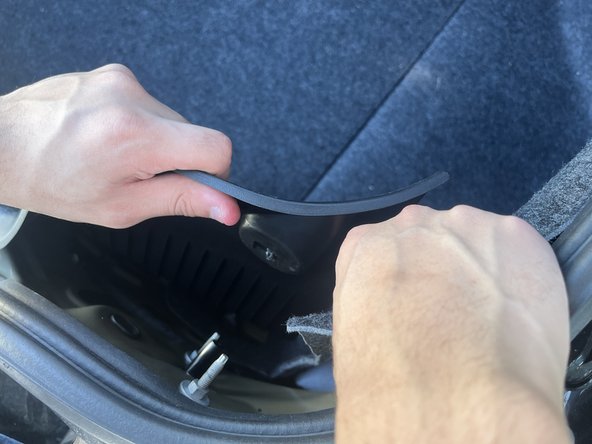

7. Move the carpet with your hands so that it is above the plastic trim.
8. The carpet should be held in place by the plastic trim.

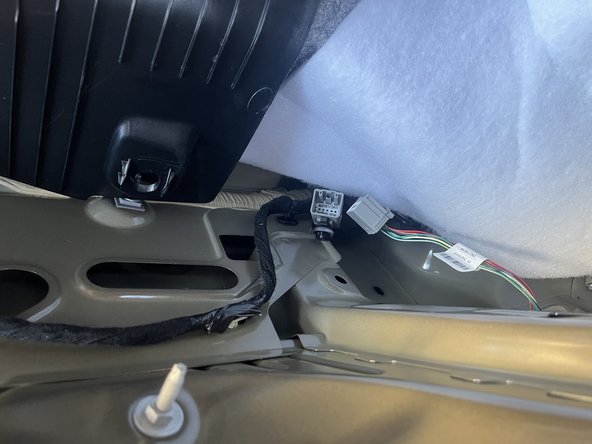

9. Locate the wiring harness

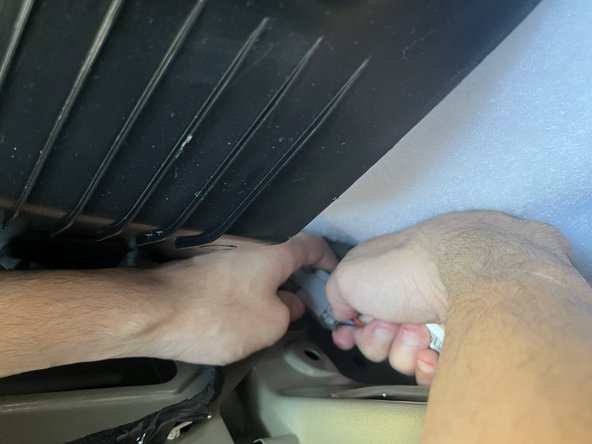

10. Unplug the wiring harness by pressing down on the securing tab and separating them.
11. The harness should separate easily, do not force it or else damage may occur.

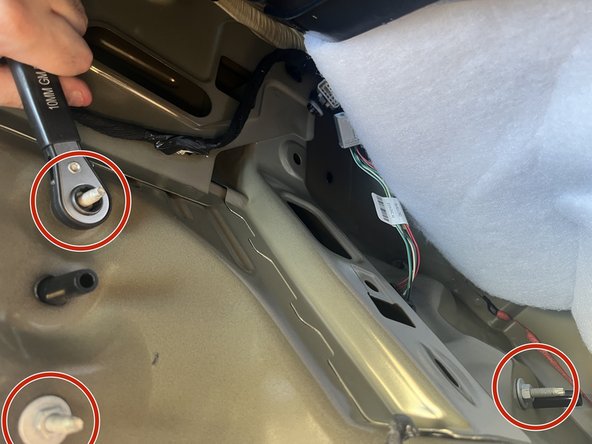

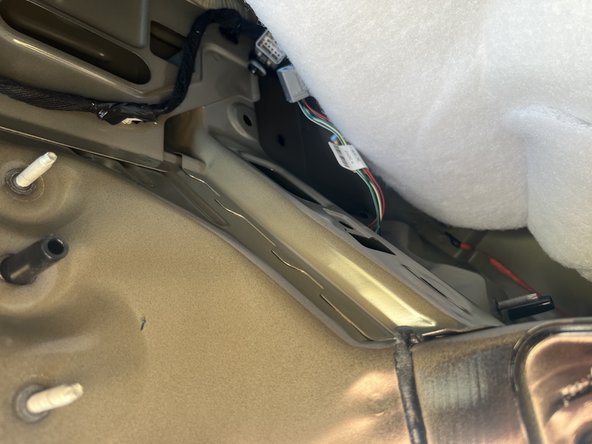

12. Locate the three 10 mm hex nuts behind the carpet.
13. Remove the 10 mm hex nuts using a 10 mm wrench.

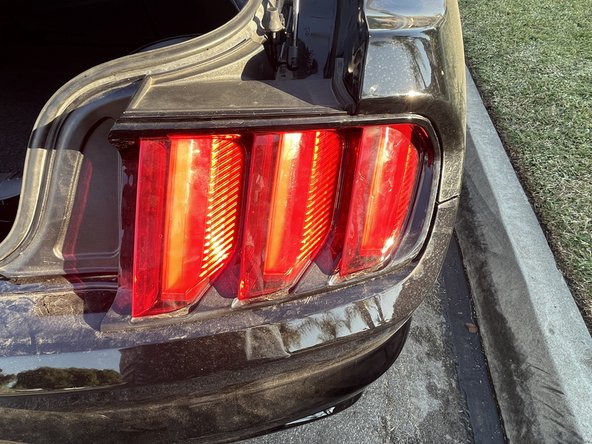

14. Pull the taillight assembly out towards the direction of your body.
15. Force may be required.

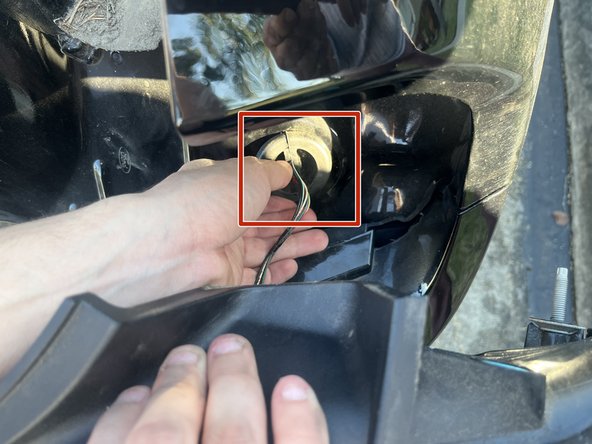

16. Lift up on the rubber seal and pull out the wiring harness.

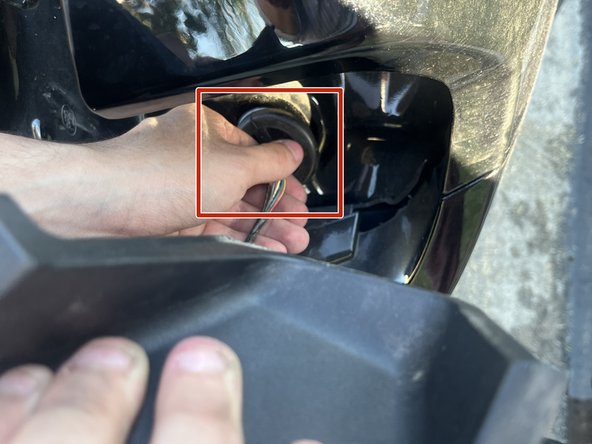

17. Route the wiring harness of the new taillight assembly into the highlighted hole.
18. Make sure that the rubber is properly sealing to prevent moisture from entering the car.

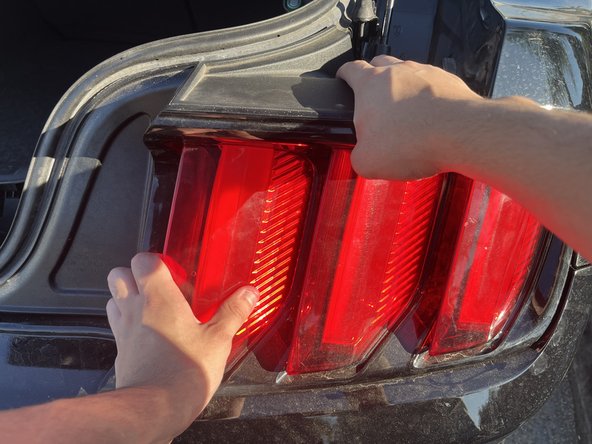

19. Slide in the new taillight assembly.
20. Align the three threads on the back of the taillight assembly with the three holes on the bumper.
