Disassembling Samsung Refrigerator RF4287HA** Door

ID: 170787

Description:

Steps:

  1. With the door open, use a flathead screwdriver to remove the "Cap Top Table"
  2. Be gentle and take care not to scratch or damage the plastic parts.
    3. Step image
  3. Remove the 3 screws from the top that hold down the "Top Table"
  4. Remove the Top Table
    5. Step image

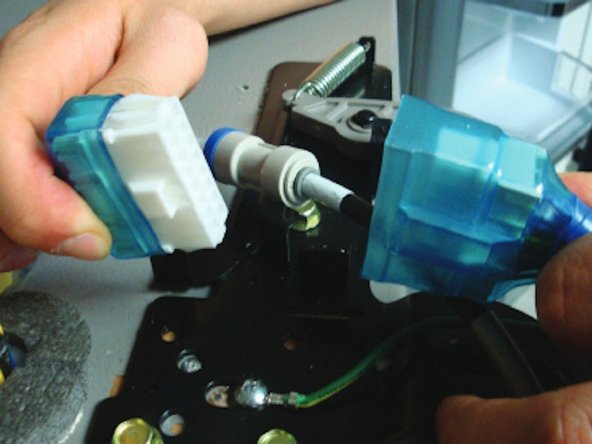

  5. Disconnect the electrical connector located above the upper left door hinge.
  6. To disconnect the connector, press the raised end of the white part while pulling out.
  7. Make sure to unplug the appliance before disconnecting anything.

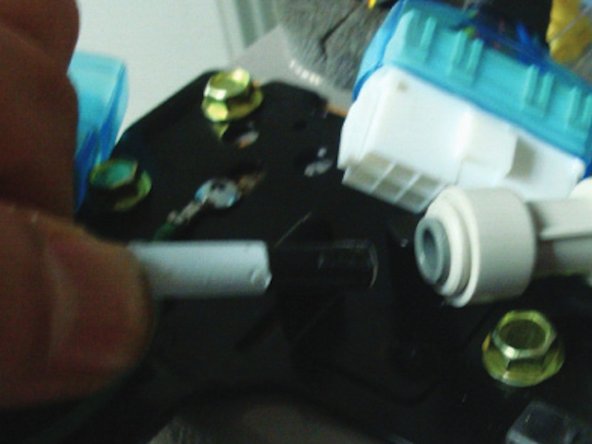

  8. Disconnect the water tube by pulling the tube fitting out away from the white plastic connector.
    9. Step image Step image Step image
  9. Using a Philips Head Screwdriver, remove the grounding screws.
  10. Use a 10mm Socket Wrench to remove the 3 hex bolts.
    11. Step image
  11. Disconnect the LED Housing using a Philips Head Screwdriver
  12. Remove the ground screws using a Philips Head Screwdriver
  13. Remove the 3 HEX bolts using a 10mm socket wrench.
    14. Step image
  14. Remove the lower left and right door hinges using a Philips Head Screwdriver. Use a 10mm wrench to remove the 2 flathead screws.

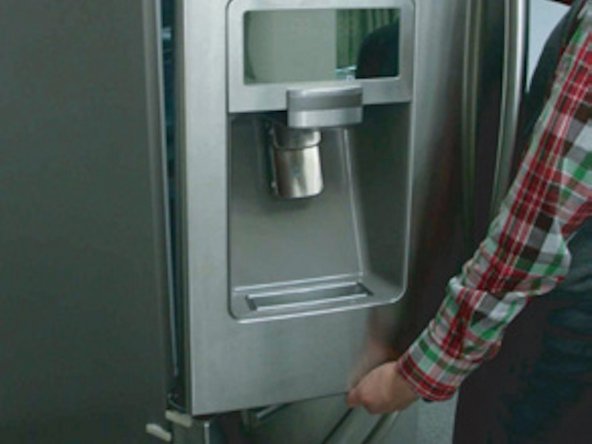

  15. To remove the door, lift it straight up.
    16. Step image Step image
