1992-1999 BMW 3 Series Front Seats Replacement

ID: 170881

Description: This guide shows the process of replacing BMW...

Steps:

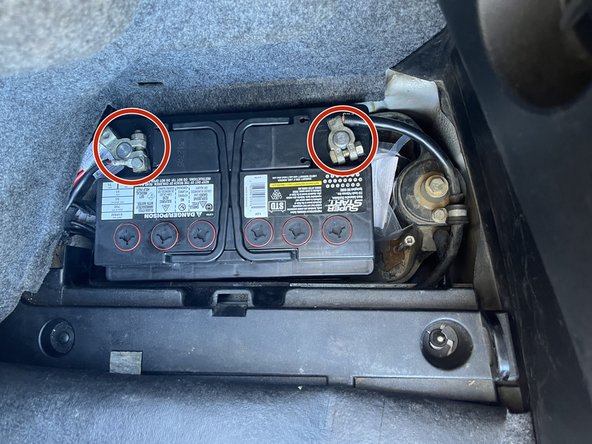

1. Loosen the 13mm nuts on each battery terminal.
2. Remove both the positive and negative terminals.

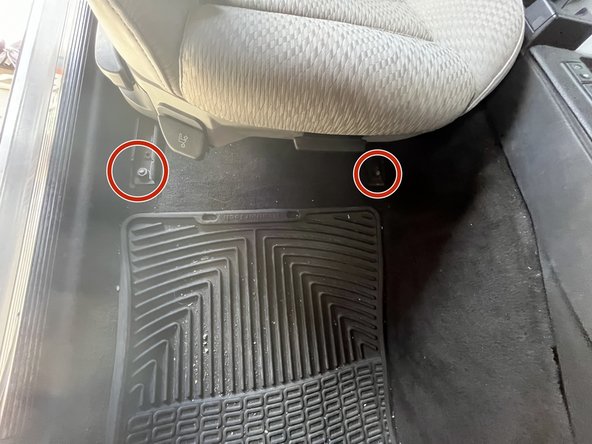

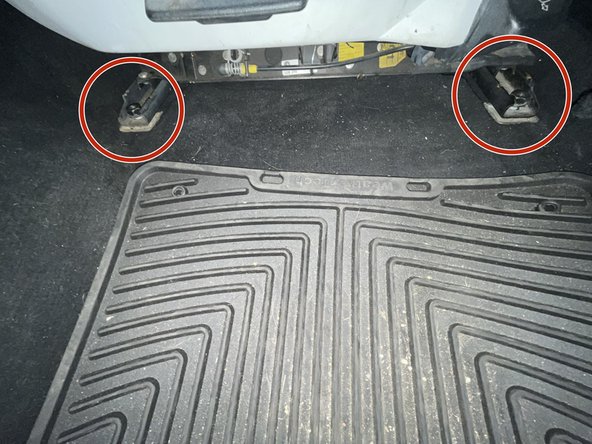

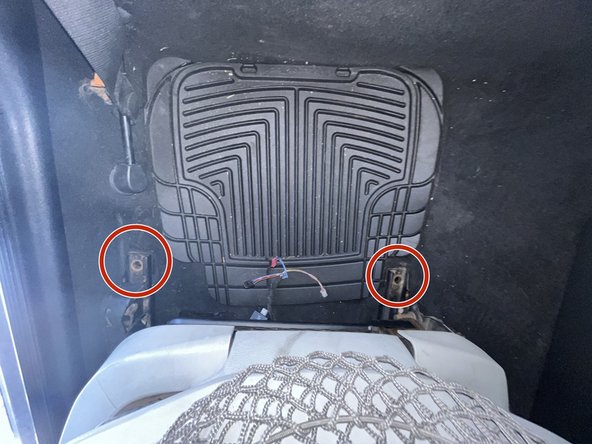

3. Remove the two 15mm nuts in the front and two 15mm bolts in the rear of the driver's seat.

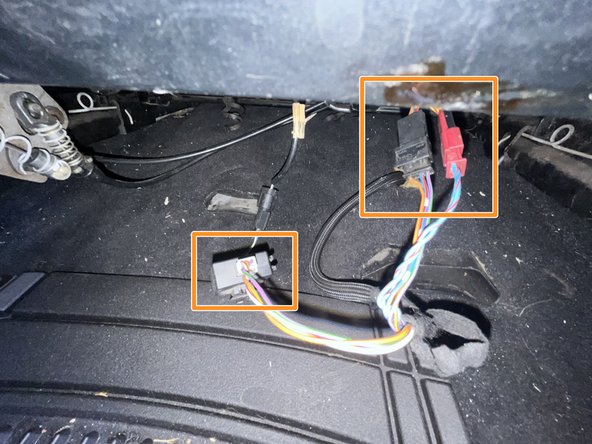

4. Remove the two wire connections underneath the rear of the driver's seat.

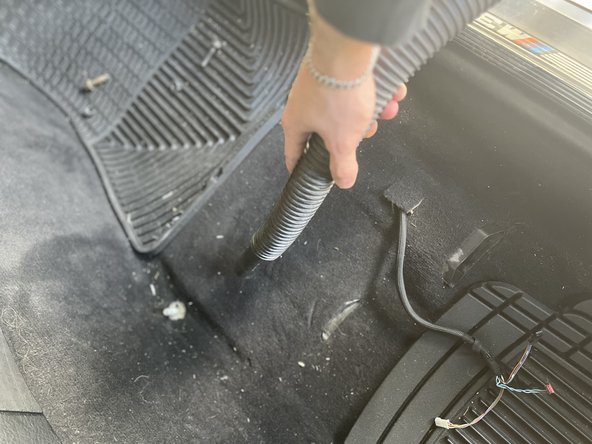

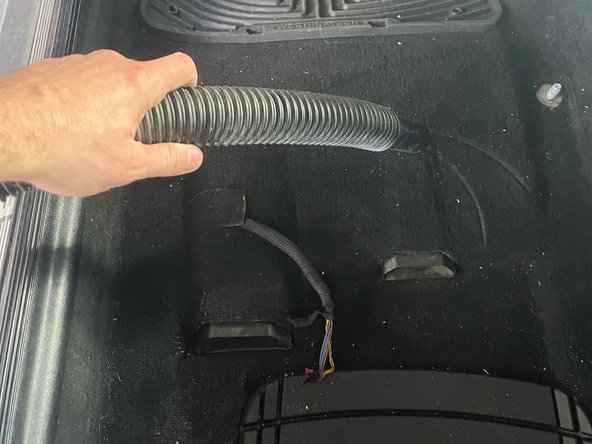

5. Remove the seat from the car and clean the area of debris.

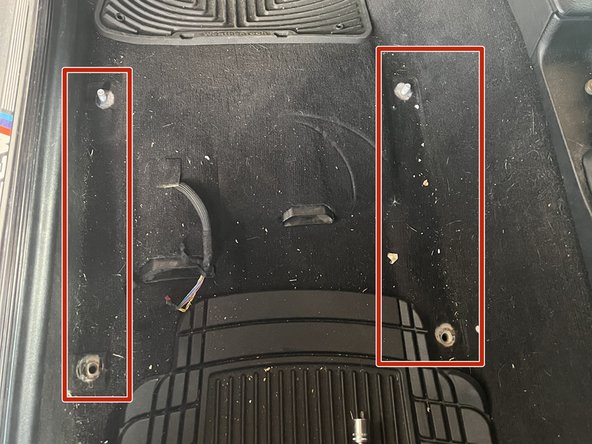

6. This is where the rails for the seat sit so ensure there is no debris or floor mats in this area before reinstalling the seats.

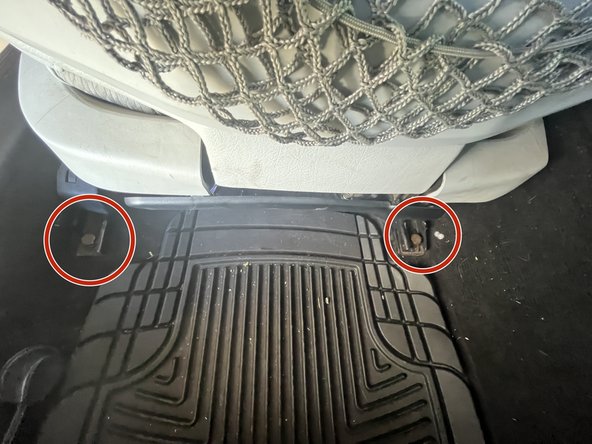

7. Reinstall the driver's seat, and line up the studs in the front with the front holes of the seat rails. Loosely reinstall the two front nuts and the two rear bolts.

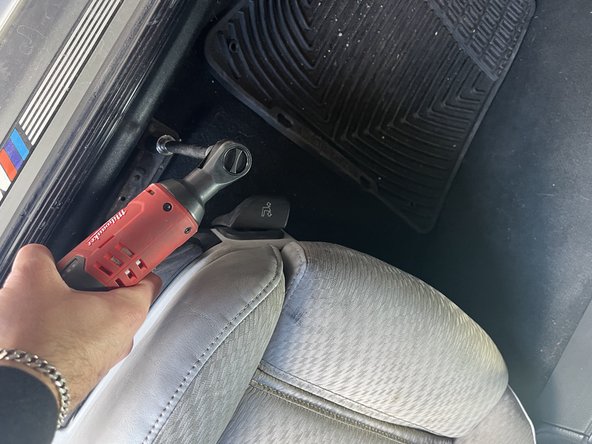

8. Tighten all of the hardware.
9. Reconnect the two electrical connectors under the rear of the seat.

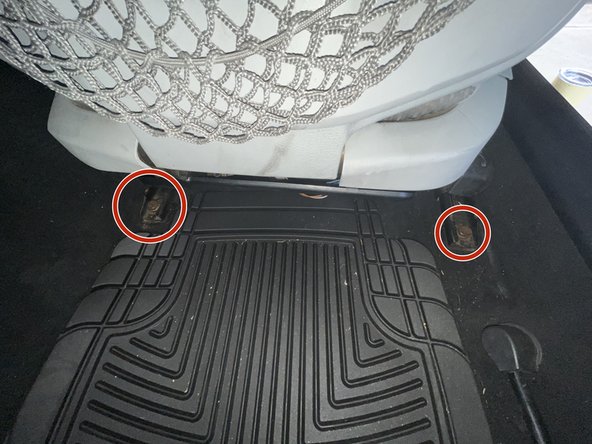

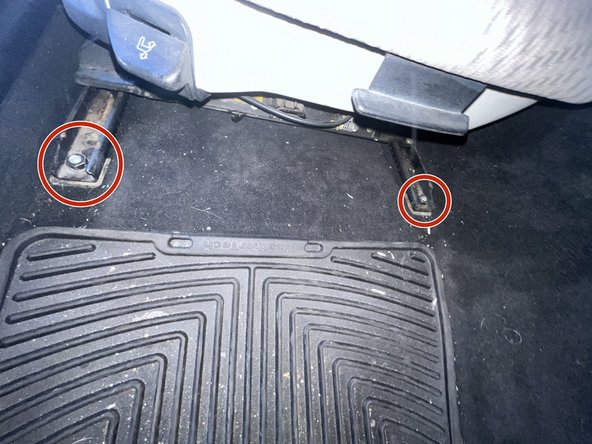

10. Remove the two 15mm nuts in the front and two 15mm bolts in the rear on the passenger seat.

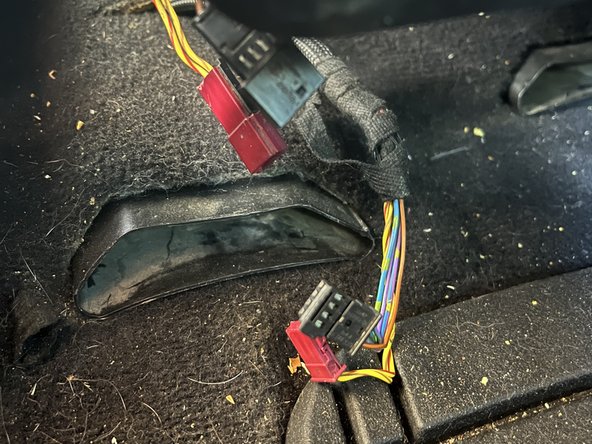

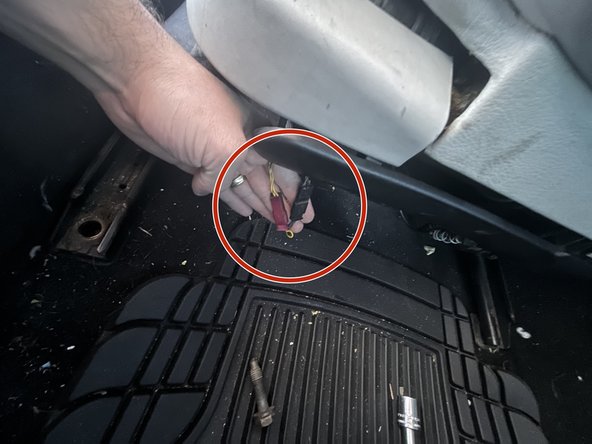

11. Remove the three wire connections underneath the rear of the passenger seat.

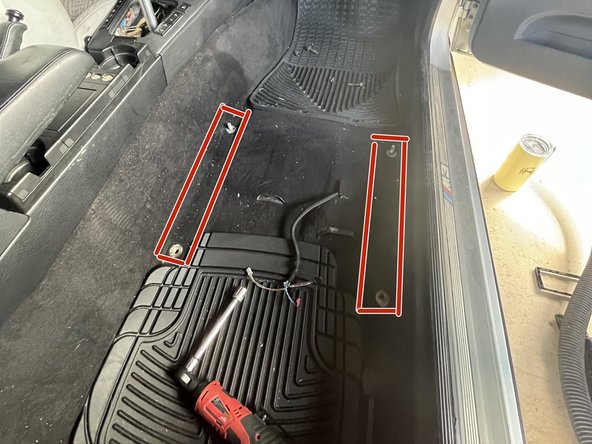

12. Remove the passenger seat from the car and clean the area of debris.
13. This is where the rails for the seat sit so ensure there is no debris or floor mats in this area before reinstalling the seats.

14. Reinstall the passenger seat, and line up the studs in the front with the front holes of the seat rails. Loosely reinstall the two front nuts and the two rear bolts.
15. Tighten all of the hardware.
16. Reconnect the three electrical connectors under the rear of the seat.

17. Reconnect and tighten down the 13mm nuts on the battery terminals in the trunk.
