2015-2017 Ford F-150 Cabin Air Filter Replacement

ID: 170885

Description: Though the repair is shown on a 2016 Ford...

Steps:

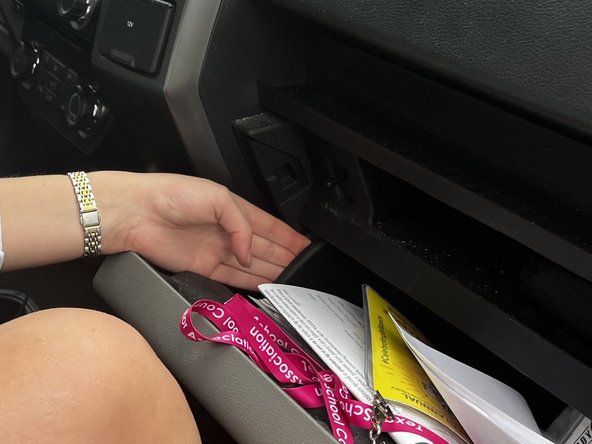

1. Open the glove compartment.
2. Remove everything from inside the glove compartment.

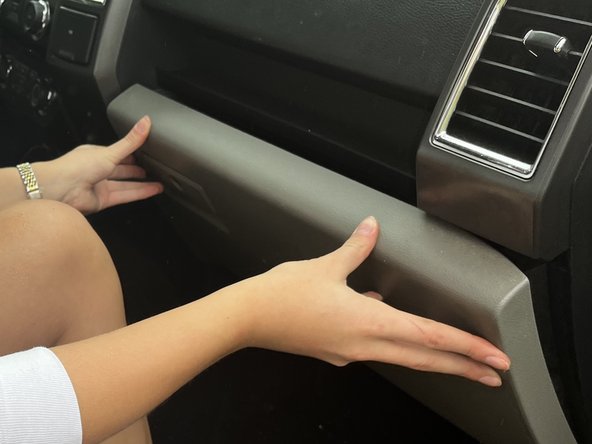

3. Push in on the latches on the sides of the glove compartment to release it from the dashboard.
4. Set it down on the floor of the passenger side footwell.

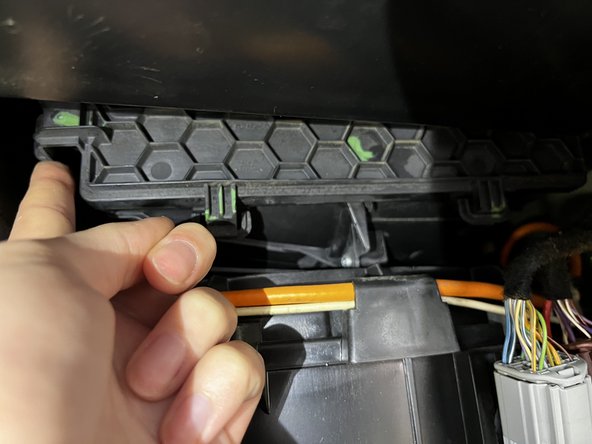

5. Push forward on the two latches of the honeycomb filter cover.

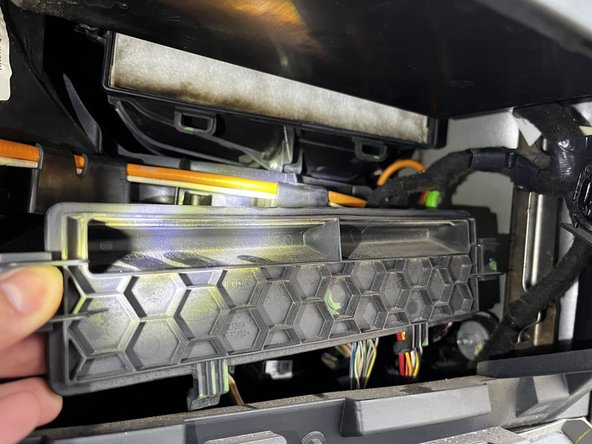

6. Remove the cover.

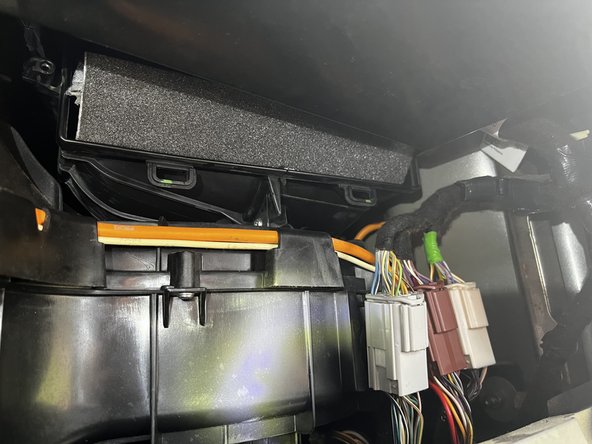

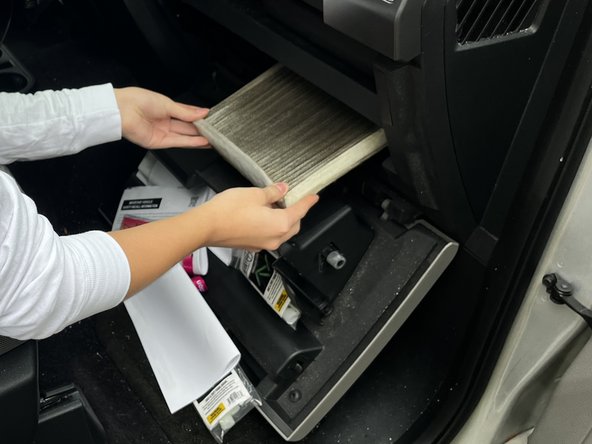

7. Slide the old filter from the compartment.

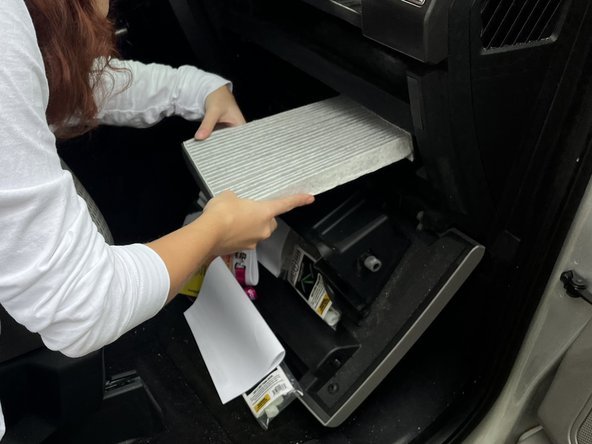

8. Insert the new filter into the compartment with the arrows pointed in the direction indicated.
9. Depending on the brand, your filter may look different.

10. Insert the bottom two latches of the cover into the latch holes.

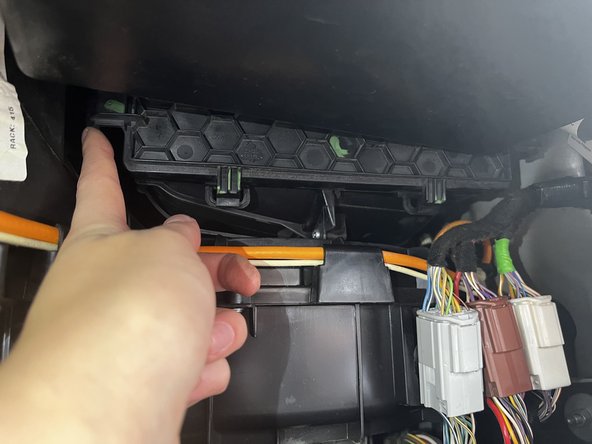

11. Swing the cover towards the filter and press down on the two side latches until they clip into place.

12. Lift the glove compartment up until it is level with the latch holes.
13. Push the latches on the left and right inward until the latches are secured.

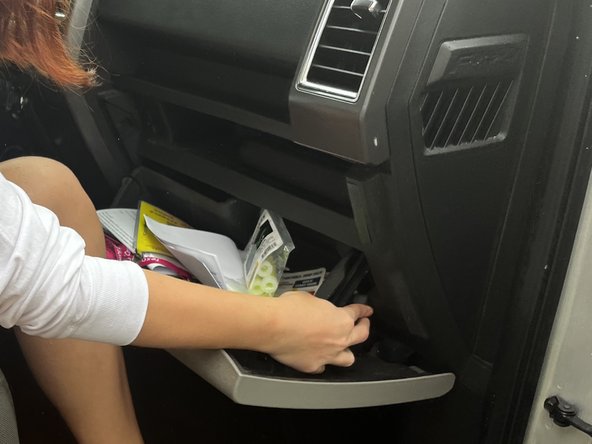

14. Replace all the contents of the glove compartment.
15. Close the glove compartment.
