2018-Present Toyota Corolla Tail Light Bulb Replacement

ID: 170887

Description: Replacing lights in the rear of a Toyota...

Steps:

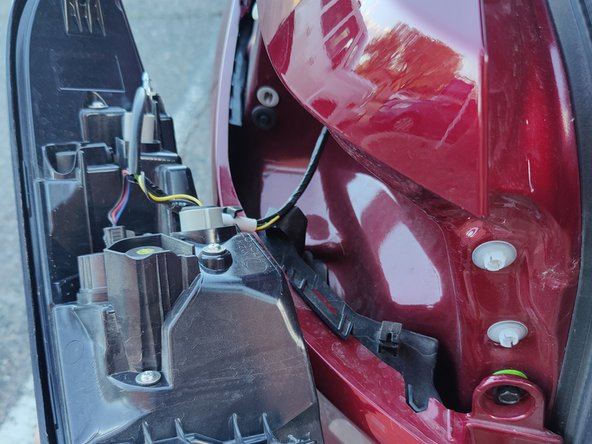

1. The plastic protective cover is held in place by one retention clip at the top and one retention clip at the bottom.
2. Gently use a small pry bar or screw driver to loosen the cover.

3. Locate the two 10mm bolts that secure the bulb housing in place.
4. Using a socket wrench, extension, and 10mm socket, remove both bolts.

5. Remove the bulb housing by pulling directly back from the vehicle.
6. To overcome the retention system, you may use the small pry bar or screwdriver to gently apply force between the bulb housing and vehicle.

7. Twist counter clockwise to loosen the tail light bulb receptacle.
8. In the picture, the two triangles are used to indicate if the housing is loose (triangles not matched up) or tightened (triangles matched up).

9. Pull the bulb receptacle out of the bulb housing.
10. This should not be forced. If resistance is met, the socket may not be turned counter clockwise completely.

11. Remove the non-functioning light bulb by pulling it from the bulb socket.
12. Bulb is held in place by retention clips and may require gently working the bulb back and forth while pulling.
13. Insert the replacement bulb into the socket.
