Mini Muscle Massage Gun

ID: 171135

Description: Mini Muscle Massage Gun,Deep Tissue Percussion...

Steps:

  1. Device Overview
  2. Dimension.
  3. Red :98.30mm
  4. Orange:116mm
  5. Yellow:132.82mm
  6. Diameter dimension
  7. Red: 48.62mm Diameter
  8. Hello 98.8mm Diameter
    9. Step image Step image Step image
  9. To remove and disassemble the shell. Follow these instructions.

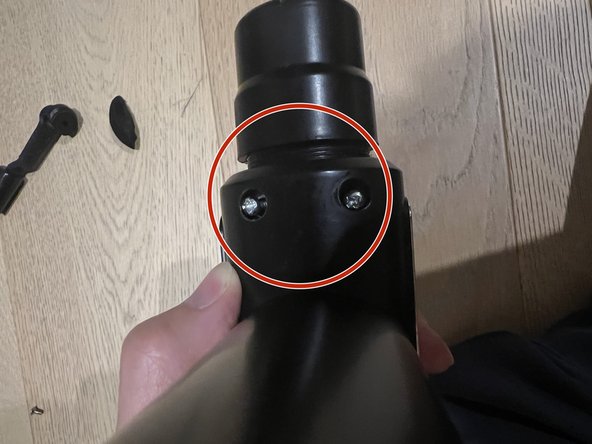

  10. Unscrew all the screw hi lighted in the images.

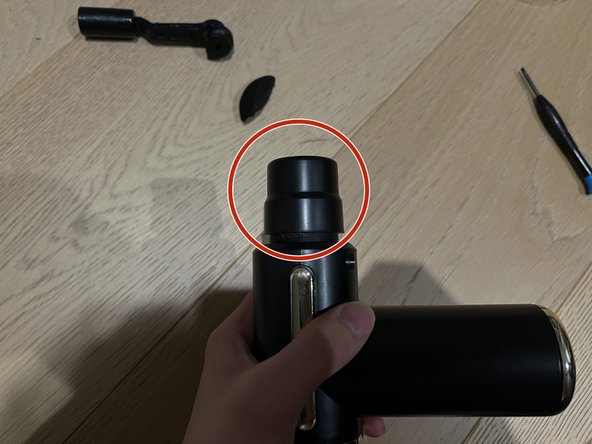

  11. unscrew the cap located at the tip of the device.
    12. Step image Step image Step image
  12. Twist and remove the cap located on the back. hi lighted in red.

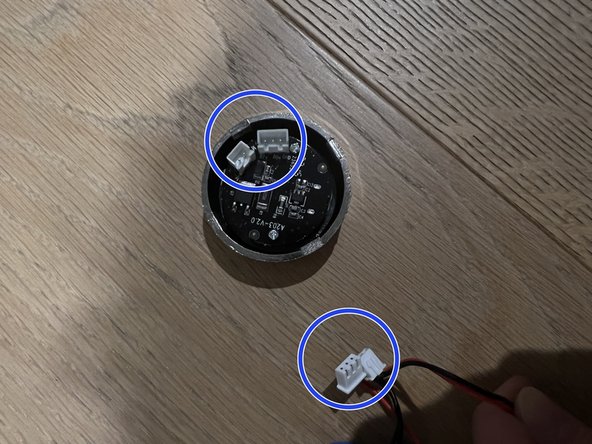

  13. Carefully removed the connector from the PCB

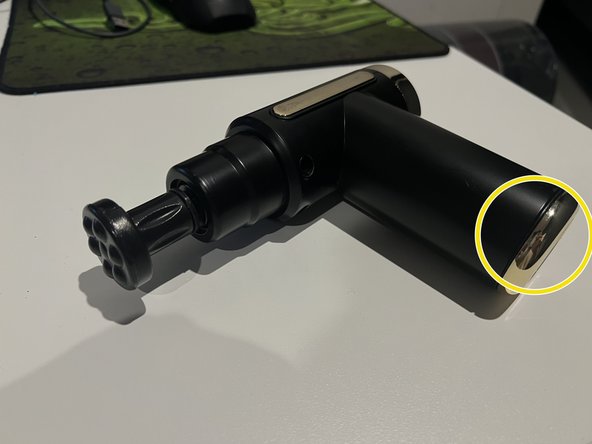

  14. Twist and removed the bottom cap. Hi lighted in yellow
    15. Step image Step image Step image
  15. Battery length.
  16. Orange. 66.64mm
  17. Yellow: 71.28mm.
  18. Battery Diameter.
  19. Blue 42mm
  20. Massage conector
  21. Red:103.13mm
    22. Step image Step image
  22. Remove the top shell from the body.
  23. Using a screw driver removed part hi lighted in red from the motor
  24. Remove screw hi lighted in yellow. Removing this screw will disconnect the motor to the body.
    25. Step image Step image Step image
  25. Device handle shell is weighted at 50g . Made from ABS plastic. Injection mold

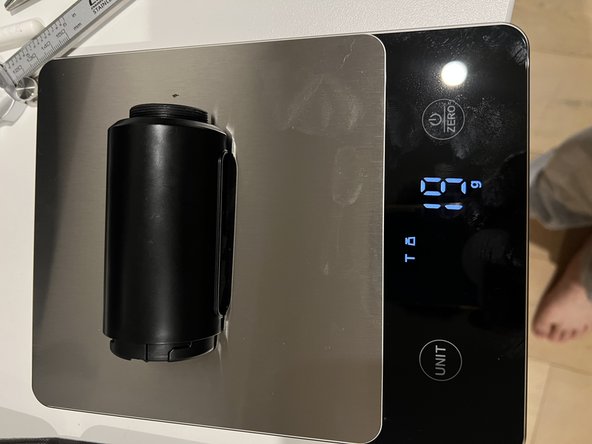

  26. Top shell is weighted at 19g. Made from ABS plastic

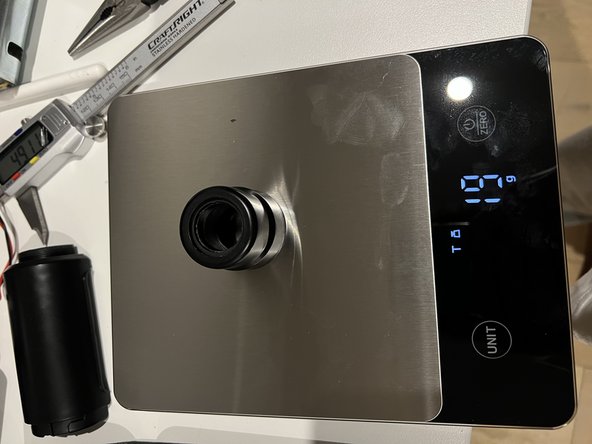

  27. The tip which is used to hold the shell parts together is weighted at 19g. Made from ABS plastic
    28. Step image Step image Step image
  28. Back cap. This include the PCB. is weighted at 14g. Made from ABS plastic.
  29. Bottom cap is weighted at 7g. Made from ABS plastic
  30. Decoration parts. Non functional weighted at 3g.
    31. Step image Step image Step image
  31. Battery. Weighted at 72g. use to power the devic. 1800mAh lithium battery

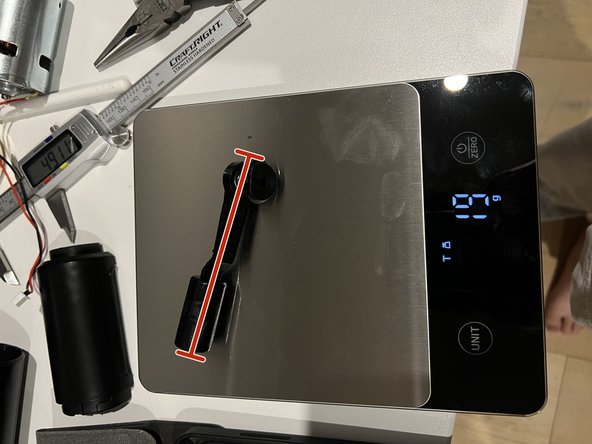

  32. Part connected to the device motor. Use as a connect to various massager head. Weighted at 19g.
  33. Device motor. Weighted at 246g.
    34. Step image Step image Step image
  34. Red: Nylon: injection moulded
  35. Blue: Rubber: injection moulded
  36. Yellow: Eva foam:
    37. Step image
  37. Device design is quite simple which encourage repairability.
  38. most part found in the device and be easily replace by purchasing them online
  39. 1800mAh high-quality rechargeable lithium battery can be easily replaced online.
  40. 30W high-torque motor can also be replace. Purchased online. https://www.hisgifts.com.au/products/sta...
  41. Any broken parts of the shell can easily be fixed with 3d printing.
  42. most screw can also be found online
    43. Step image
