2016 Dodge Grand Caravan Air Filter Replacement

ID: 173786

Description:

Steps:

1. Open the glove box and empty its contents.

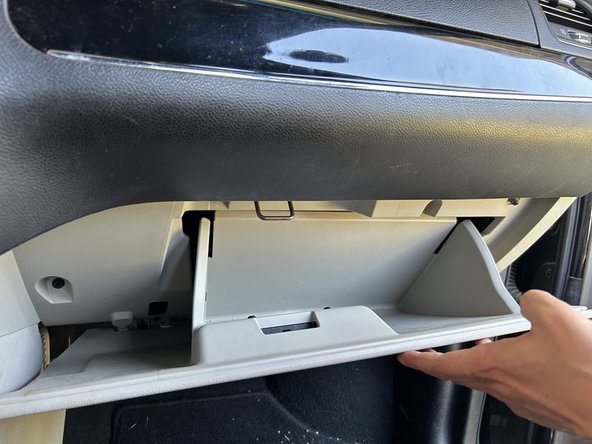

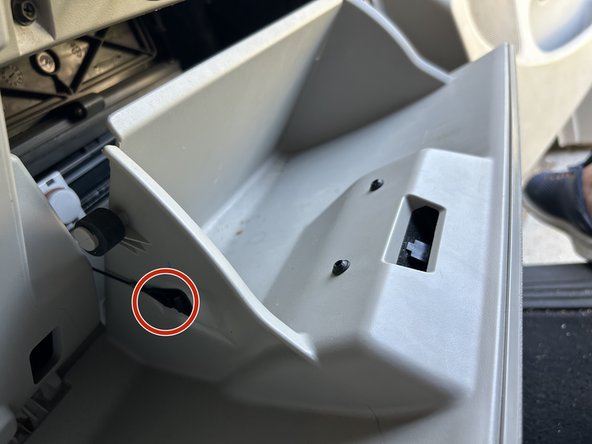

2. To access the cabin air filter, you need to drop the glove box door. Look for the side tabs or stoppers on both sides of the glove box.

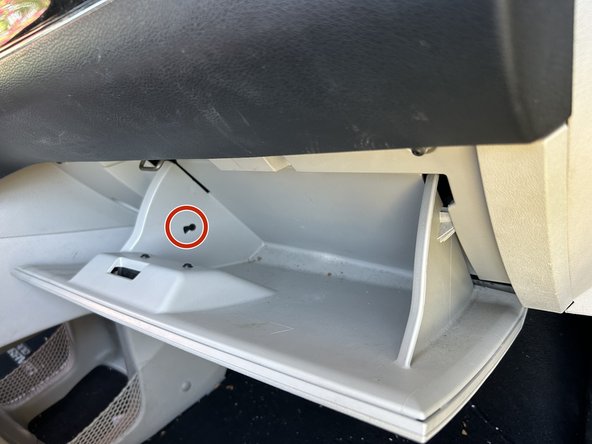

3. Gently push in on both sides of the glove box to release the stoppers and allow the glove box to drop down further.

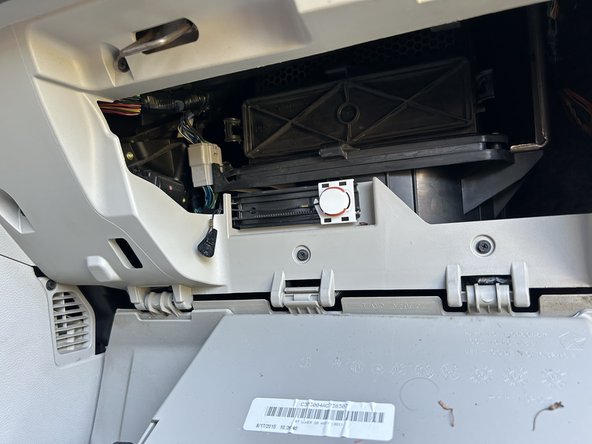

4. Once the glove box is lowered, you should see a rectangular cover behind it. This is the cabin air filter cover.

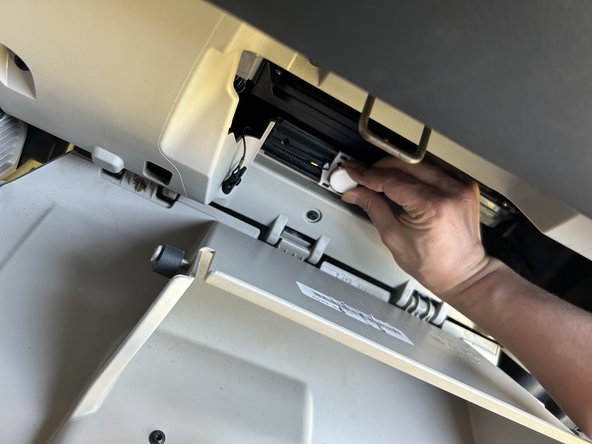

5. The cover has clips holding it in place. Gently unclip the cover.

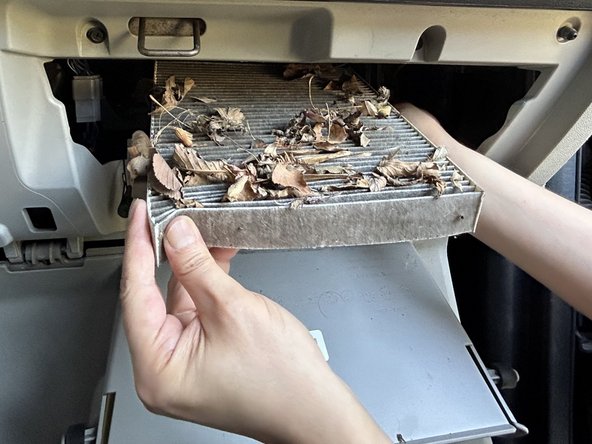

6. Pull out the old cabin air filter.

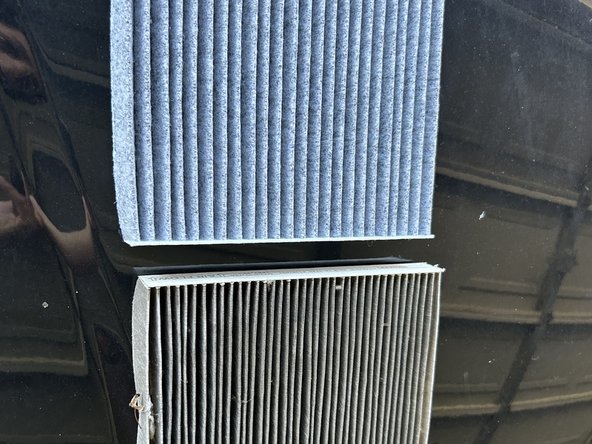

7. To install the new one properly, note the filter's orientation (airflow direction).

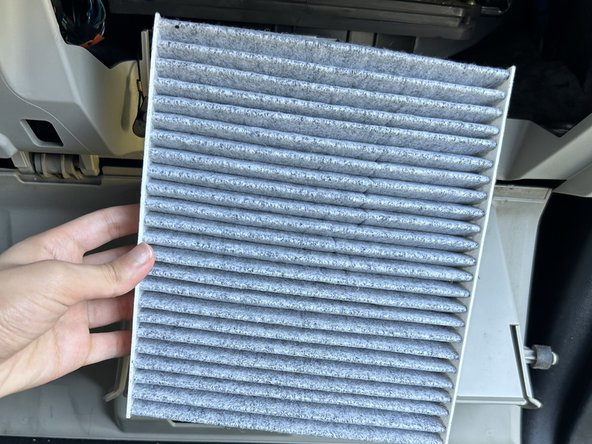

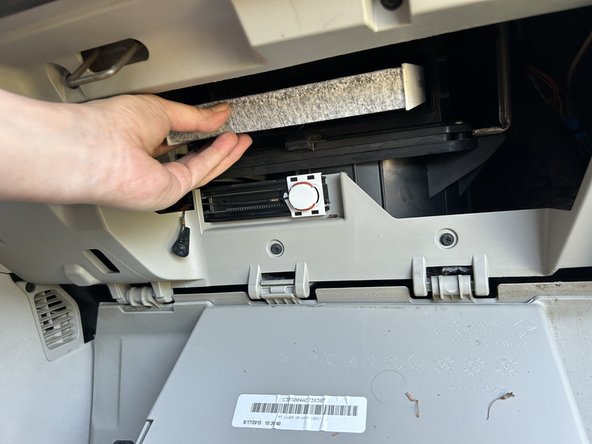

8. Insert the new cabin air filter into the compartment, ensuring it is oriented correctly according to the airflow direction indicated on the filter.

9. Replace the cabin air filter cover and secure it with clips.
10. Lift the glove box back into position and reconnect the dampener arm if applicable.
11. Push in on the sides of the glove box to re-engage the stoppers.
