How to open an Aneng AN8008

ID: 173841

Description: This guide provides detailed instructions to...

Steps:

1. Place the multimeter on its front.
2. Flip up the kickstand.

3. Use a PH1 screwdriver to unscrew the single screw holding the battery cover and kickstand.

4. Remove the battery cover and kickstand.

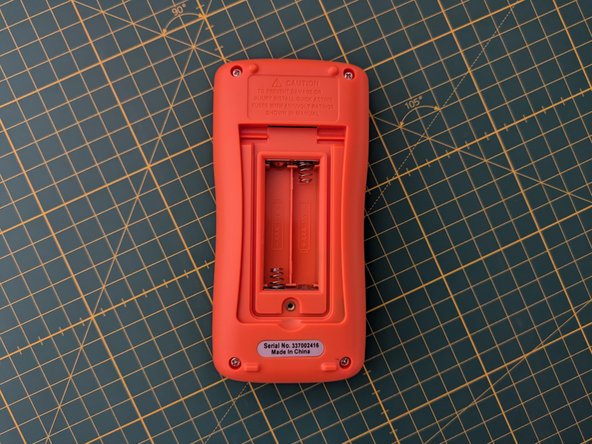

5. Remove the batteries, if present.

6. Use a PH1 screwdriver to unscrew the four screws holding the back cover.

7. Insert a pick into the top gap between the backshell and front cover.
8. Partly leverage the front cover away from the backshell.

9. Insert a pick into the bottom gap between the backshell and front cover.

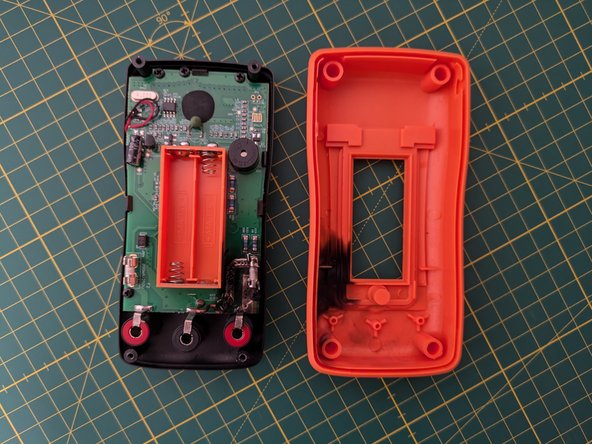

10. Fully leverage the front cover out of the backshell.
