LG Refrigerator Fresh Food Thermistor Test and Replacement

ID: 174371

Description: Use this guide to test your LG refrigerator's...

Steps:

  1. Unplug your refrigerator before you begin your repair.
  2. If you are testing or repairing the following items, you may also need to shut off and disconnect the water supply:
  3. Condenser fan motor
  4. Compressor motor and thermal overload device
  5. Water supply valve assembly
    6. Step image
  6. Open both refrigerator doors fully.
    7. Step image Step image Step image
  7. Lift up the front edge of the shelf to release it.
  8. Unhook the shelf and remove it.
  9. Repeat the last two steps for each shelf you wish to remove.
    10. Step image Step image Step image
  10. Use a Phillips screwdriver to remove the screws securing the control board cover.
    11. Step image
  11. Tilt the top edge of the cover toward you and lift it off.
    12. Step image Step image Step image

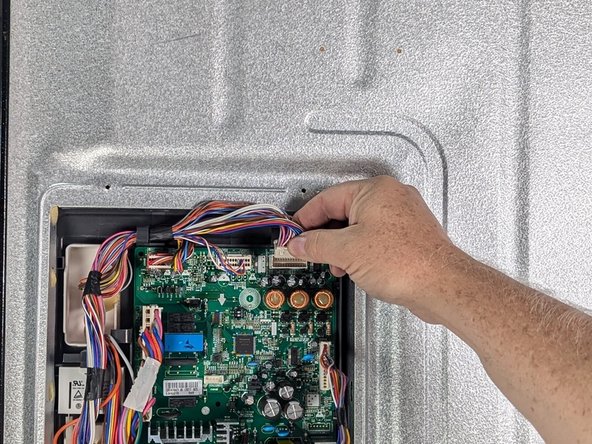

  12. Locate connector 7 (Con 7) on the control board
    13. Step image
  13. Release the wiring harness for Connector 7 from the harness hooks.

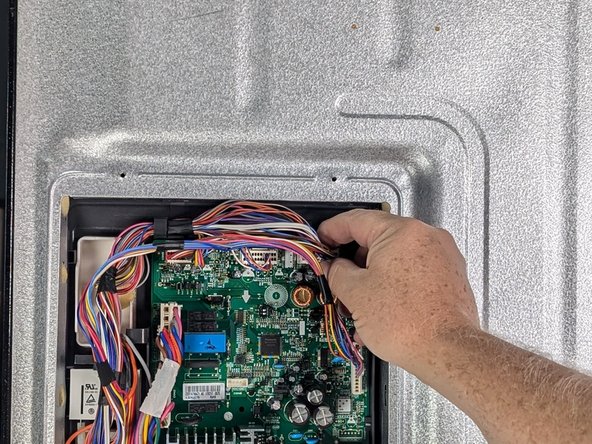

  14. Disconnect Con 7.
    15. Step image Step image Step image
  15. Measure the resistance between the two white wires as shown in this document.
  16. Use a multimeter set to the ohms (Ω) setting.
  17. Gently put the probes into the connector holes that correspond to the white wires. Alternatively, you can use sharp insulation piercing probes on the white wires.
  18. Measure the resistance of the thermistor.
  19. If the measurement is neither open (OL) nor shorted (less than 1Ω), measure the temperature in the fresh food compartment. Compare these figures to this chart. If it isn't in spec, go to the next step.
  20. The resistance of the thermistor should be about 11kΩ at room temperature.
    21. Step image

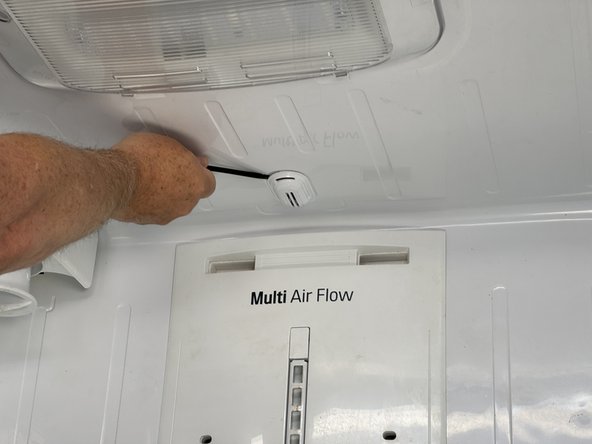

  21. Pry down the thermistor grille/holder with a spudger or small flat-blade screwdriver.
    22. Step image Step image Step image

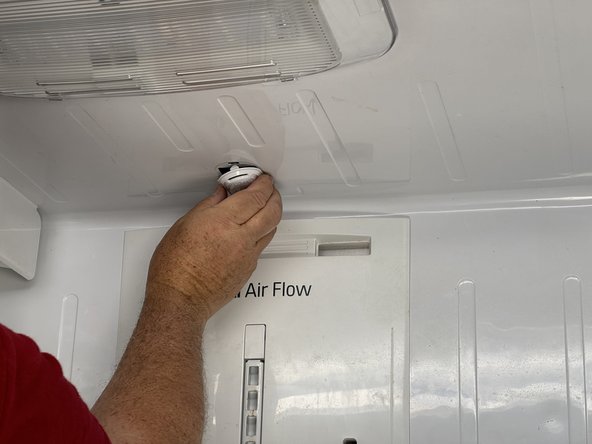

  22. Gently use a pair of long-nose pliers to pull the thermistor down from its holder.
  23. Be very careful with this action, as the leads to the thermistor are short and can be easily damaged.
    24. Step image Step image Step image

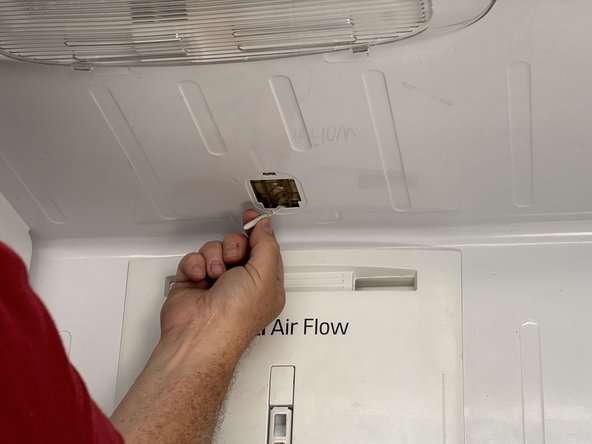

  24. If the measurement at the control board was out of spec or showed open (infinite resistance) or short (near zero resistance), check the resistance at the thermistor itself.

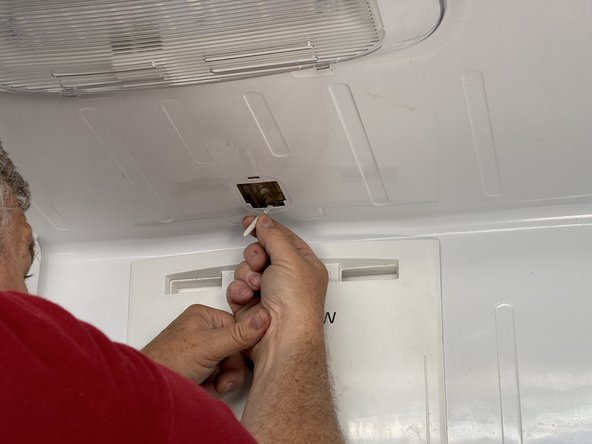

  25. Disconnect the thermistor from the wiring harness. You will likely have to cut one or both of the leads, unless there is a connector near the thermistor.
  26. The resistance of the thermistor should be about 11kΩ at room temperature.
  27. If the thermistor tests okay, the problem is in the wiring harness. You can inspect the accessible parts of the harness for faults. If the fault is not accessible, the wiring harness is foamed in and can't be repaired. Recycle the refrigerator.
