Sony WM-FX123 Belt Replacement

ID: 174373

Description: If your Sony WM-FX123 is having issues playing...

Steps:

  1. Remove the rear cover by following steps 1-3 in the disassembly guide.
    2. Step image
  2. Carefully remove the belt from around the marked wheels. If it has turned to goo you may need to clean up the residue, which can be done with isopropyl alcohol, cotton buds and/or a toothpick.
    3. Step image
  3. Install the new belt around the wheels as pictured. Try to avoid twisting the belt as you install it or you may have issues later.
    4. Step image
  4. Reinstall the rear cover by following steps 3-1 of the disassembly guide.

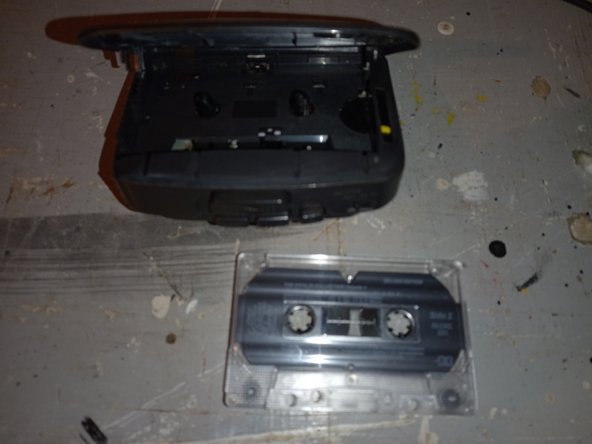

  5. Once you have reassembled the unit, pop a cassette and some batteries in and give it a test!
    6. Step image Step image
